Aquacomputer pump adaptor for D5 pumps, compatible with aqualis, G1/4
- Producent: Aqua Computer
- Kod producenta: 41094
- Kod EAN:
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 8-14 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

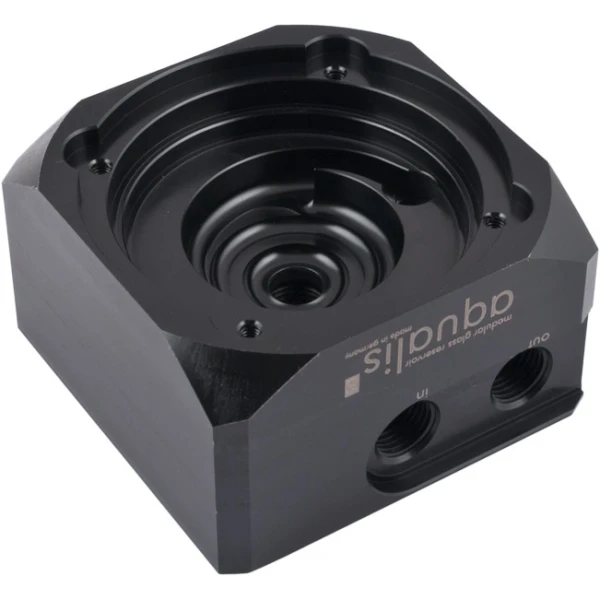

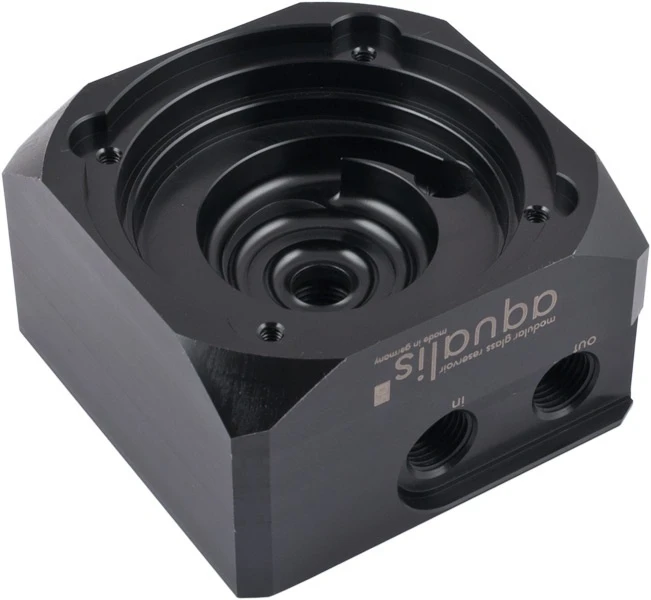

The Aqua Computer pump adapter for D5 pumps is manufactured from durable Delrin and offers flexible mounting options. The adapter can either be used as a stand-alone pump adapter or in combination with a compatible aqualis series reservoir. A mounting bracket made from stainless steel is included in delivery, an optional decoupling set can also be used (not included in delivery). For mounting a D5 series pump, an anodized aluminum clamp ring and a suitable o-ring gasket are provided.

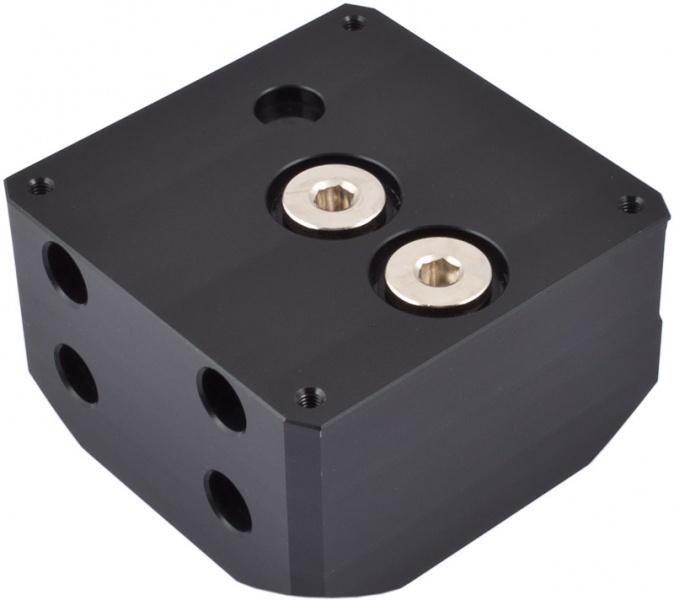

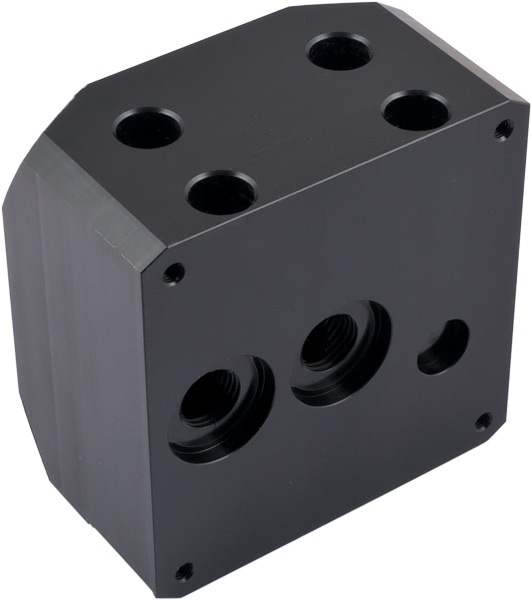

When used without an aqualis base series reservoir, G1/4 threads for fittings can be used on the top and side of the pump adapter. Unused threads can be sealed with two G1/4 sealing screws supplied with the pump adapter.
When used with an aqualis base series reservoir, pump adapter and reservoir form a virtually seamless unit. The sockets at the base of the reservoir slide into form-fitting receptables of the pump adapter and the gaskets on the sockets establish a watertight seal. When used with a reservoir, only the threads on the side of the pump adapter are accessible to connect the water loop. Please note that for use with aqualis series reservoirs, another version of this pump adapter with integrated fill level sensor (art. no. 41095) is also available. The adapter sold here (art. no. 41094) does not feature a fill level sensor!

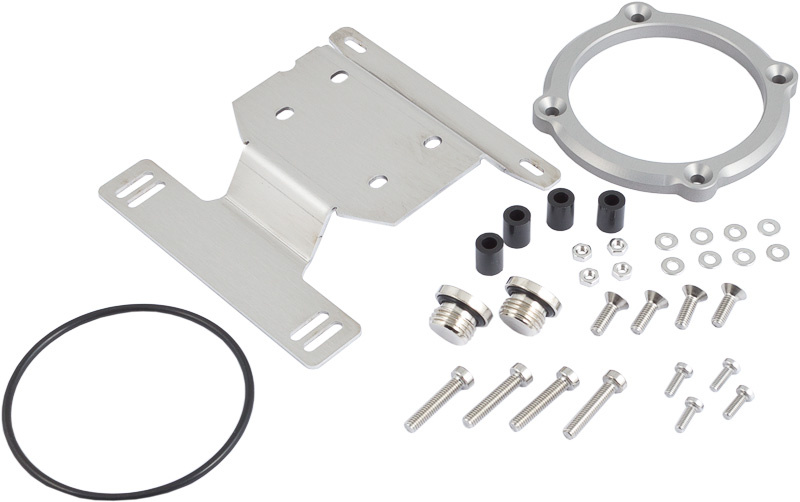

Scope of delivery:
Pump adapter
Clamp ring
O-ring gasket
Stainless steel bracket
Mounting material
Two G1/4 sealing screws
Compatible with:
Aqua Computer D5 pump motor with speed signal (art. no. 41091)
Aqua Computer D5 pump motor with USB and aquabus interface (art. no. 41093)
Aqua Computer D5 pump motor with PWM input and speed signal (art. no. 41105)
Aqua Computer D5 NEXT (art. no. 41118)
Laing D5 series pumps and OEM versions identical in construction
aqualis base for pump adapters (art. no. 34044)
aqualis base for pump adapters with nano coating (art. no. 34045)
aqualis base for pump adapters 450 ml with fountain effect (art. no. 34046)
aqualis base for pump adapters 450 ml with fountain effect and nano coating (art. no. 34047)
aqualis base for pump adapters 880 ml (art. no. 34051)
aqualis base for pump adapters 880 ml with fountain effect (art. no. 34052)
aqualis base for pump adapters 880 ml with fountain effect and nano coating (art. no. 34074)
Please note:
Pump, fittings and reservoir are not included in delivery!
When used without an aqualis base series reservoir, G1/4 threads for fittings can be used on the top and side of the pump adapter. Unused threads can be sealed with two G1/4 sealing screws supplied with the pump adapter.
When used with an aqualis base series reservoir, pump adapter and reservoir form a virtually seamless unit. The sockets at the base of the reservoir slide into form-fitting receptables of the pump adapter and the gaskets on the sockets establish a watertight seal. When used with a reservoir, only the threads on the side of the pump adapter are accessible to connect the water loop. Please note that for use with aqualis series reservoirs, another version of this pump adapter with integrated fill level sensor (art. no. 41095) is also available. The adapter sold here (art. no. 41094) does not feature a fill level sensor!
Scope of delivery:
Pump adapter
Clamp ring
O-ring gasket
Stainless steel bracket
Mounting material
Two G1/4 sealing screws
Compatible with:
Aqua Computer D5 pump motor with speed signal (art. no. 41091)
Aqua Computer D5 pump motor with USB and aquabus interface (art. no. 41093)
Aqua Computer D5 pump motor with PWM input and speed signal (art. no. 41105)
Aqua Computer D5 NEXT (art. no. 41118)
Laing D5 series pumps and OEM versions identical in construction
aqualis base for pump adapters (art. no. 34044)
aqualis base for pump adapters with nano coating (art. no. 34045)
aqualis base for pump adapters 450 ml with fountain effect (art. no. 34046)
aqualis base for pump adapters 450 ml with fountain effect and nano coating (art. no. 34047)
aqualis base for pump adapters 880 ml (art. no. 34051)
aqualis base for pump adapters 880 ml with fountain effect (art. no. 34052)
aqualis base for pump adapters 880 ml with fountain effect and nano coating (art. no. 34074)
Please note:
Pump, fittings and reservoir are not included in delivery!
