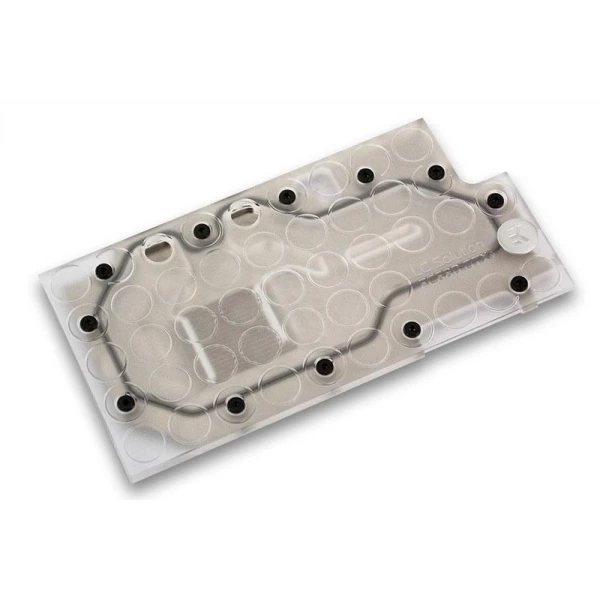

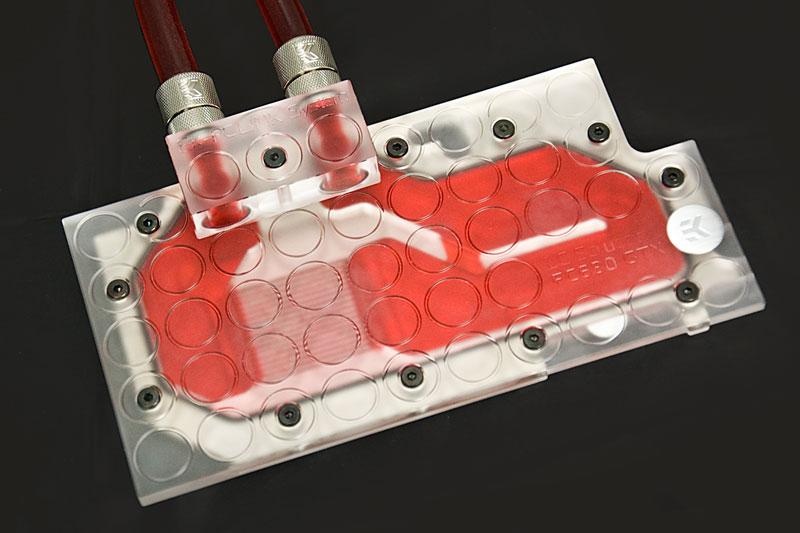

EK Water Blocks EK-FC680 GTX+ - Nickel

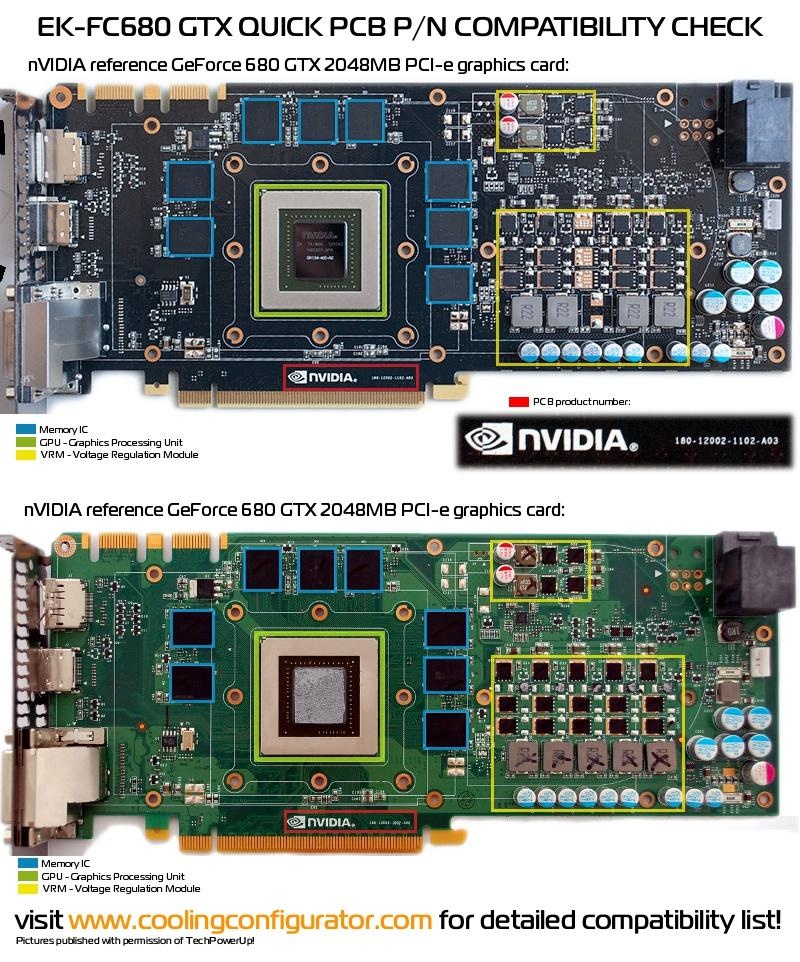

EK-FC680 GTX+ is a high performance full-cover water block for nVidia reference design GeForce GTX 680- as well as some GTX 770 series graphics cards. Please check EK Cooling Configurator online compatibility system for detailed compatibility list!

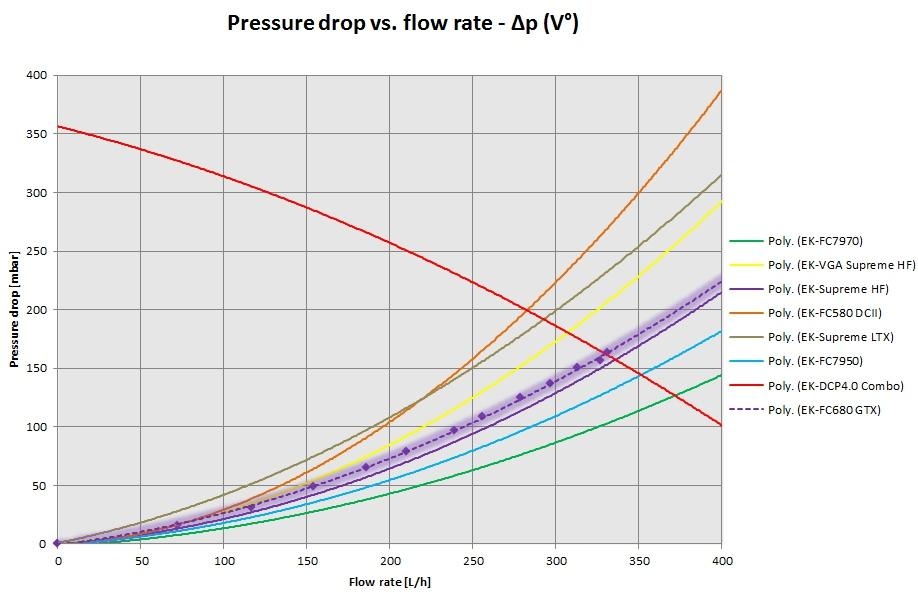

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC680 GTX+ water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

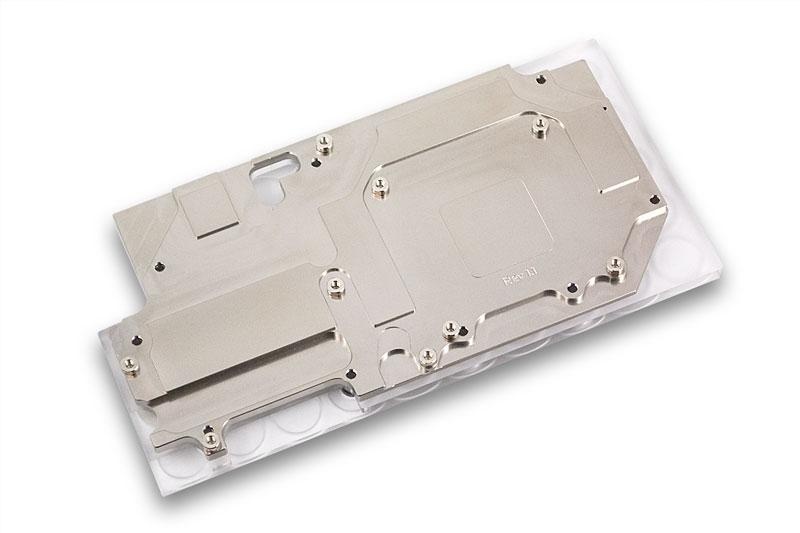

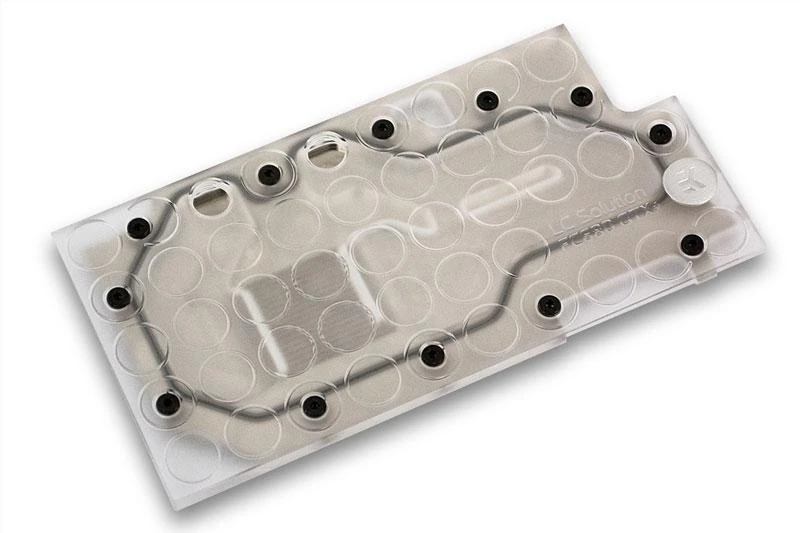

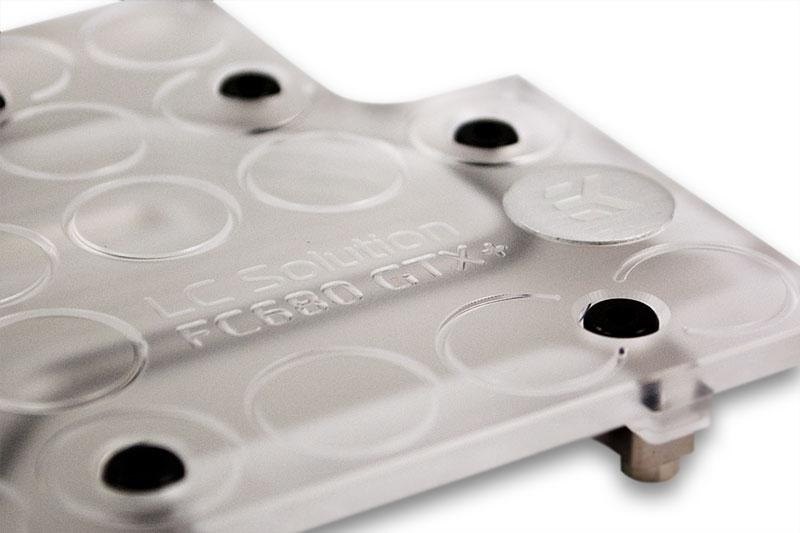

Base is made of nickel plated electrolytic copper while the top is made of quality cast, satin finish acrylic material. The sealing is performed by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.



EKWB recommends the purchase of aesthetic retention backplate (EK-FC680 GTX CSQ Backplate - Black) which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.

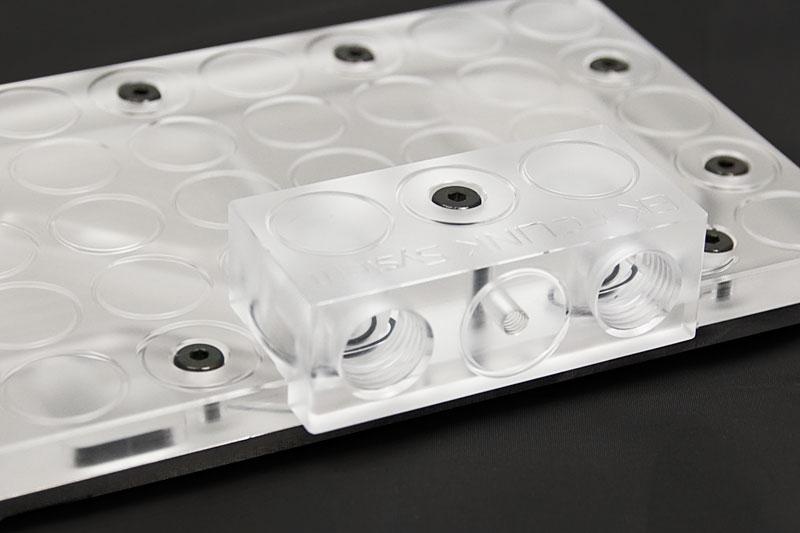

Any G1/4" threaded opening can be used as inlet or outlet.

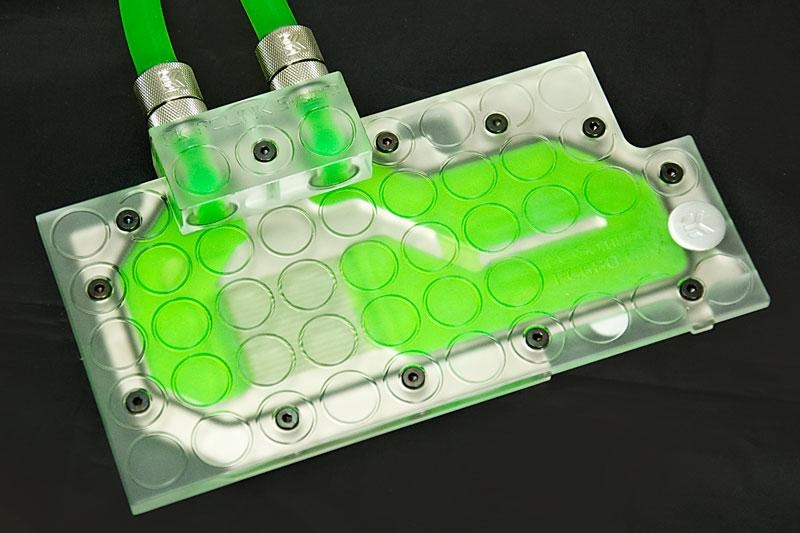

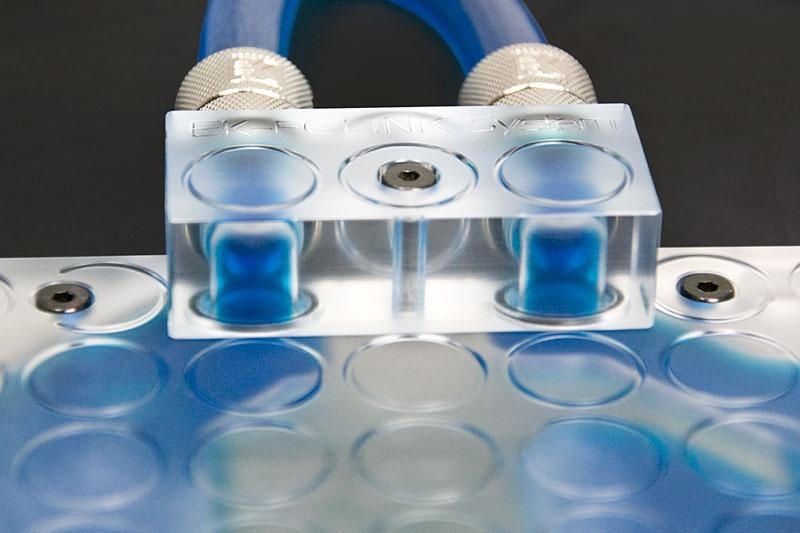

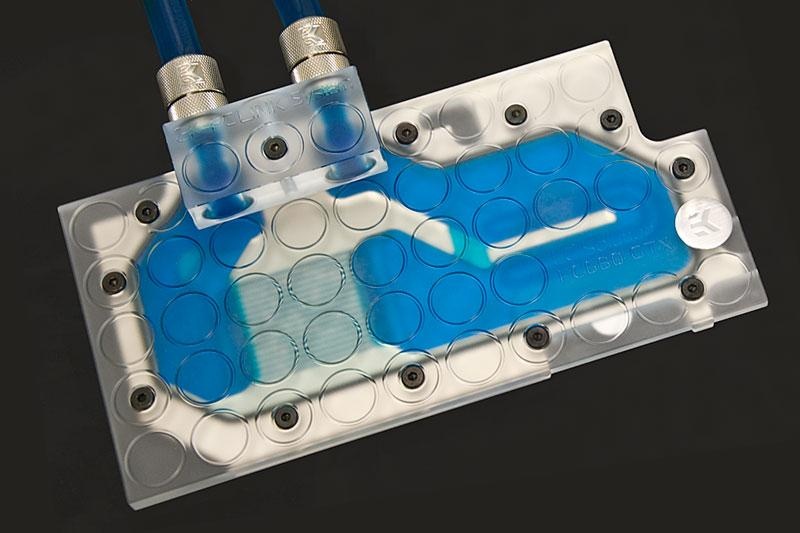

Up to four EK-FC680 GTX+ series  series water blocks can be interconnected with EK-FC Bridge & Link CSQ system. The EK-FC Link is already enclosed.



Enclosed:

- EK-FC680 GTX+ series water block with FC Link

- mounting mechanism with screw-in brass standoffs

- thermal pads

- thermal grease EK-TIM Ectotherm (1g)



Made in Slovenia - Europe!
