Thermal Grizzly Intel Mycro Direct-Die Pro RGB V1 CPU Water Cooler

Thermal Grizzly Intel Mycro Direct-Die Pro RGB V1 CPU Water Cooler

Brak ocen

Producent: Thermal Grizzly
Kod producenta: TG-MY-DD-P-RGB-i-V1
Kod EAN: 4260711991011
Gwarancja: 24 miesiące

Dostępność:

Dostępny

Dostępna ilość:

NOWOŚĆ

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

Intel Mycro Direct-Die Pro

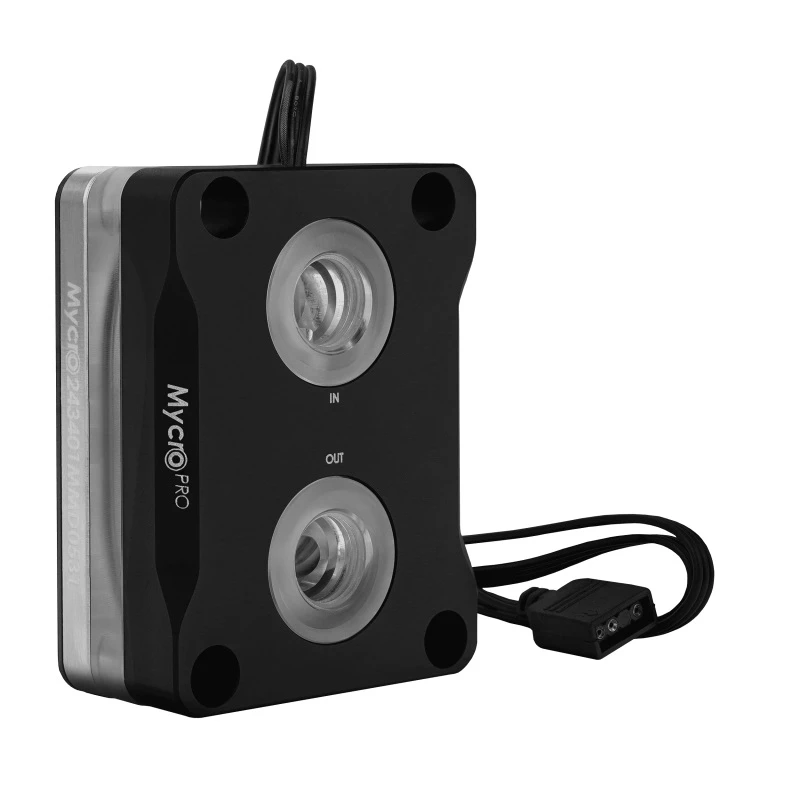

The Intel Mycro Direct-Die Pro RGB V1 is a water cooler optimized for the Intel LGA1700 platform with a nickel-plated copper base plate and RGB lighting. Compared to the standard version, the Pro version offers more cooling fins and a lower flow resistance. The direct-die cooler rests directly on the chip of the delidded Intel CPU. An up-to-date list of all verified compatible processors is available online.

Product information "Intel Mycro Direct-Die Pro - RGB"

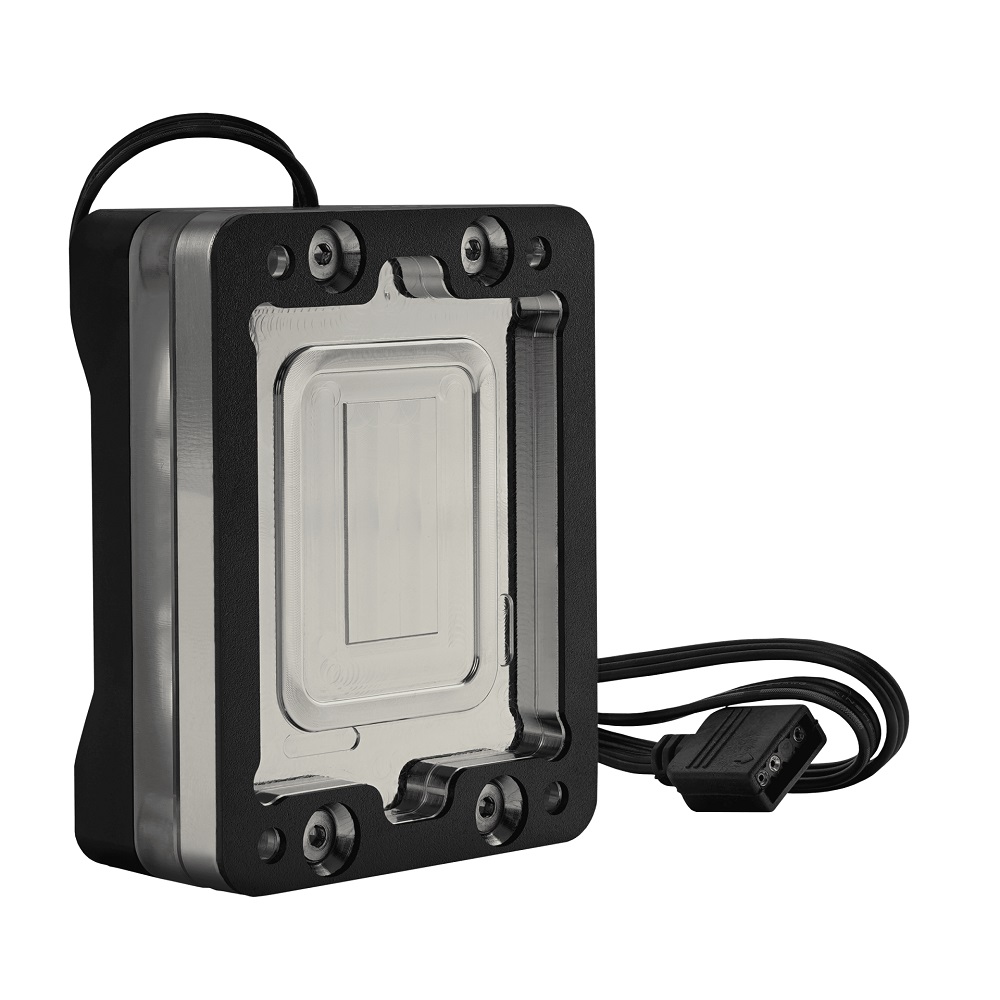

The Intel Mycro Direct-Die Pro RGB V1 is equipped with a jet system on the cooler surface and the cooling channel slot width has been optimized. The coldplate of the cooler is made of nickel-plated copper and is mounted directly on the CPU chip. To do this, the Integrated Loading Mechanism (ILM) of the mainboard is removed and the processor must be delidded. The nickel-plating of the cooler plate creates a barrier layer so that gallium-based liquid metal cannot diffuse into the copper and multiple applications of liquid metal are generally not necessary.

Water cooler for direct-die mounting
Microfin cooler made of nickel-plated copper
Replaces ILM and heatspreader
Acrylic glass and aluminum cover
G1/4-inch connections
CPU compatibility list available online
Only for delidded CPUs! Attention: Loss of warranty!

Between the coldplate and the cover made of anodized aluminium is acrylic glass, which is subjected to a annealing process after milling, which relieves the acrylic glass of internal stresses. This ensures that no stress cracks form in the acrylic glass even after a long period of use, as can occur with tempered acrylic glass. RGB LEDs are located under the aluminum cover, which are controlled via the mainboard via a 3-pin ARGB header (+5V/DATA/GND). The LEDs illuminate the acrylic glass under the lid and the G1/4-inch connections in the lid.

Note on the use of KryoSheet

The Intel Mycro Direct Die Pro RGB V1 has been extensively tested internally in various application scenarios. During development, great emphasis was placed on stable operation of the processor and RAM. In our test series, KryoSheet in combination with the Intel Mycro Direct Die Pro RGB V1 was unable to achieve any significant improvements in terms of temperature and was problematic in terms of contact pressure. For this reason, we cannot recommend thermal pads because their additional thickness has a strong influence on the contact pressure and can therefore impair the function.

Compatibility note

The Intel Mycro Direct-Die Pro RGB V1 is compatible with the following processors:

Intel 12th Gen CPUs
Intel 13th Gen CPUs
Intel 14th Gen CPUs

Attention: Removing the heatspreader ("delidding") of a processor is at your own risk! The manufacturer's warranty expires when the CPU is delidded! Damage caused by delidding the CPU is not covered by the manufacturer's warranty!

Removing the Integrated Loading Mechanism (ILM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!

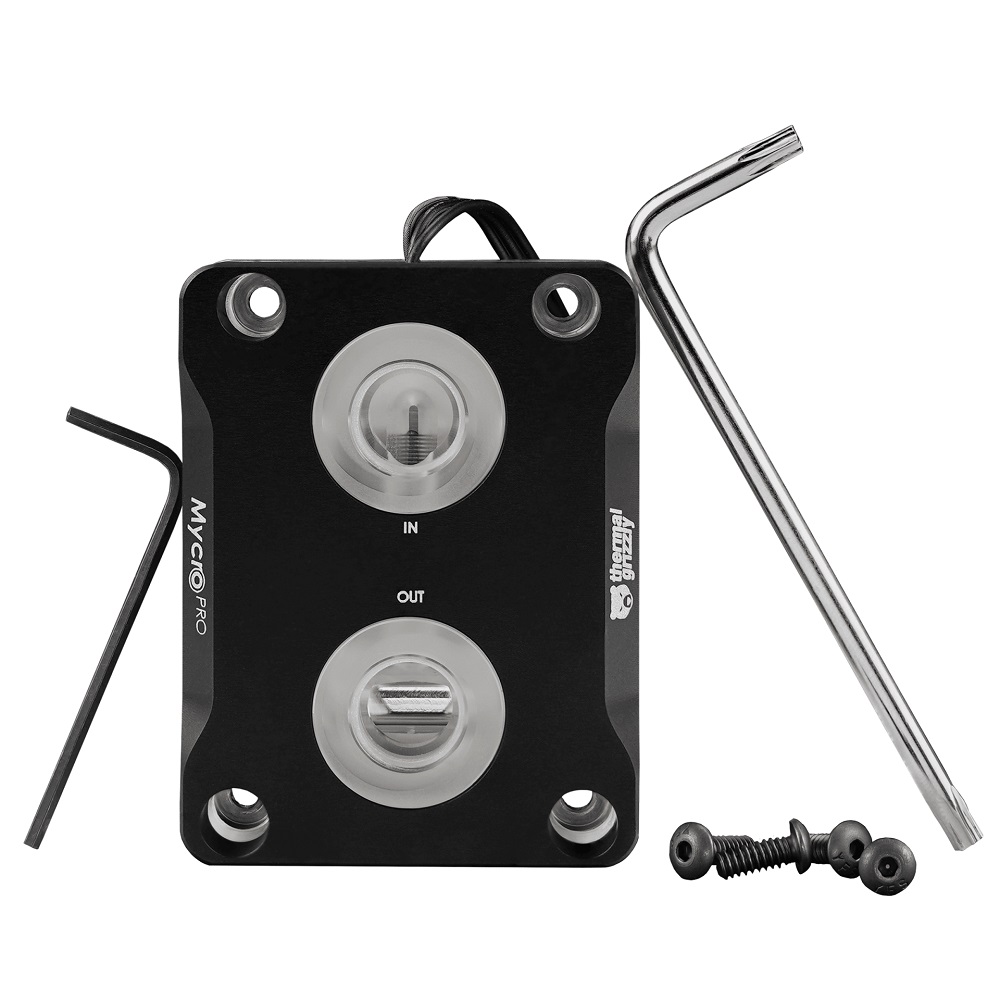

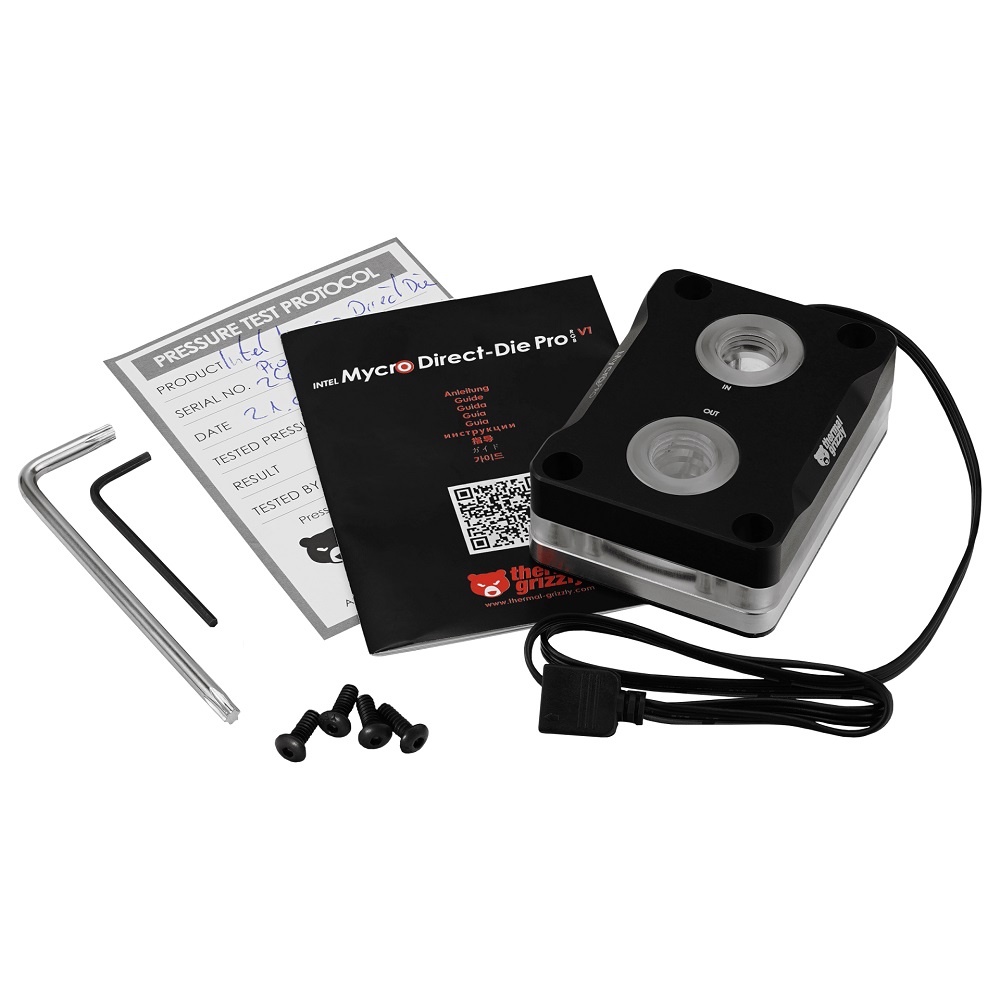

Scope of delivery

1x Intel Mycro Direct-Die Pro RGB V1
1x pressure test protocol to 600 mbar
4x pan head screws UNC thread 3/8"
1x hexagon socket wrench 5/64"
1x Torx T20 angle wrench
