EK Water Blocks EK-Quantum Kinetic³ FLT 92 D5 PWM D-RGB - Plexi

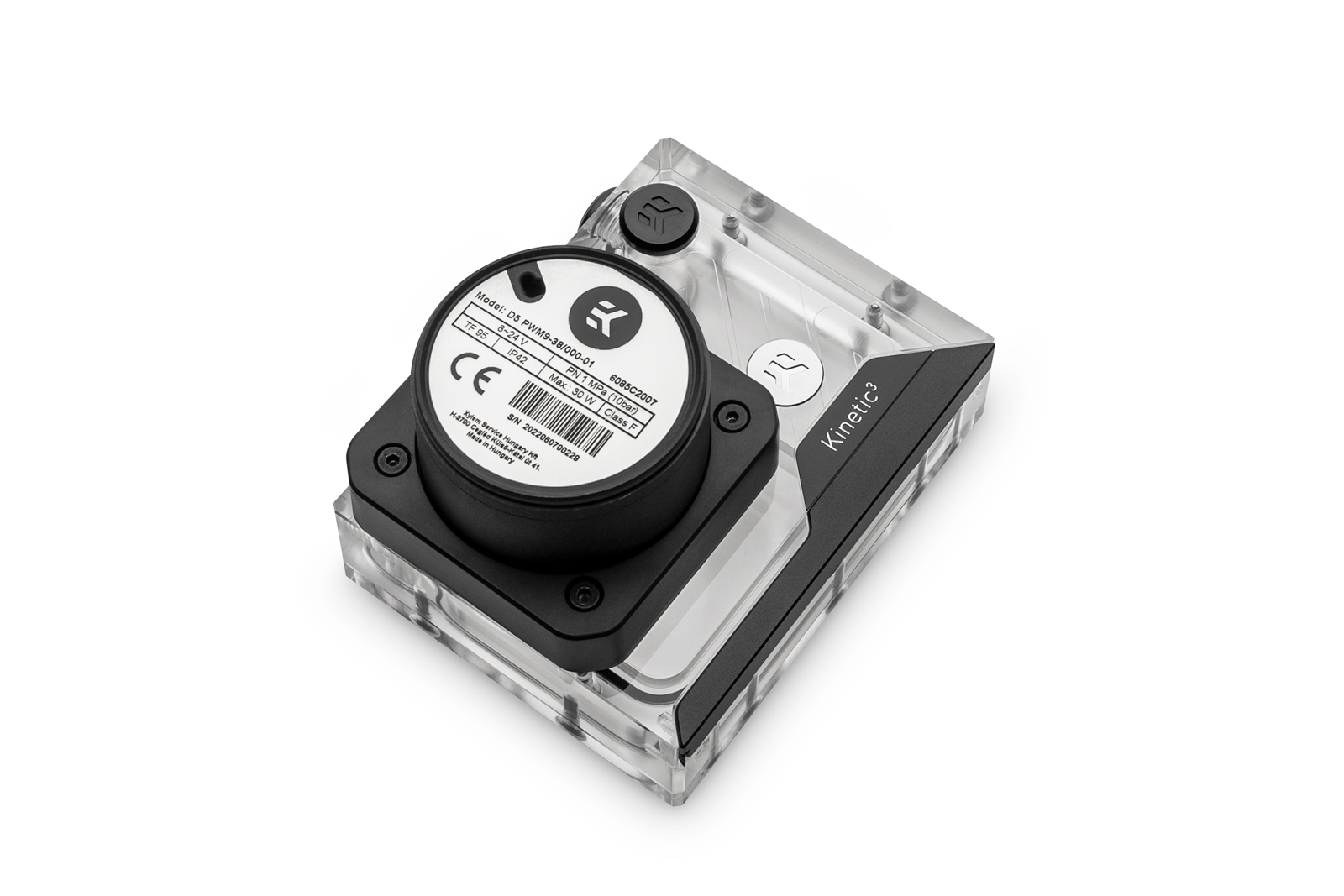

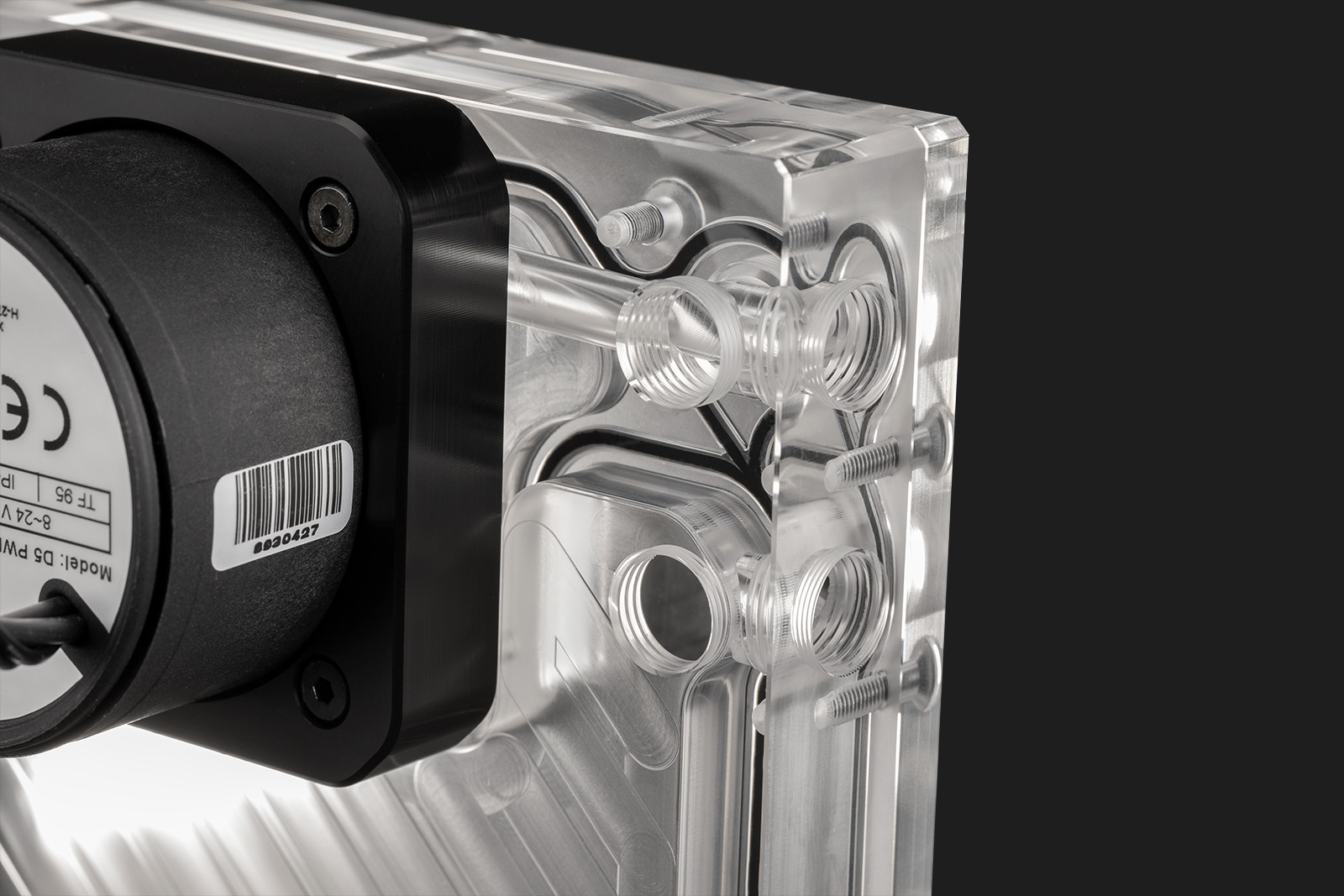

This next-generation EK-Quantum Kinetic³ FLT D5 pump-reservoir combo unit builds on the success of the existing FLT, flat-style combo unit and further improves compatibility, and simplifies the installation process by moving the pump to the front side and implementing additional G1/4“ connection ports.

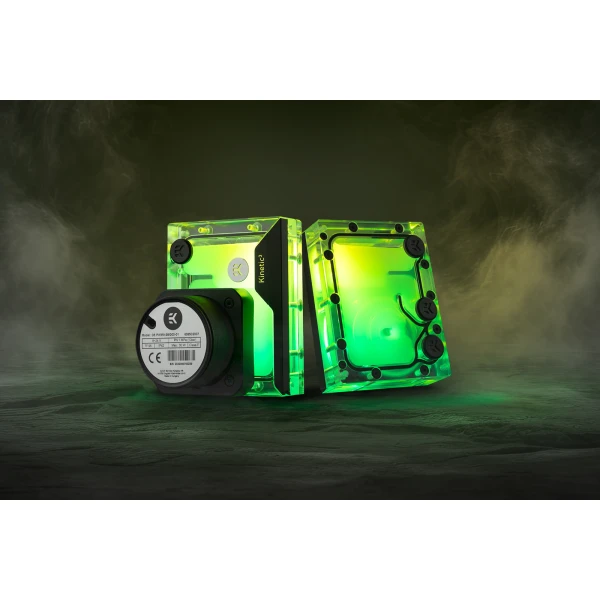

It comes with sophisticated addressable D-RGB lighting and a genuine D5 pump!

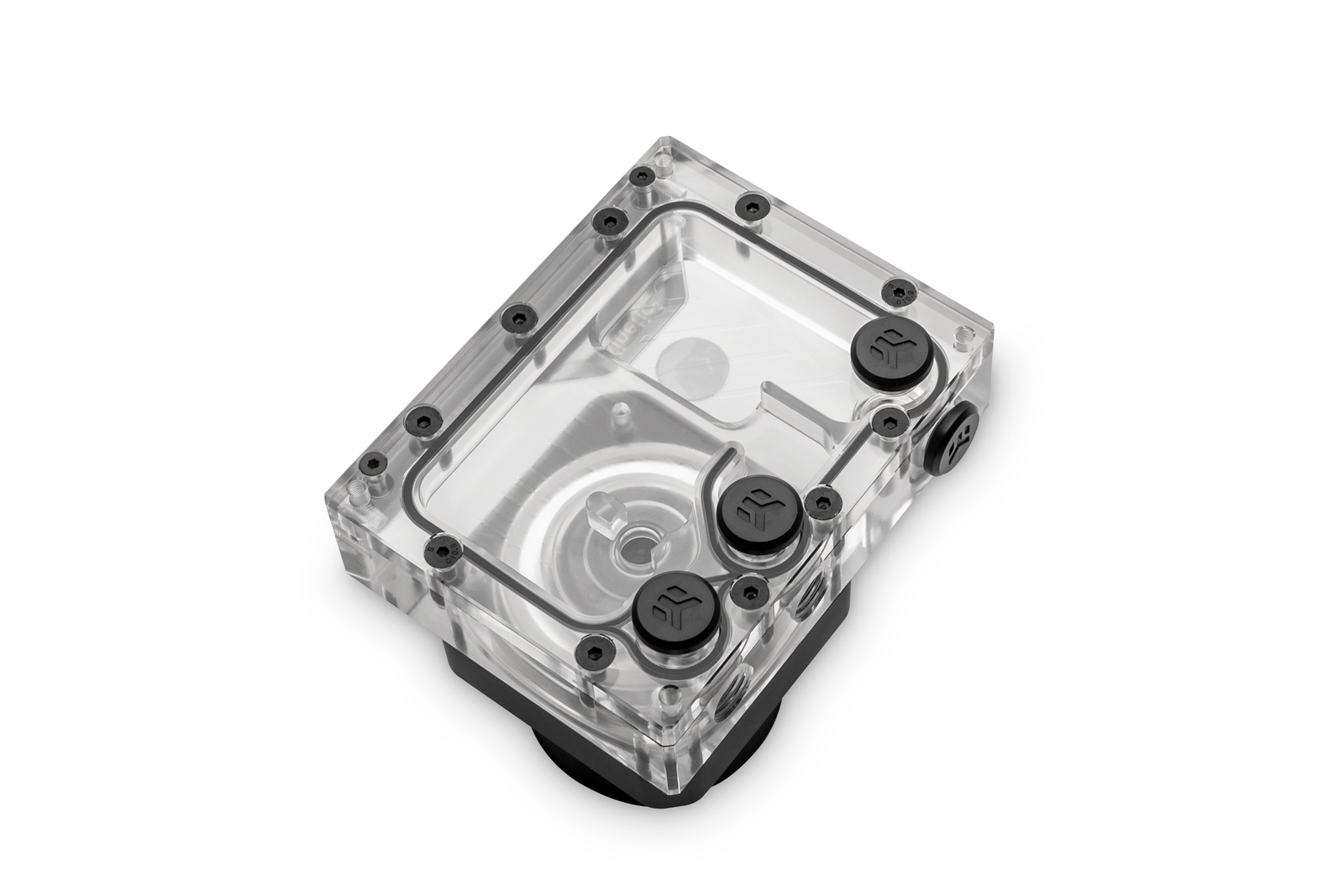

The unit features standard 120mm fan mounting holes for maximum flexibility during the installation. The reservoir is equipped with a total of nine G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops.

EK-Quantum Kinetic³ FLT D5 series pump-reservoir units are equipped with genuine D5 pumps, made in Europe, which are capable of delivering flow rates of 1000 liters per hour with a maximum head pressure of up to 5.2 meters! These new FLT series combo units are available in six different sizes 92mm, 120mm, 240mm, 140mm, 280, and 360mm.

The new Kinetic³ flat-shaped pump-reservoir units are to revolutionize the way you were thinking about combo units and loop building. Since 120mm fan mounting patterns (105mm apart) are the most dominant mounting options inside PC cases these days, these new Kinetic FLT D5 combo units will allow greater flexibility for installation since they don't require drilling of mounting holes on your case. The combo unit is also equipped with additional mounting points on one side (105mm apart) which can be used with the included steel L-shaped mounting plates. All mounting holes utilize M4 threads with the included screws.

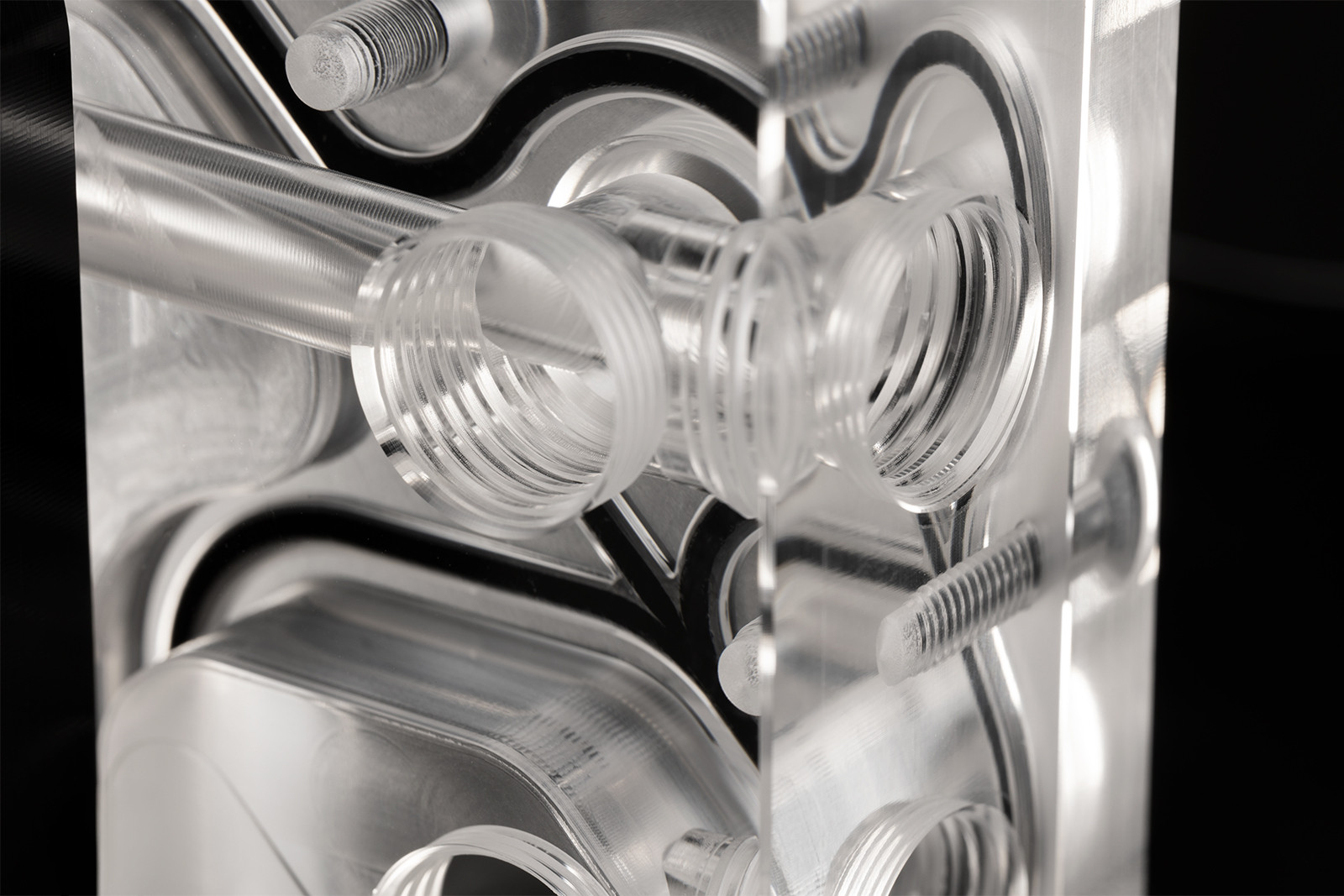

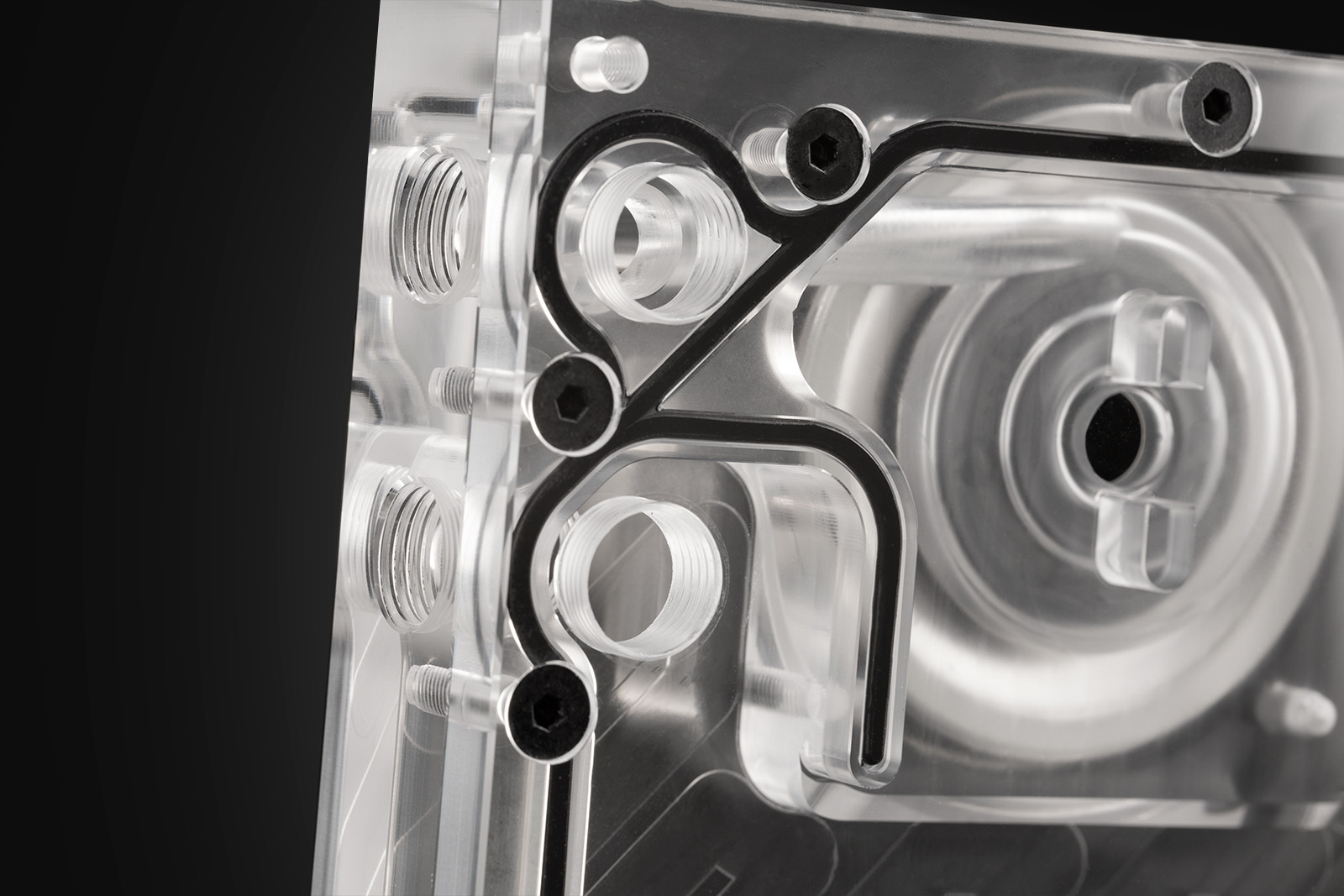

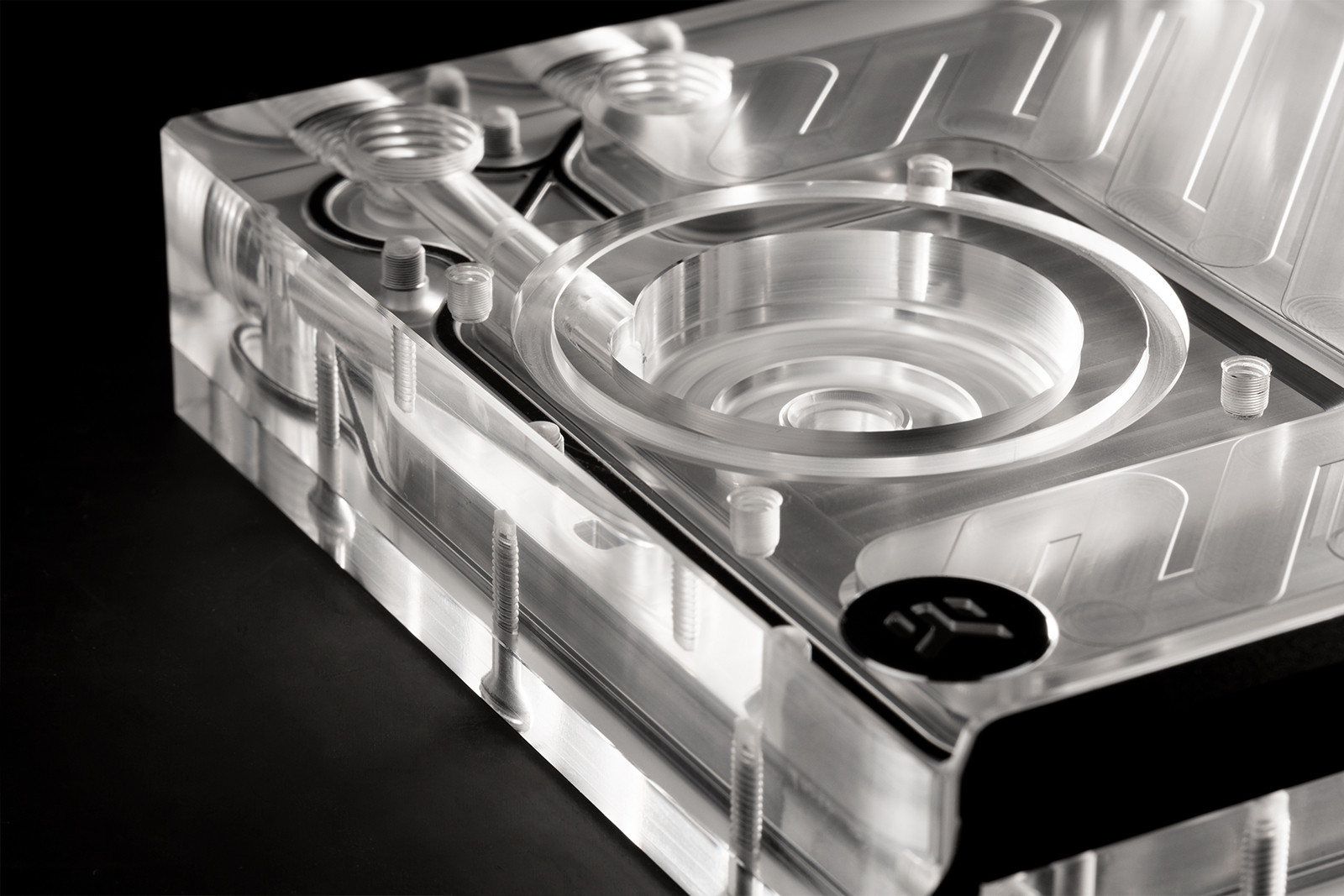

The reservoir is manufactured of premium quality acrylic material, and machined to perfection, while the sealing is performed by a custom-formed high-quality EPDM o-ring. Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible "LED hotspots" as possible. The cover is now a standalone piece, easily removable at any time if the LED strip requires any service or replacement.

Technical specifications:

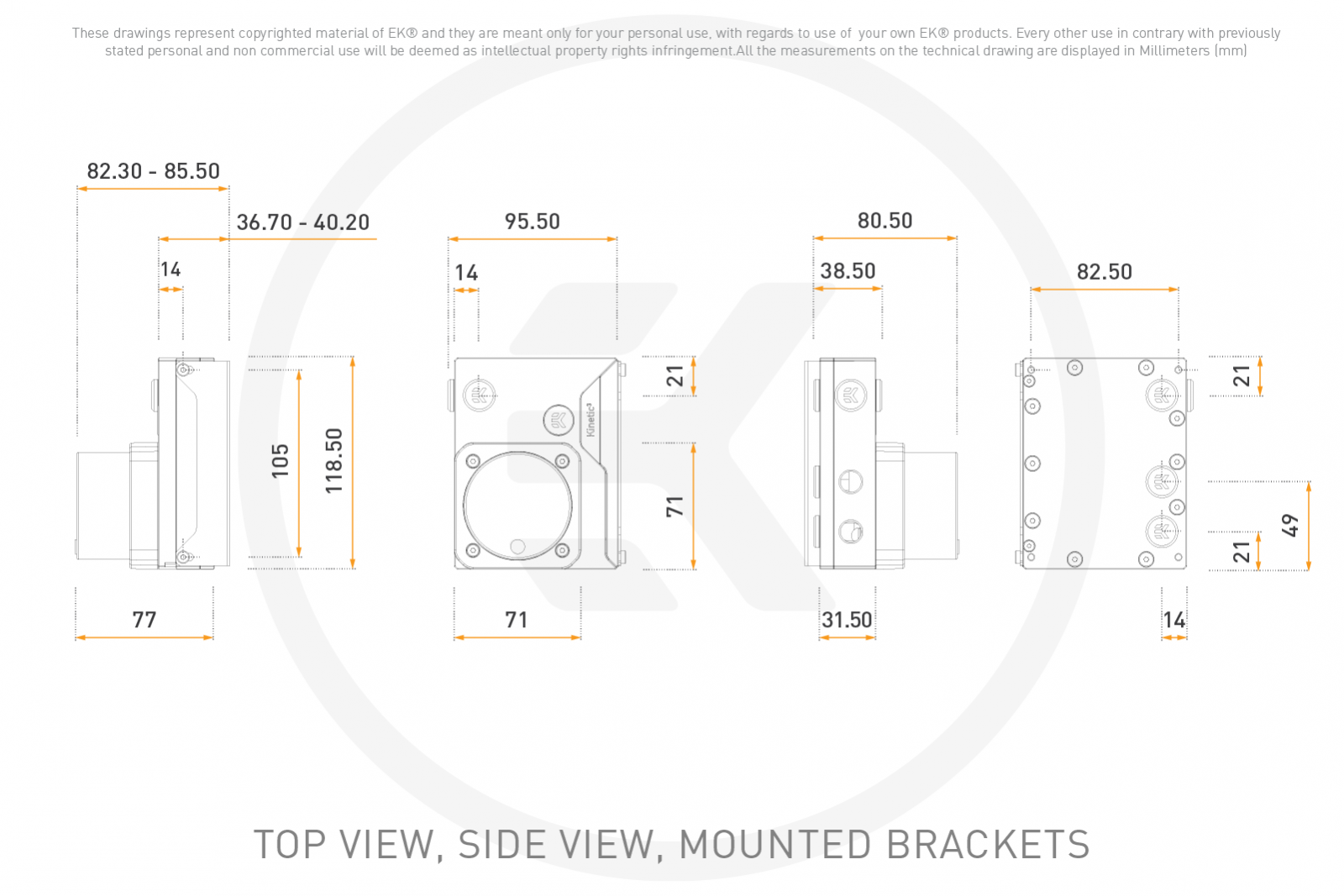

- Size (HxWxT): 126.5 x 95.5 x 86mm
- Capacity: ~80ml
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)
- LED Count: 11

Pump electrical and mechanical properties:

- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 20W
- Maximum pressure head: 5.2m
- Maximum flow: 1000L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide
- Power connector: SATA power and 4-Pin PWM FAN connector

Operational regime:

- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

- EK-Quantum Kinetic³ FLT 92 D5 PWM
- Mounting mechanism with all necessary screws
- L-shaped steel holder with mounting screws

Made in Slovenia - EU!
Pump motor made in Hungary - EU!
