Alphacool Core Geforce RTX 4090 Master V.2 with backplate

Alphacool Core Geforce RTX 4090 Master V.2 with backplate

Brak ocen

Producent: Alphacool
Kod producenta: 13837
Kod EAN: 4250197138376
Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

Alphacool's Core product series is characterized by high quality, outstanding performance and the uniform and functional design language.

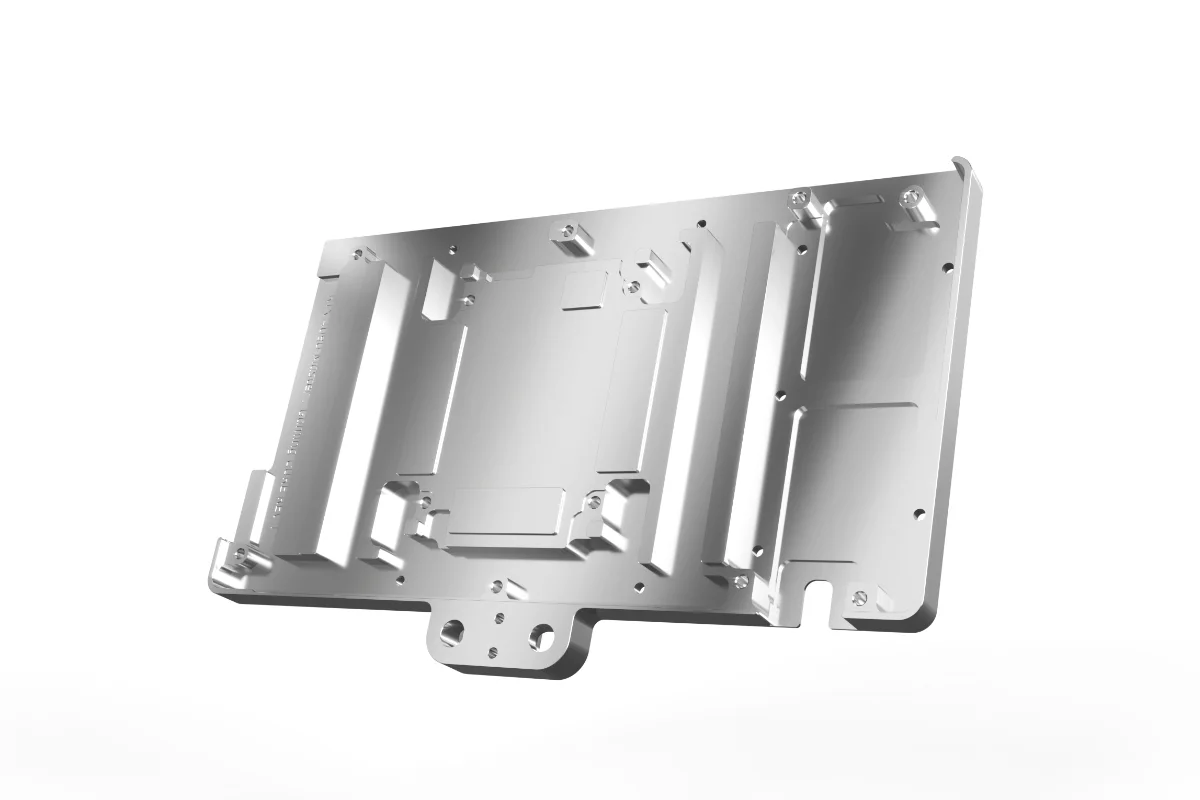

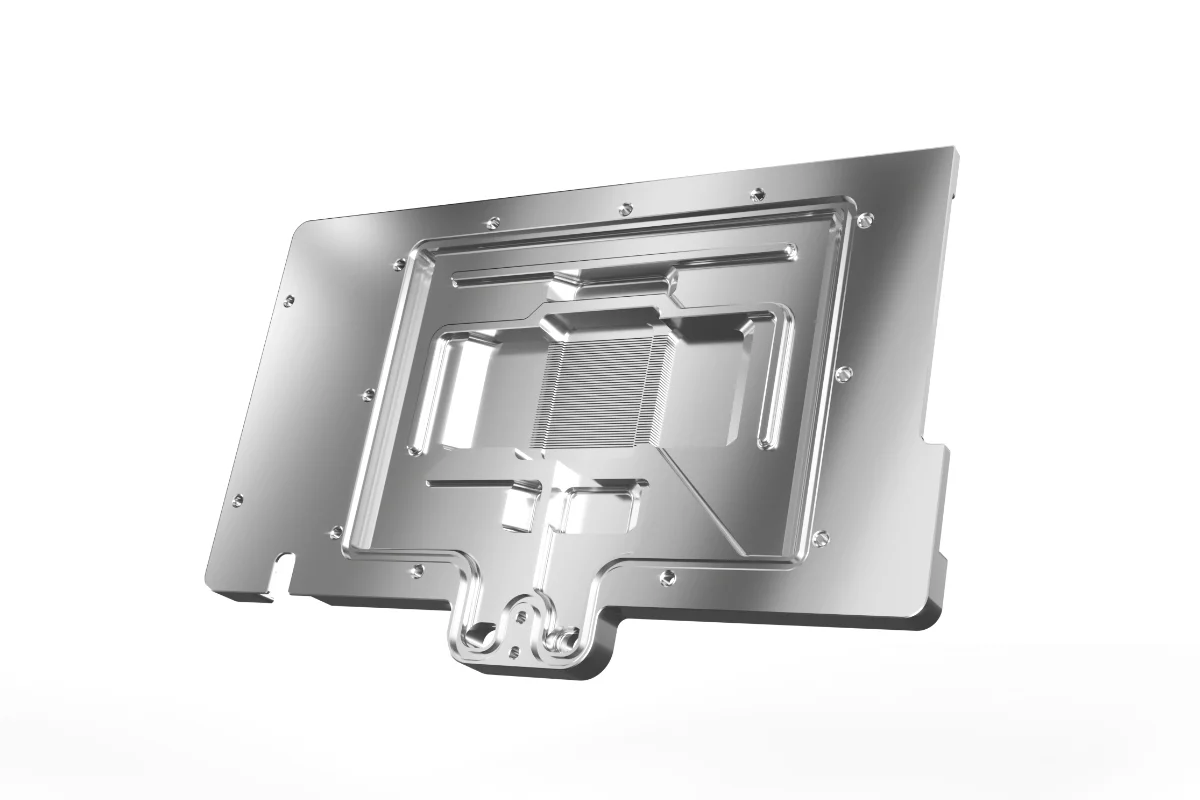

The copper cooler which, like the end terminal, is milled from a single piece of copper and is the core of this cooler. The fine workmanship, paired with the hard and resistant chrome plating covering the entire copper cooler, meet the highest quality standards. The chrome-plated brass G1/4" threads integrated on both sides stand out visually from the terminal. They are a central feature of the new design language that will be evident in all products in the Core series.

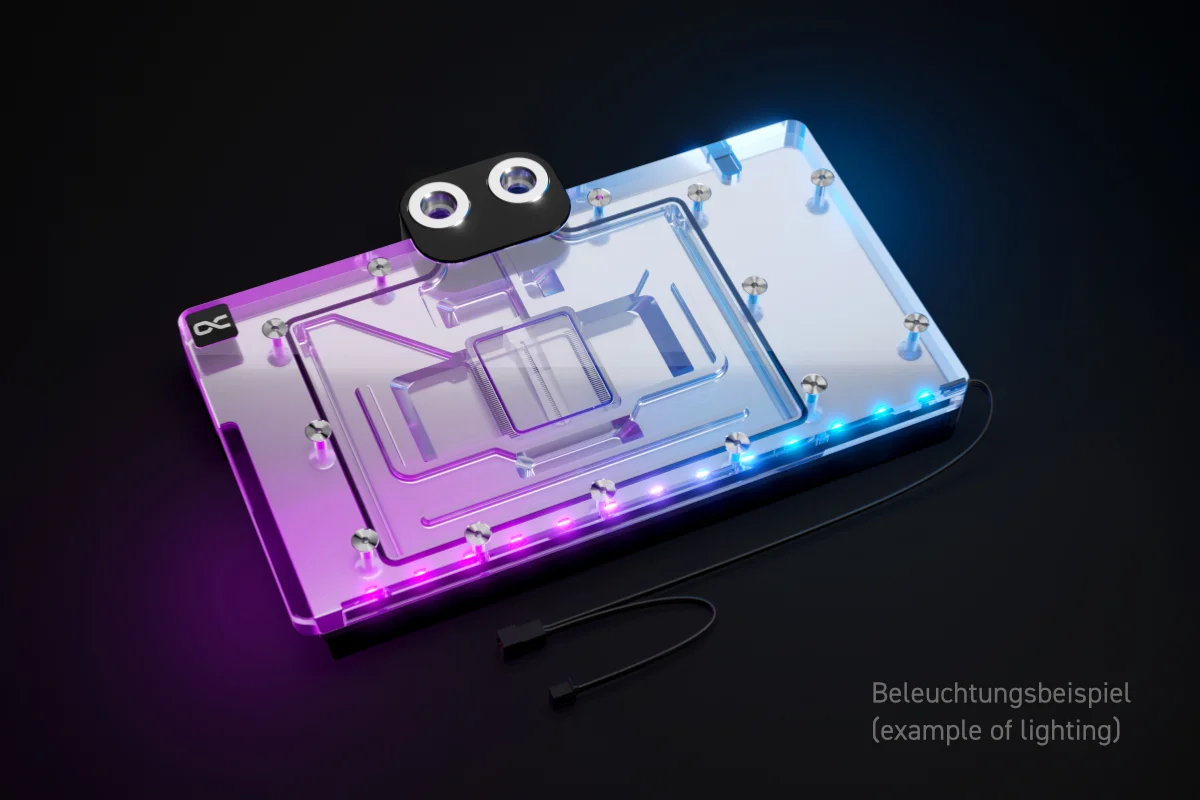

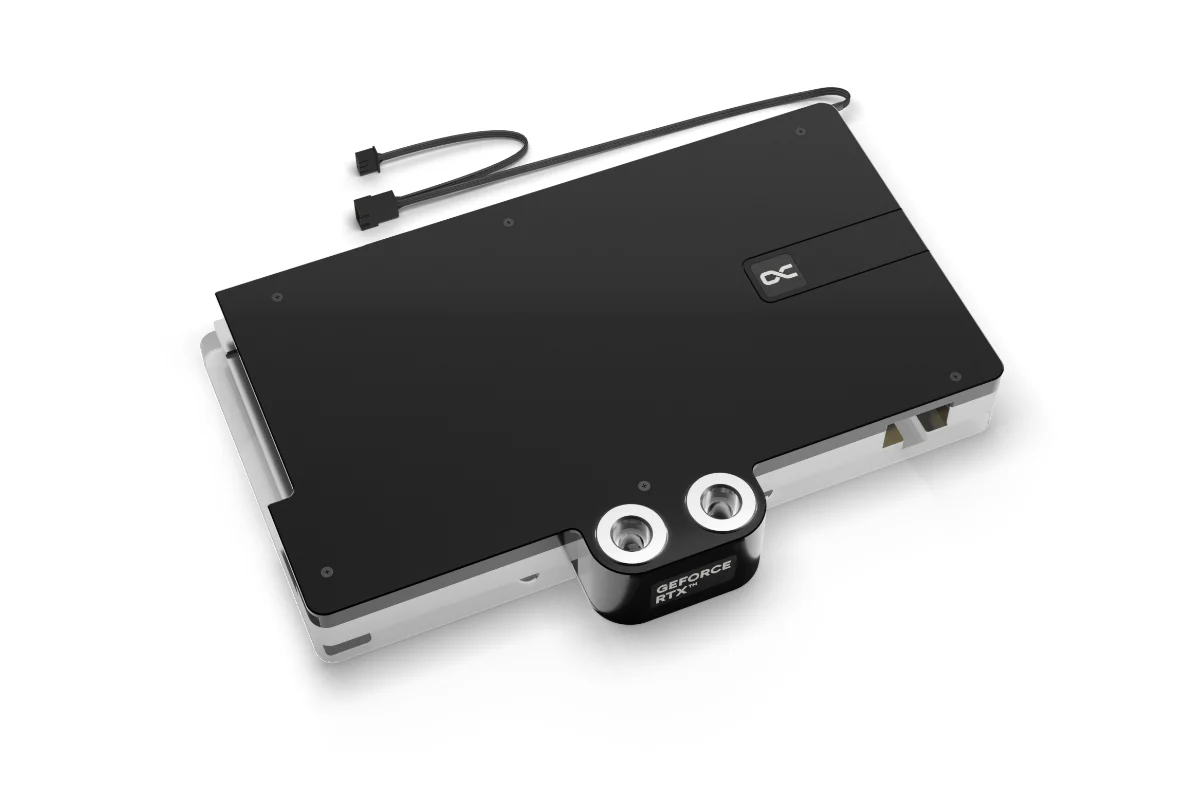

The aluminum backplate adapted to the design, together with the terminal, makes up the entire unit and enhances the back of the cooler with a clean and homogeneous look. The lighting consists of digitally addressable RGB LEDs, which illuminate the entire cooler evenly and effectively.

The technical advancements can be seen in the water supply to the jet plate as well as in the optimization of the jet plate itself. The jet plate has been completely redesigned based on many simulations and practical tests in cooperation with board partners. The fin thickness and spacing have been enhanced, the cooling surface has been increased and the water flow to the core components with the greatest heat output has been optimized. The enclosed special soft thermal pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.

Compatibility:

Note: This Version (V.2) of the cooler is compatible with PCB Layout V.1.1

- Gigabyte AORUS GeForce RTX 4090 Master 24G, 24GB GDDR6X (GV-N4090AORUS M-24GD)

- Gigabyte GeForce RTX 4090 Gaming OC 24G, 24GB GDDR6X (GV-N4090GAMING OC-24GD)

Technical data cooler

Dimensions (L x W x H) 235,80 x 152,96 x 31,90mm
Material cooler chrome-plated copper
Material cooler top acrylic
Threads 4 x G1/4"
Thickness cooler bottom 11,3mm
Thickness cooling fins 0,4mm
Distance cooling fins 0,4mm
Illumination digital aRGB LEDs
Power connector digital aRGB LEDs 3-Pin JST
Power digital aRGB LEDs 5V
Number of digital aRGB LEDs 13
Color transparent

Technical data backplate

Dimensions (L x W x H) 235,80 x 129,96 x 5mm
Material aluminium
Color black
