EK Water Blocks EK-Loop Angled Bracket - 120/140mm

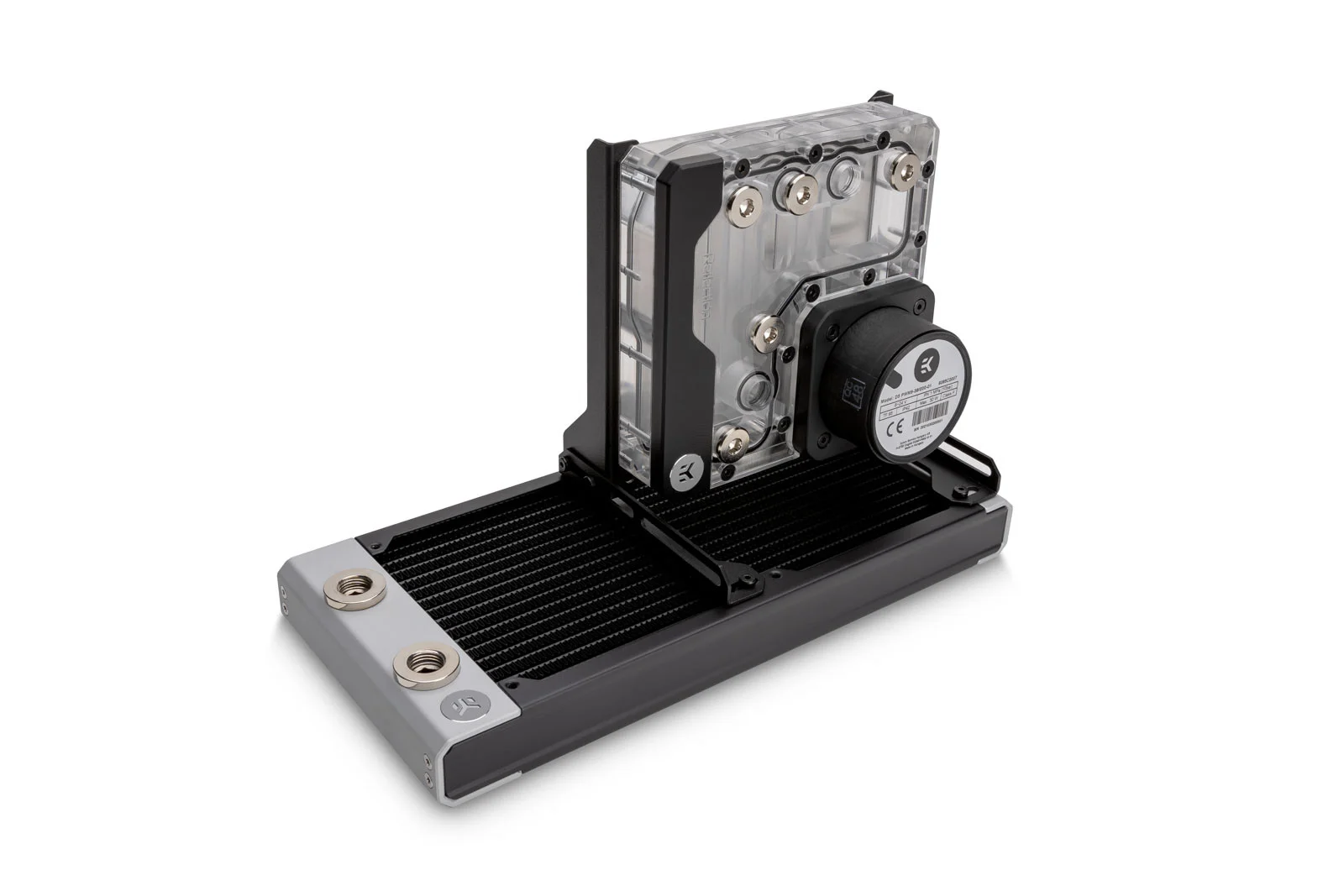

EK-Loop Angled Bracket - 120/140mm is a steel mounting bracket that enables the user to mount the FLT-style combo units or reservoirs, radiators, and fans with 140mm (125mm hole spacing) fan mounting holes perpendicular to any 120mm (105mm hole spacing) fan mounting holes. This will allow new mounting options that are not supported by the case itself. Additionally, you can use the long or the short side of your FLT product for additional mounting options.

This bracket also allows offsetting the product by about 50mm in each direction with the rail system it uses because the screws are not in a fixed location. This bracket is not limited to FLT series products, even though it was engineered for it. With a bit of imagination, you can also use it for mounting radiators or any products with 120mm fan mounts. Made from press-bent 1,5mm thick painted steel.

This product is compatible with FLT reservoirs and combo units but can be used for any product with 140mm fan mounting holes.

Enclosed:

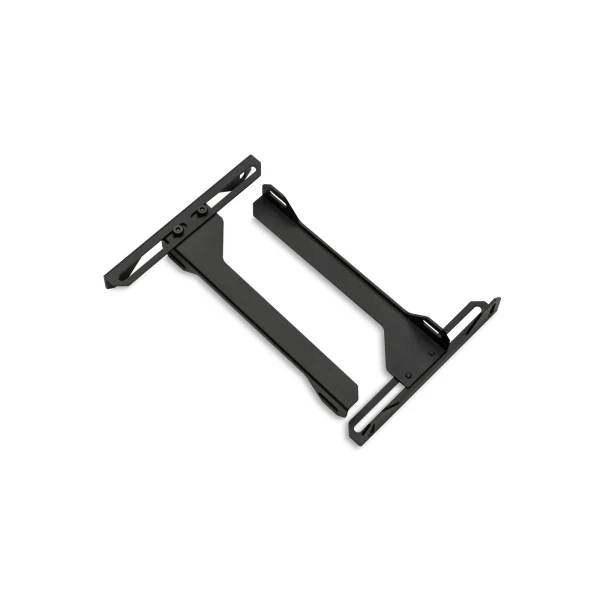

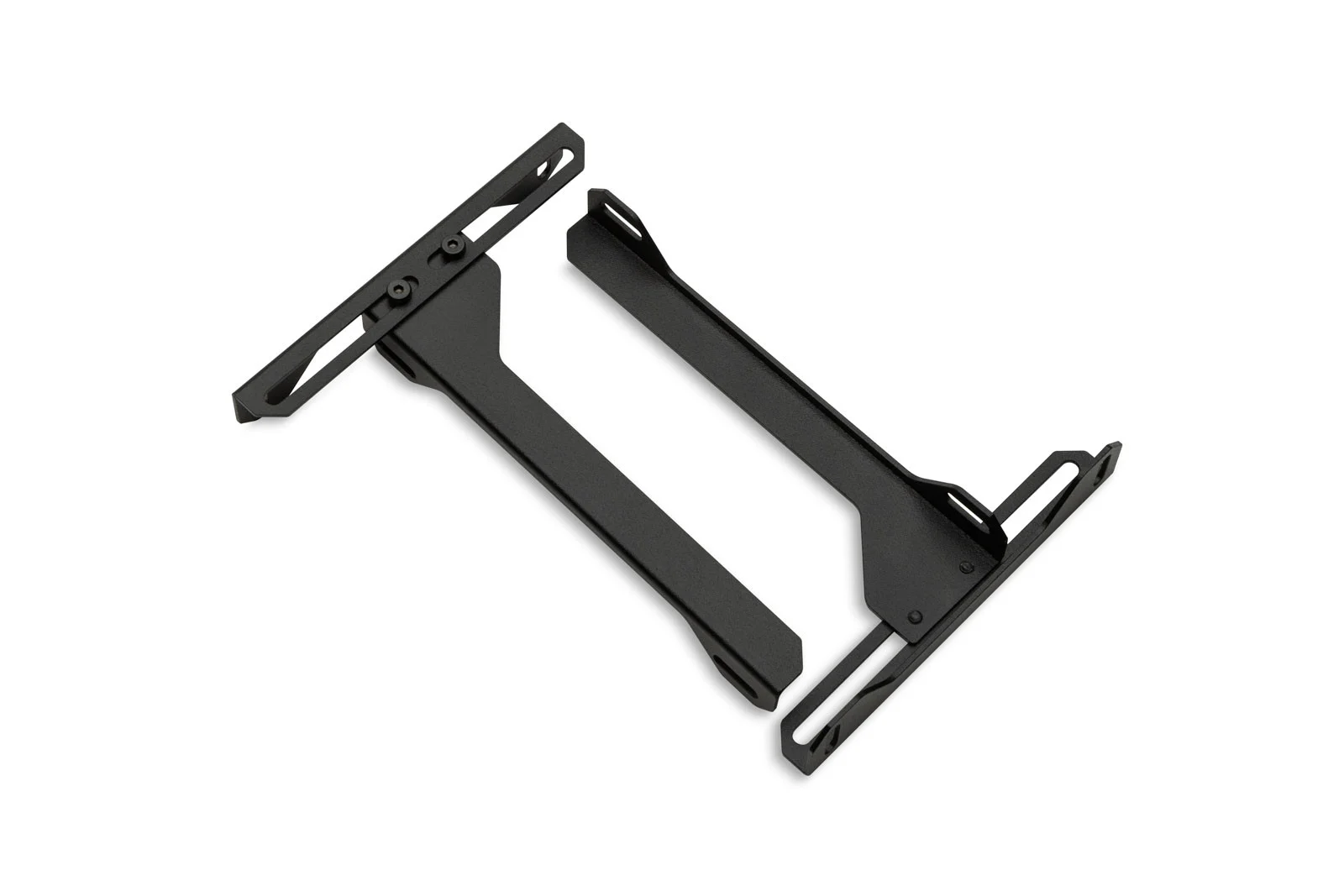

- EK-Loop Angled Brackets (left + right + base brackets)
- 4x polyamide washer M4 0.8mm
- 4x acetal spacer
- 4x screws M4x4 DIN7984
- 8x screws M4x10 DIN7984
- 4x nut M4
- Allen key 2.5mm

Made in Slovenia - Europe!
