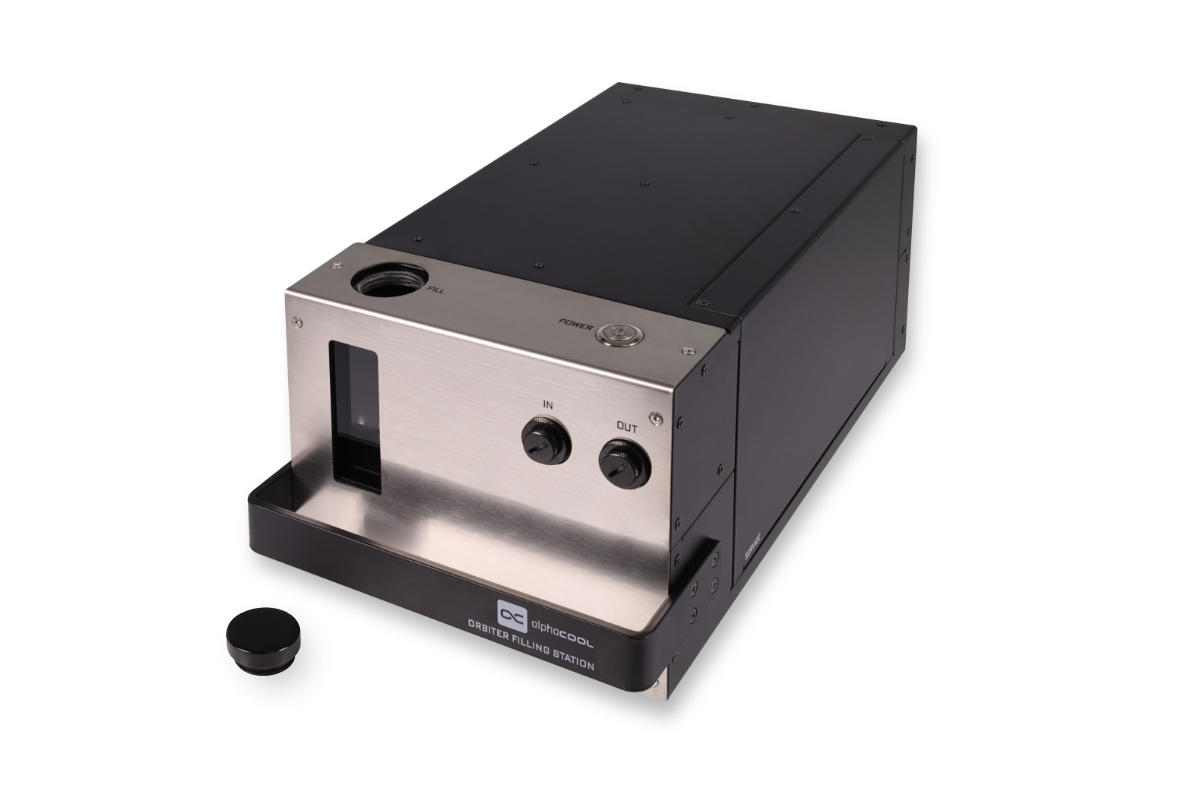

Alphacool ES Orbiter Filling Station
- Producent: Alphacool
- Kod producenta: 13093
- Kod EAN: 4250197130936
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

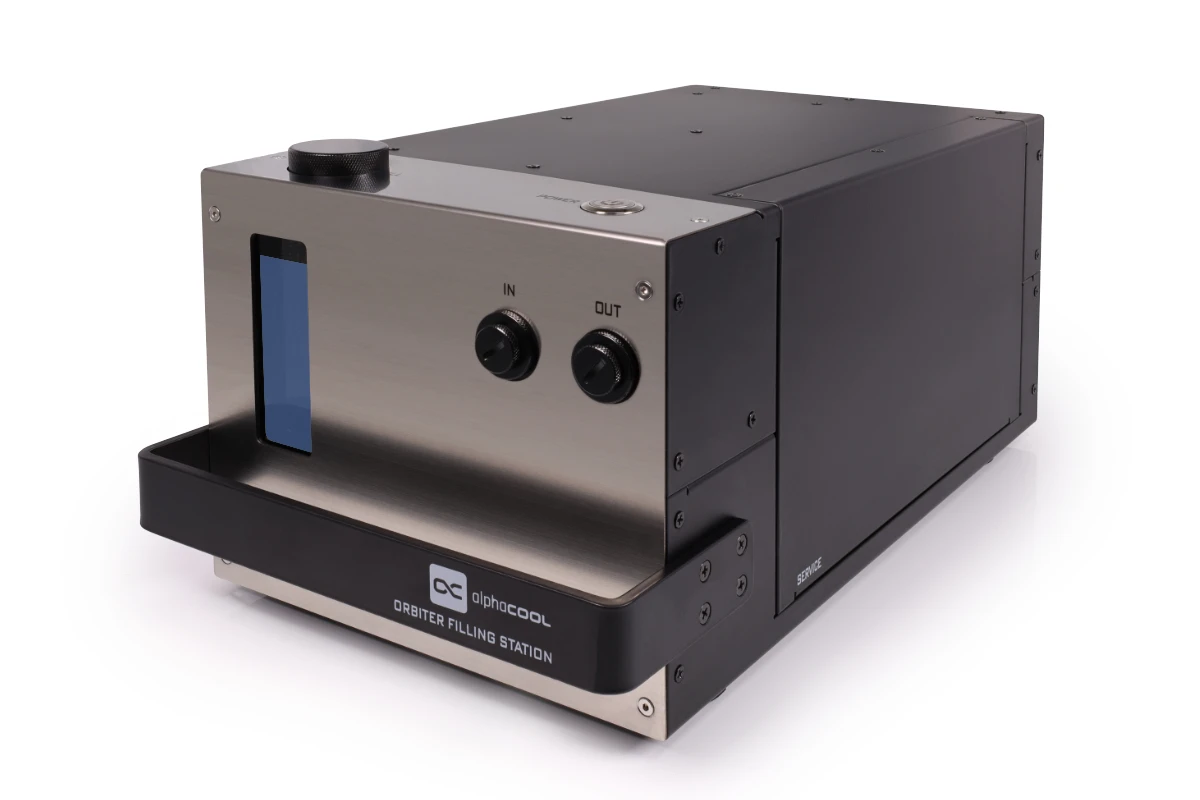

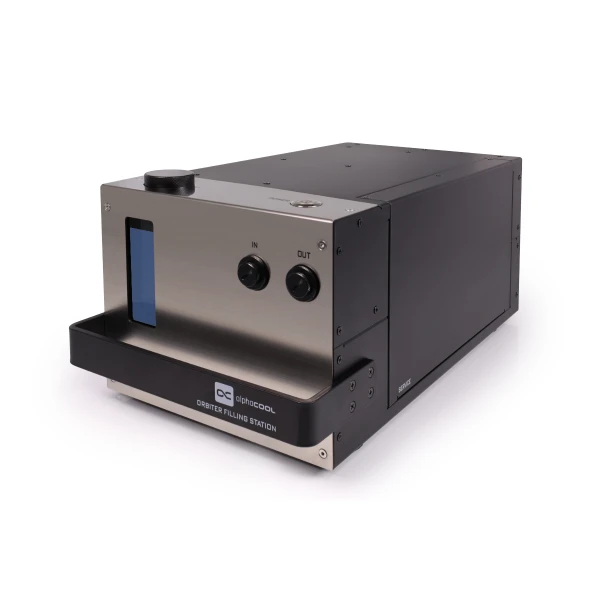

The ES Orbiter Filling Station from Alphacool allows for easy and effective filling of water cooling systems. With the help of the two powerful pumps, the system to be filled is quickly vented. A high-performance filter ensures that the coolant is cleaned, making the ES Filling Station also ideal for cleaning cooling loops.
Efficient venting and filtering
The two built-in pumps in the ES Filling Station not only ensure redundancy, but also enable fast and reliable venting of the system to be filled. The installed filter ensures that no impurities enter the cooling system. Thanks to the filter, the Filling Station is also ideal for cleaning existing cooling circuits.
Easy handling

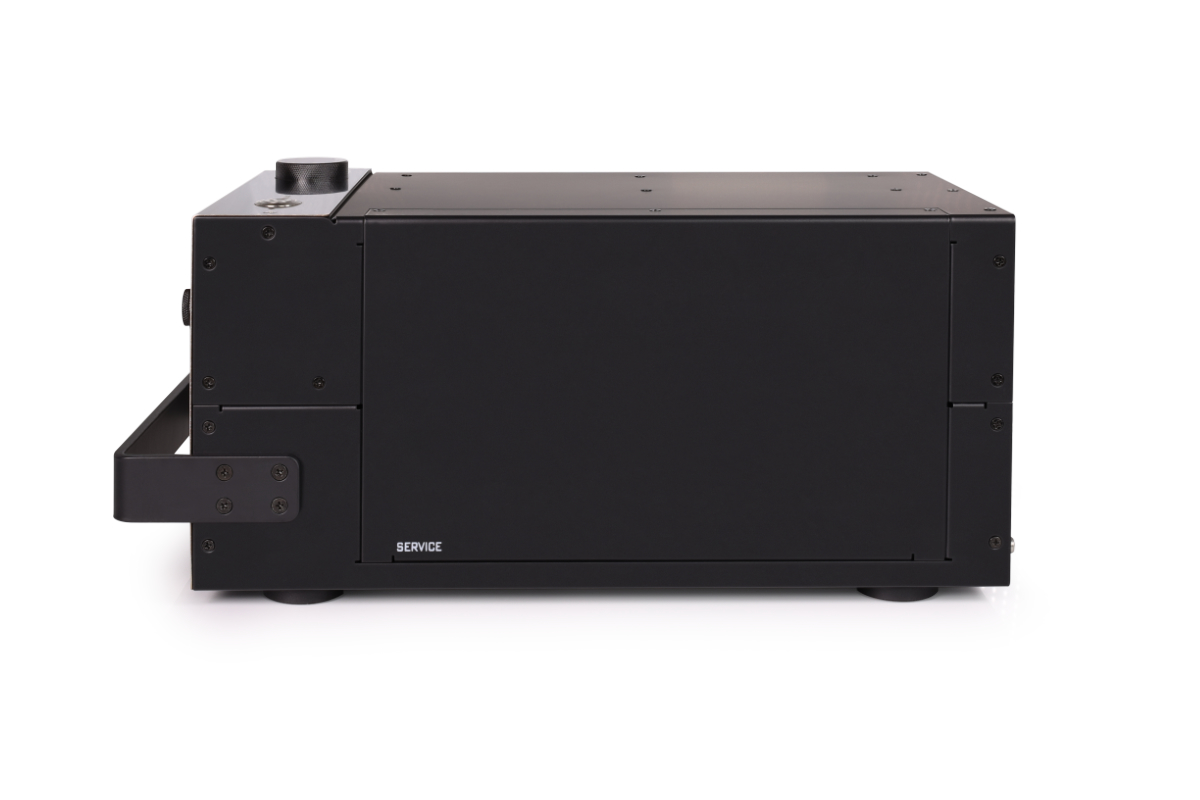

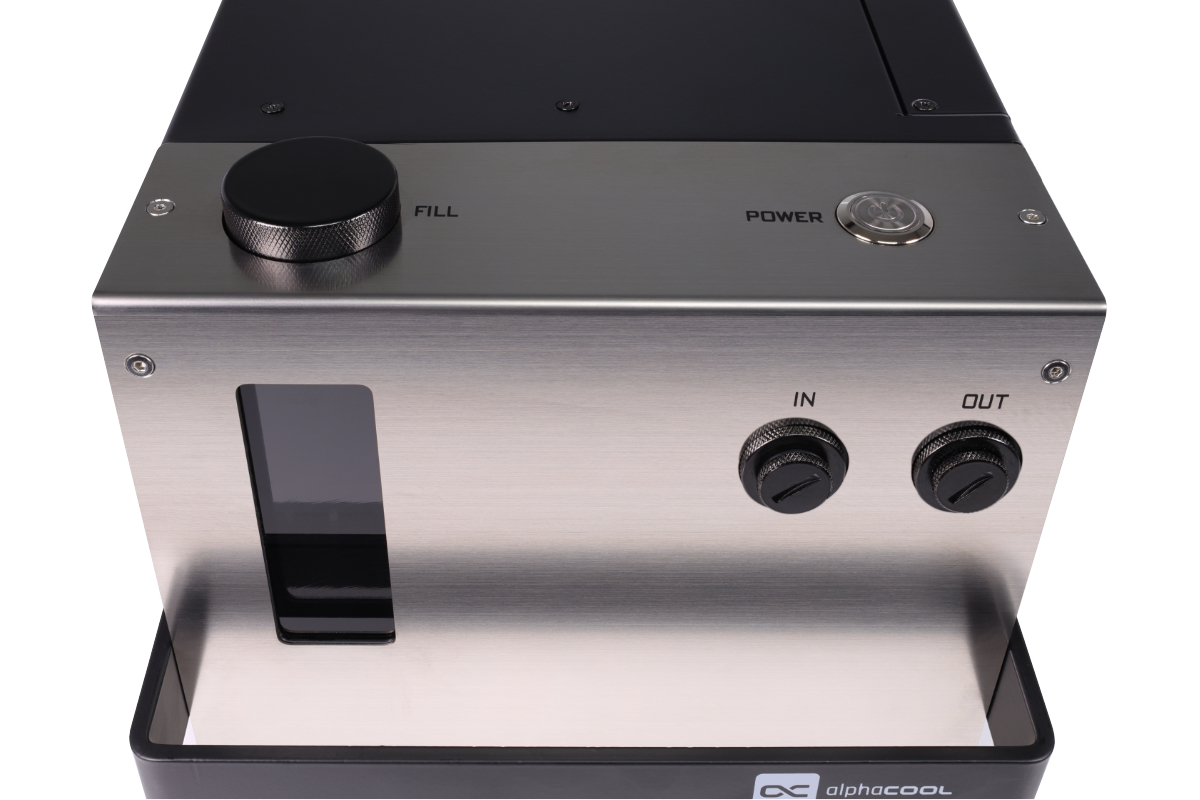

Filling the Alphacool ES Filling Station is effortless via the slightly raised G1 filling port. The illuminated inspection window allows easy monitoring of the fill level at any time and even in poorly lit environments. The integrated reservoir has a capacity of approx. 4500 ml. In addition, the Filling Station has a maintenance door for carrying out work such as changing filters.
Technical data | |
Dimensions (L x W x H) | 415,50 x 226,40 x 188,10mm |
Material: Case | Metal |
Material: Reservoir | Acrylic |
Material: Tubes | TPV (EPDM) |
Approved liquids | water, water/glycol mixture |
Voltage | 12V DC |
Power consumption | 39W |
Approved water pressure | 0,8bar |
Max. pumping height | 3,125m |
Rate of flow | 350l/h |
Permitted operating temperature (industrial applications) | 75°C |
Water connections | 2x G1/4“ |
Diameter filling port | G1“ |
Volume reservoir | approx. 4500ml |
Color | black |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
