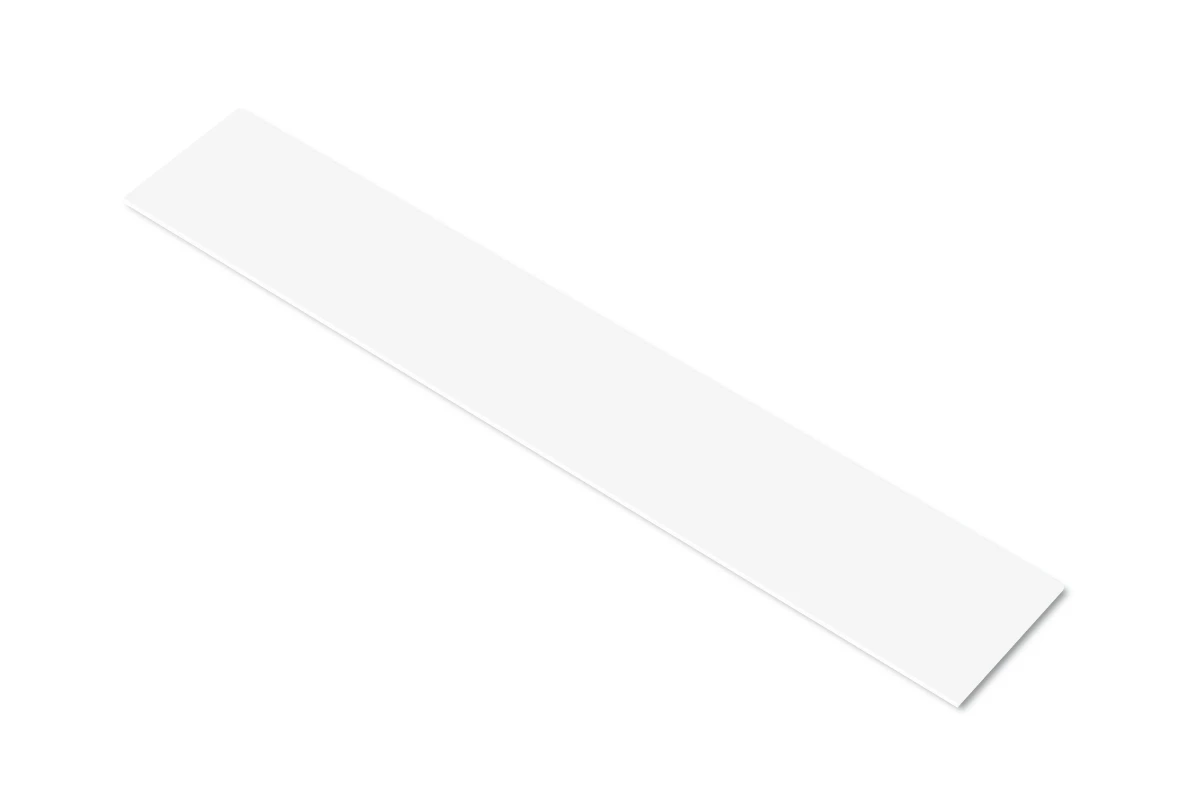

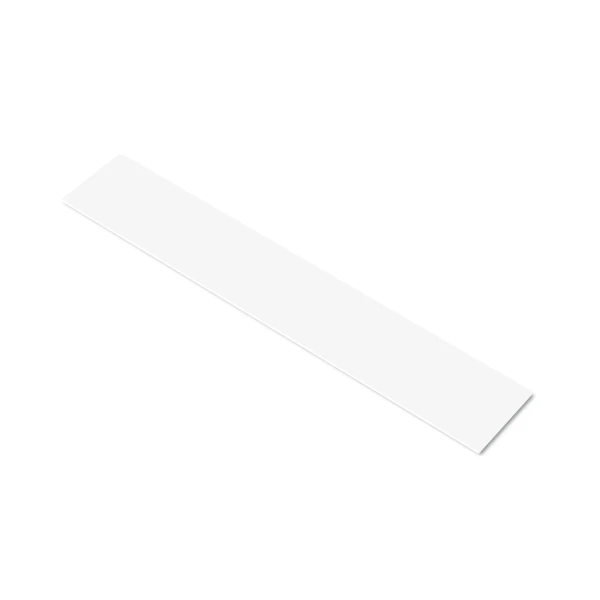

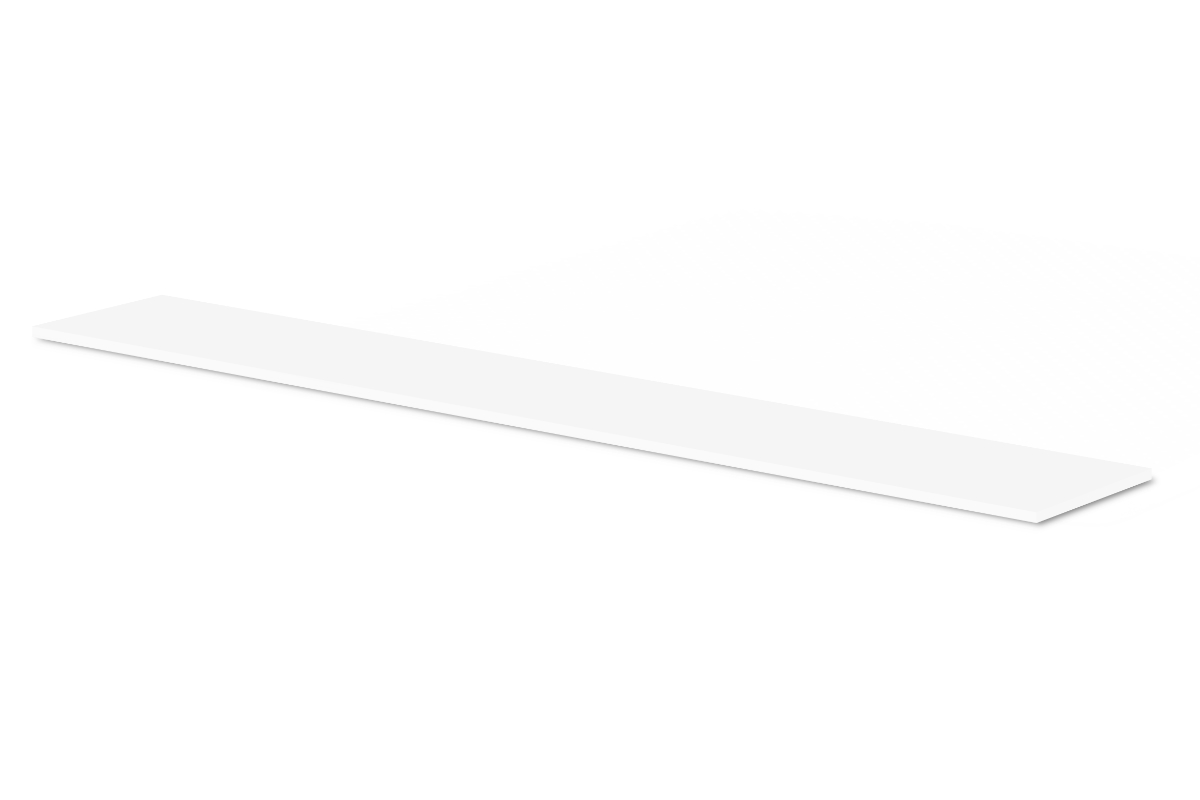

Alphacool Apex Thermal Pad Soft 18W/mk 120x20x1mm
- Producent: Alphacool
- Kod producenta: 13486
- Kod EAN: 4250197134866
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
Cechy produktu
-
Przewodność:
17.8 W/mK
-
Grubość:
1mm
Alphacool offers a wide selection of thermal pads to enable effective heat dissipation from electric components. The Apex thermal pad is the most powerful option and can reliably dissipate heat. Thanks to its strong compressibility, it is also versatile.
Powerful!
The Apex Ultrasoft thermal pad from Alphacool, which is based on silicone, has optimal compressibility. Due to its low hardness and natural stickiness, it can perfectly adapt to surfaces and compensate for unevenness between components, thereby significantly improving heat transfer.
Increased lifespan!
Thanks to its unique material composition, the risk of silicone bleeding in the Apex thermal pad is significantly reduced. It can reliably cool over a much longer period of time than conventional thermal pads, without significant performance loss.
Versatile!
Thanks to its excellent electrical insulation, the thermal pad is suitable for cooling electric components in a variety of devices, including electric vehicles, autopilot systems, mobile phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunications equipment, access points, storage modules, and many more.
Technical data thermal pad | |
Dimensions (L x W x H) | 120 x 20 x 1mm |
Thermal Conductivity (ASTM D5470) | 17.8 W/mK (±10%) |
Hardness (ASTM D2240) | 65 (Shore 00) (±5) |
Working temperature | -50 to ~150°C |
Volume Resistance (ASTM D257) | 6×10¹² Ohm-m |
Dielectric Breakdown Voltage (ASTM D149) | 4 KV/mm (±10%) |
Density (ASTM D792) | 3.5 g/cm³ (±10%) |
Elongation (ASTM D412) | 20% |
Weight Loss (ASTM E595) | less than 1% |
Flame Rating (UL 94) | V-0 |
Color | light grey |
