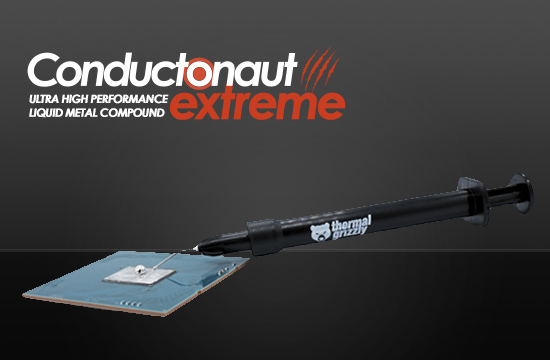

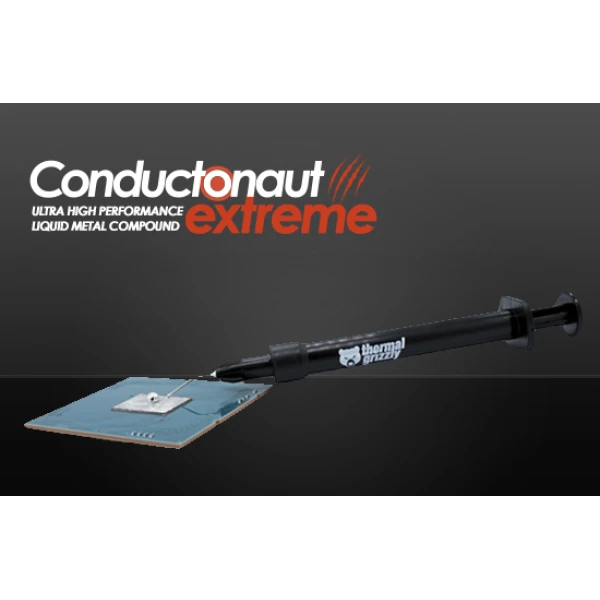

Thermal Grizzly Conductonaut Extreme liquid metal 1g

Brak ocen

Producent: Thermal Grizzly
Kod producenta: TG-CE-001-R
Kod EAN: 4260711990564
Gwarancja: 24 miesiące

Dostępność:

Dostępny

Dostępna ilość:

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

Cechy produktu

Waga:

1g

The Conductonaut Extreme liquid metal thermal compound is the further development of Conductonaut and was developed for applications with maximum power density. As a gallium-based liquid metal, Conductonaut Extreme is a metallic alloy that is liquid at room temperature, allowing for the minimum possible layer thickness.

Optimised thermal conductivity compared to conventional liquid metal
Increased material compatibility
Optimum application due to metal needle
Available in 1g or 5g syringes
Attention: Electrically conductive!
Do not bring into contact with aluminium!

Conductonaut Extreme thermal paste is technically not a thermal paste, as a paste consists of liquid and solid particles. The disadvantage of a paste is the solid particles. The surfaces of the base plate of the CPU cooler and the CPU heat spreader are uneven on a microscopic level. A traditional thermal paste fills these irregularities unevenly. Since the solid particles are larger than the gaps caused by the unevenness, more distance must be filled between the cooler and the heat spreader.

A heat-conducting medium in the form of liquid metal does not have this problem because it does not contain any "large" particles. As a result, the surfaces of the CPU cooler and heat spreader are closer together. At the same time, liquid metal has a constant heat transfer, while the larger solid particles in pastes usually conduct heat better than the paste parts. Liquid metal is preferable to thermal paste, especially in high energy applications.

Conductonaut Extreme is manufactured to the highest quality standards at our production site in Germany. Our expertly trained staff continuously monitor the entire production chain. From testing the purity of the raw material, to the production of the liquid metal and filling, to packaging, production is subject to multiple quality controls.

Conductonaut Extreme is recommended as a high-end product for experienced users who are looking for a solution with best heat dissipation in the temperature range above 8°C. We recommend applying Conductonaut Extreme on nickel-plated copper as this offers the best long-term stability.

As a gallium-based liquid metal, Conductonaut already has ultra-high thermal conductivity. This already outstanding thermal conductivity could be expanded after extensive tests and with the help of a new material composition. Conductonaut Extreme consists exclusively of the metals gallium and indium. By dispensing with other alloying components, it is possible to increase the thermal conductivity by approx. 18 % compared to the standard product.

Technical specifications

Density	6,29g/cm³
Handling temperature*	17 °C–150 °C
Operating temperature**	-50 °C–200 °C
Consistency***	liquid
Color	silver
Standard sizes	1g, 5g
Possible thickness	variable
Silicone based	no
Electrically conductive	yes
Typical application	CPU, GPU, Notebooks, IC

* In this temperature range you can apply Conductonaut Extreme to the surface. If this temperature was undershot during transportation or storage we recommend to heat up the product to at least 25 °C before application. Do NOT use a microwave to heat up the product.

** The operating temperature conforms the temperature after application and during operation. Very low temperatures may impact the performance and long term use. Detailed testing in each specific condition is absolutely recommended.

*** in the temperature range of 25 °C to 500 °C

Scope of delivery

1x Syringe with liquid metal

1x Metal needle for application

1x Plastic needle for absorbing

2x Lint-free industrial cotton swabs

2x Cleaning pad

Note: Conductonaut Extreme thermal paste must not be used with aluminium coolers!

Note: Conductonaut Extreme is a metal alloy and may leave optical residues.

For best long-term performance, we recommend heatsinks with nickel-plated copper bases.
