Alphacool Eisblock Aurora RTX 4070TI Ventus with Backplate

Alphacool Eisblock Aurora RTX 4070TI Ventus with Backplate

Brak ocen

Producent: Alphacool
Kod producenta: 13724
Kod EAN: 4250197137249
Gwarancja: 24 miesiące

Dostępność:

Oczekujemy na dostawę

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

The next generation - the Alphacool Eisblock Aurora water cooler for Geforce RTX 40XX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.

Technical Highlights

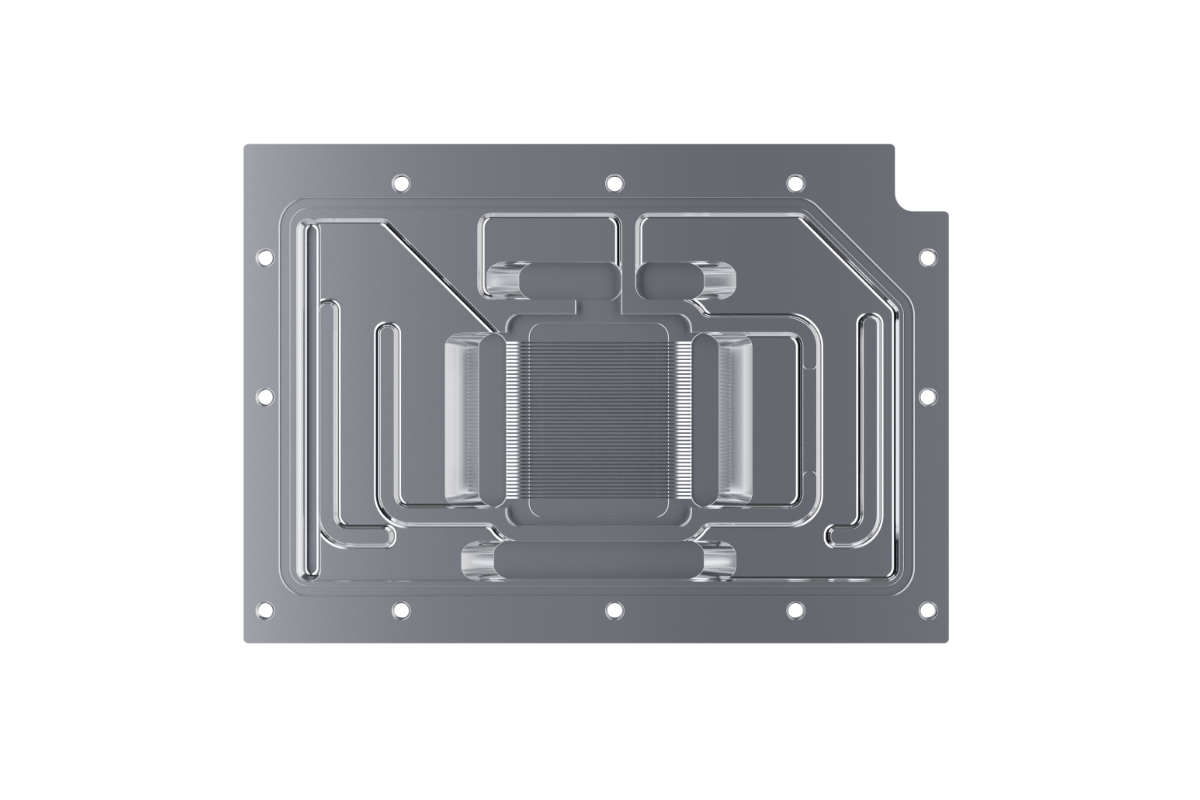

The fin structure of this Eisblock cooler generation was developed together with Nvidia board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.

Chrome-plated copper
The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.

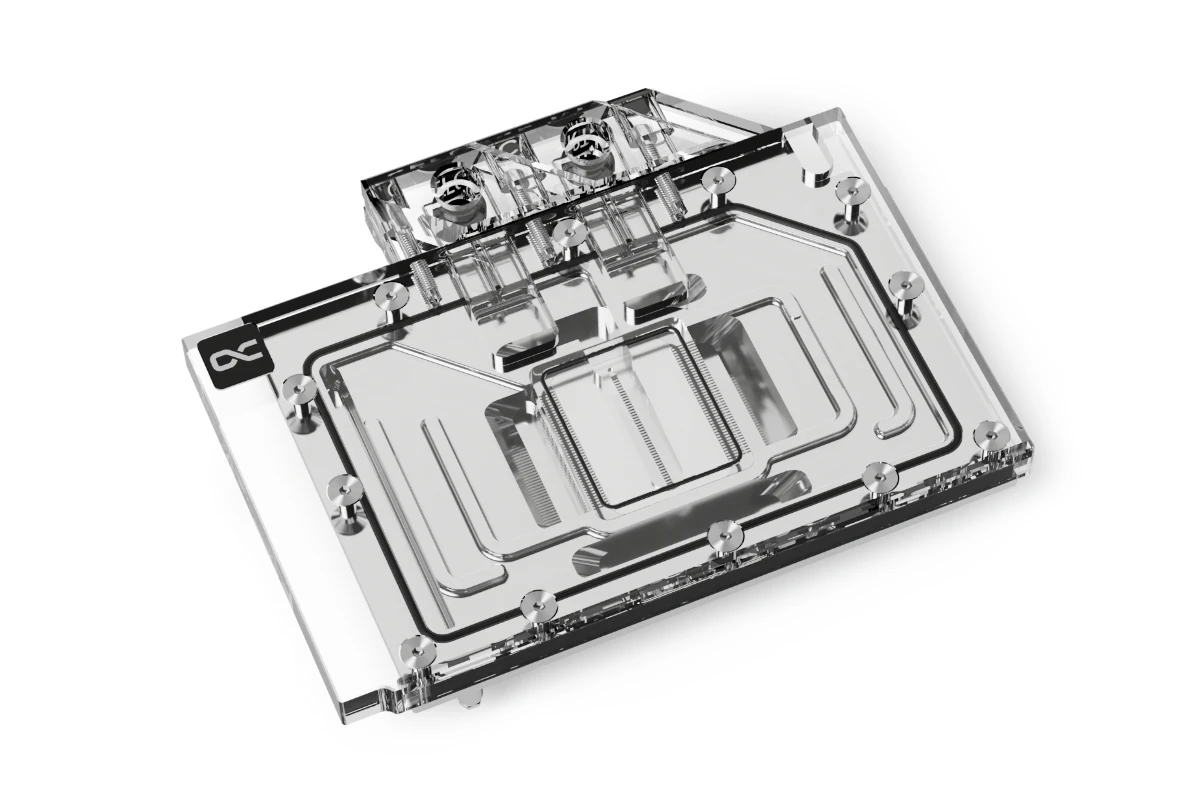

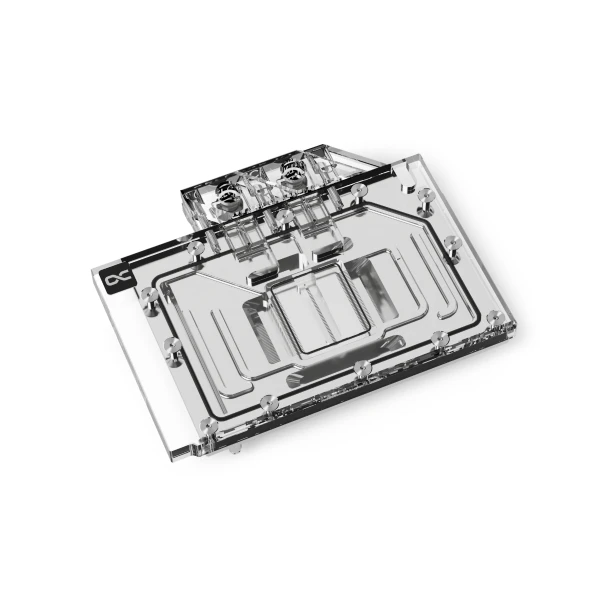

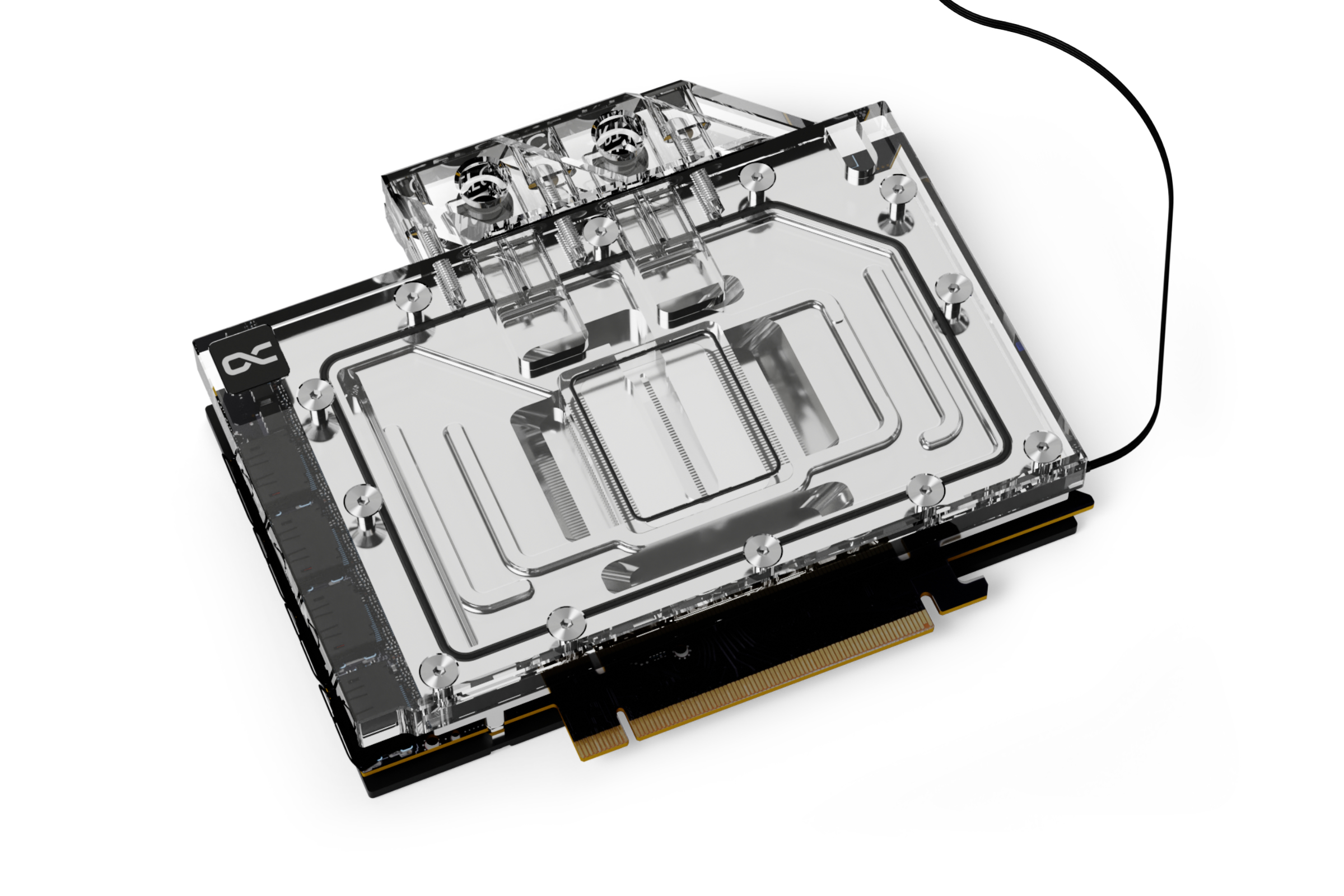

Design

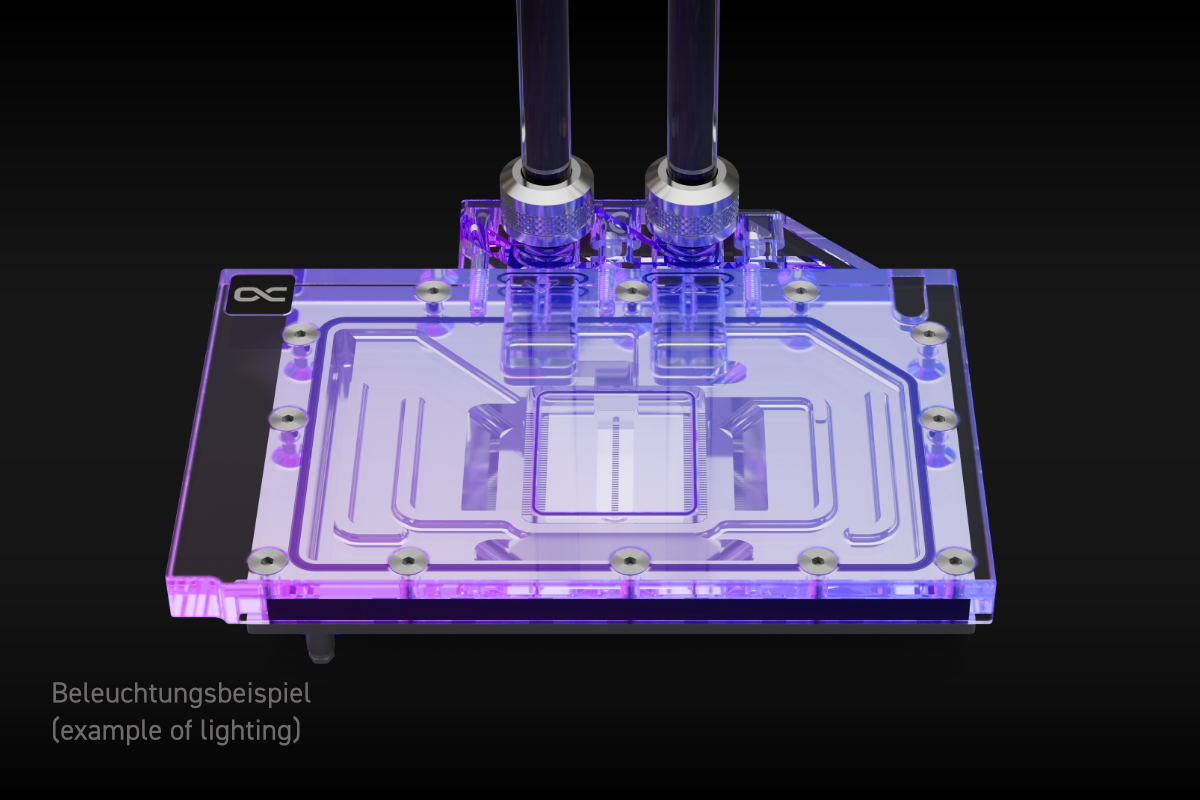

The Aurora design of the Geforce RTX 40XX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.

Thermal paste & thermal pads
The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK.

Compatibility:
- MSI GeForce RTX 4070 Ti Ventus 3X 12G OC, 12GB GDDR6X (V513-001R)
- MSI GeForce RTX 4070 Ti Ventus 3X 12G, 12GB GDDR6X
- MSI GeForce RTX 4070 Ti SUPER 16G Ventus 2X OC, 16GB GDDR6X (V513-615R)
- MSI GeForce RTX 4070 Ti SUPER 16G Ventus 2X White OC, 16GB GDDR6X (V513-629R)
- MSI GeForce RTX 4070 Ti SUPER 16G Ventus 2X White, 16GB GDDR6X
- MSI GeForce RTX 4070 Ti SUPER 16G Ventus 2X, 16GB GDDR6X
- MSI GeForce RTX 4070 Ti SUPER 16G Ventus 3X OC, 16GB GDDR6X
- MSI GeForce RTX 4070 Ti SUPER 16G Ventus 3X, 16GB GDDR6X

Technical data cooler
Dimensions (L x W x H)	171,50 x 132,50 x 33,97mm
Material cooler	chrome-plated copper
Material cooler top	acrylic
Max working temperature	60°C
Pressure tested	0,8 bar
Threads	4 x G1/4"
Thickness cooling fins	0,4mm
Distance cooling fins	0,4mm
Illumination	digital aRGB LEDs
Power connector digital aRGB LEDs	3-Pin JST
Power digital aRGB LEDs	5V
Number of digital aRGB LEDs	12
Color	transparent

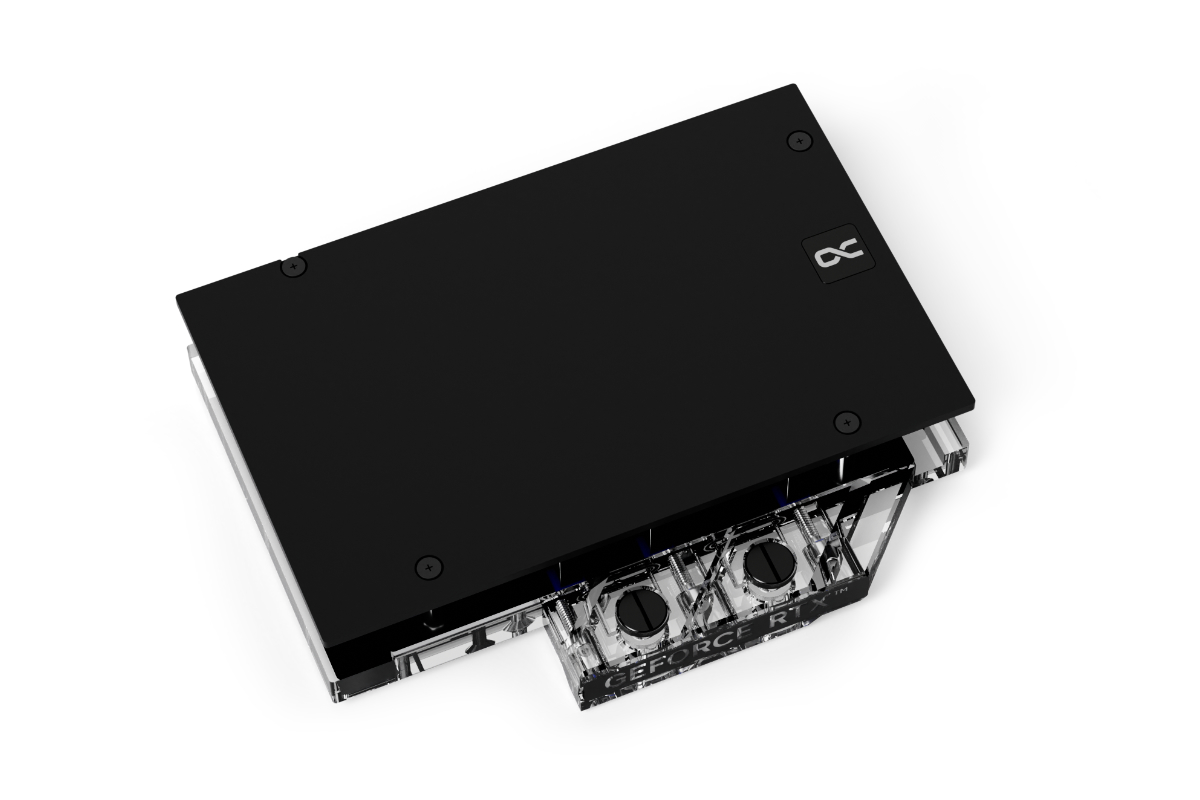

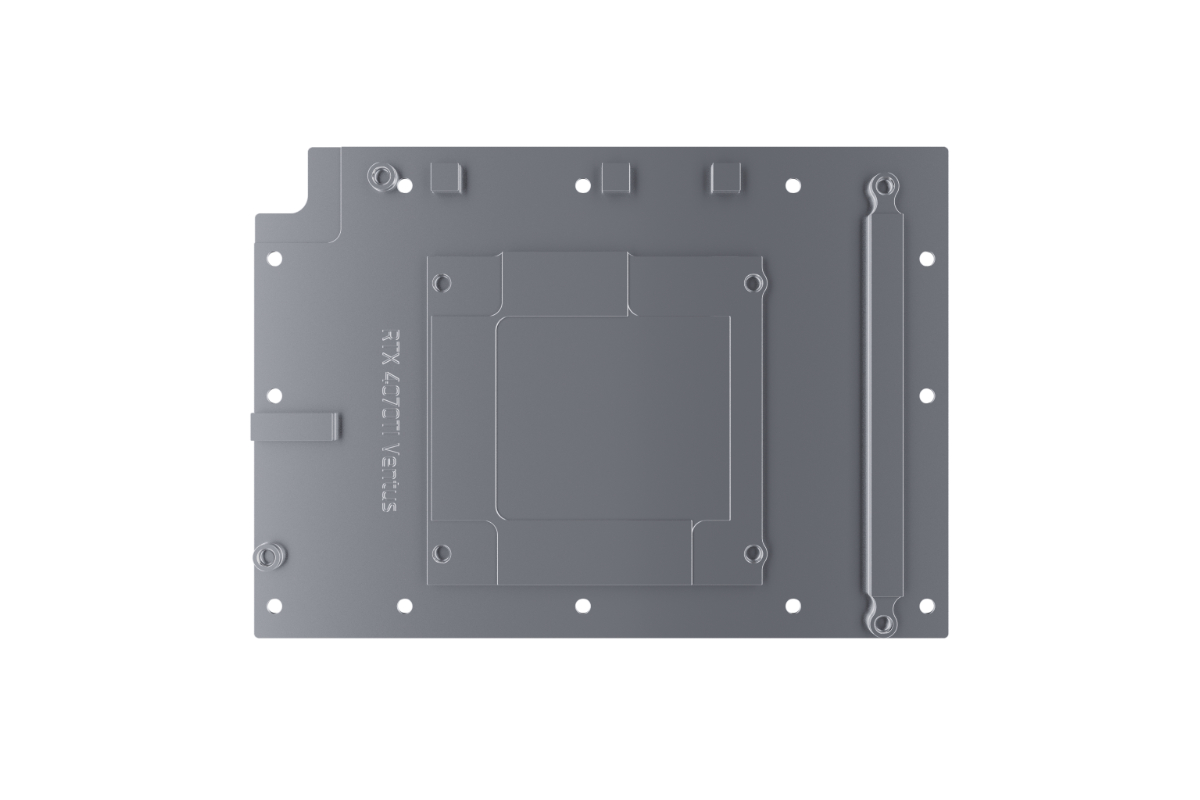

Technical data backplate
Dimensions (L x W x H)	171,50 x 108,00 x 6mm
Material	aluminium
Color	black
