Alphacool Core 120mm fan PWM 2500rpm (120x120x25mm)
- Producent: Alphacool
- Kod producenta: 24852
- Kod EAN: 4250197248525
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

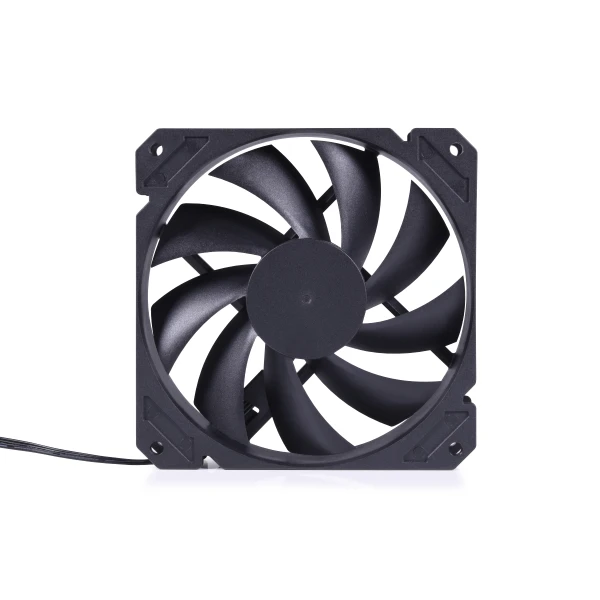

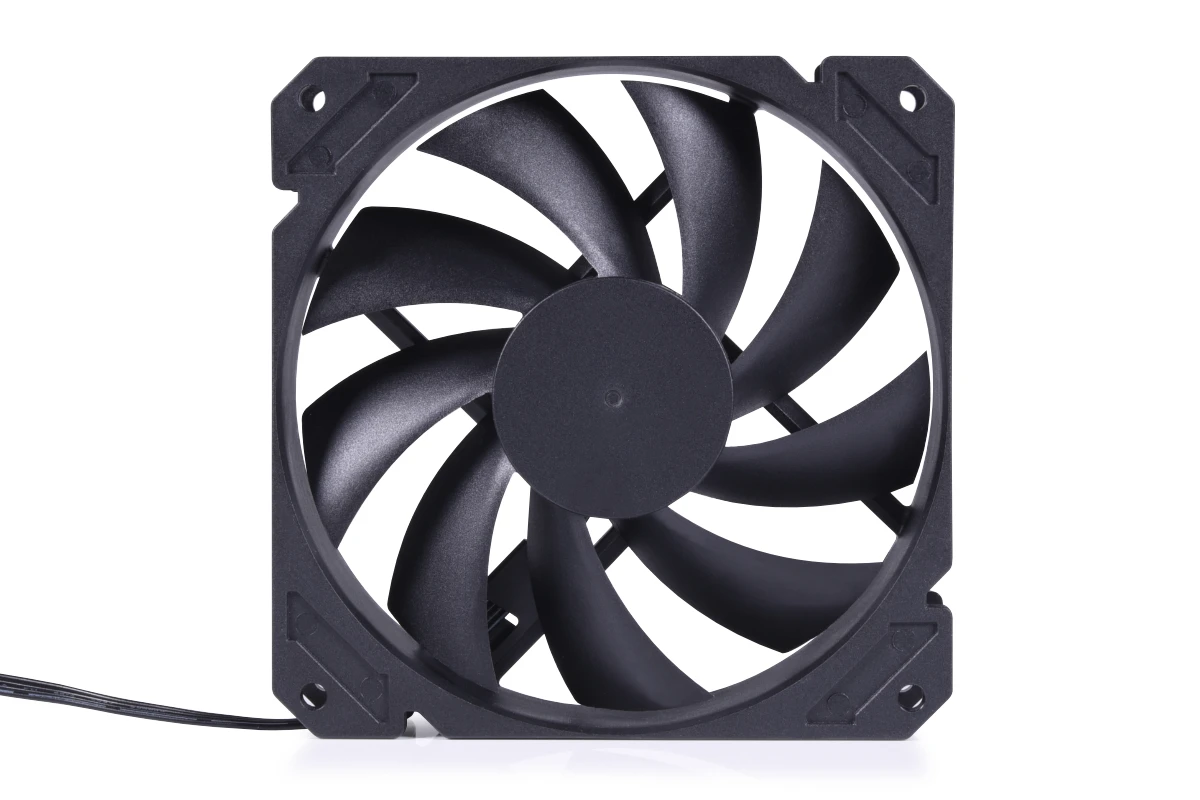

Alphacool's Core 120mm is a quiet and efficient fan with a wide control range up to 2500 rpm. The PWM controllable fan is not only suitable as a fan on CPU coolers or radiators. Due to its excellent performance values (throughput & static pressure), it can also be used as a case fan. The hydraulically mounted fan axis is smooth running and enables a long service life as well as quiet operation. If you are looking for a powerful fan without aRGB illumination, you will find it in Alpacool's Core 120mm model!
Connections

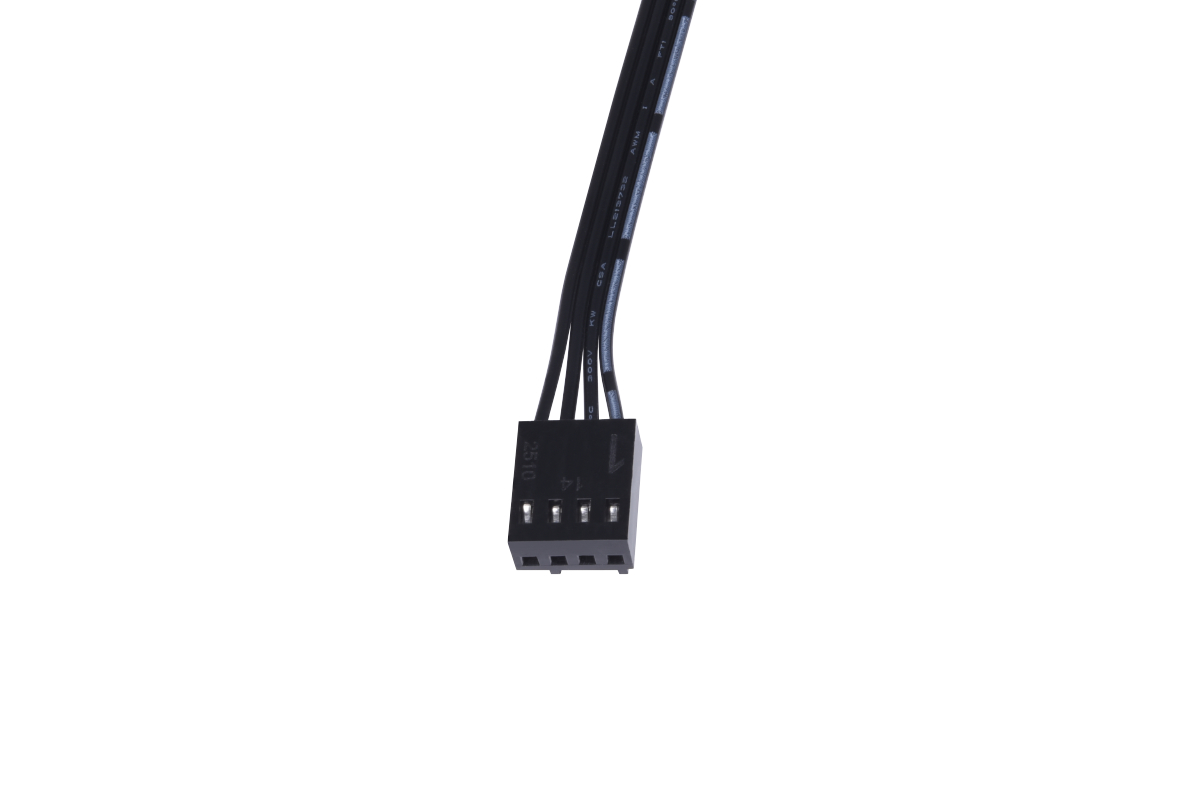

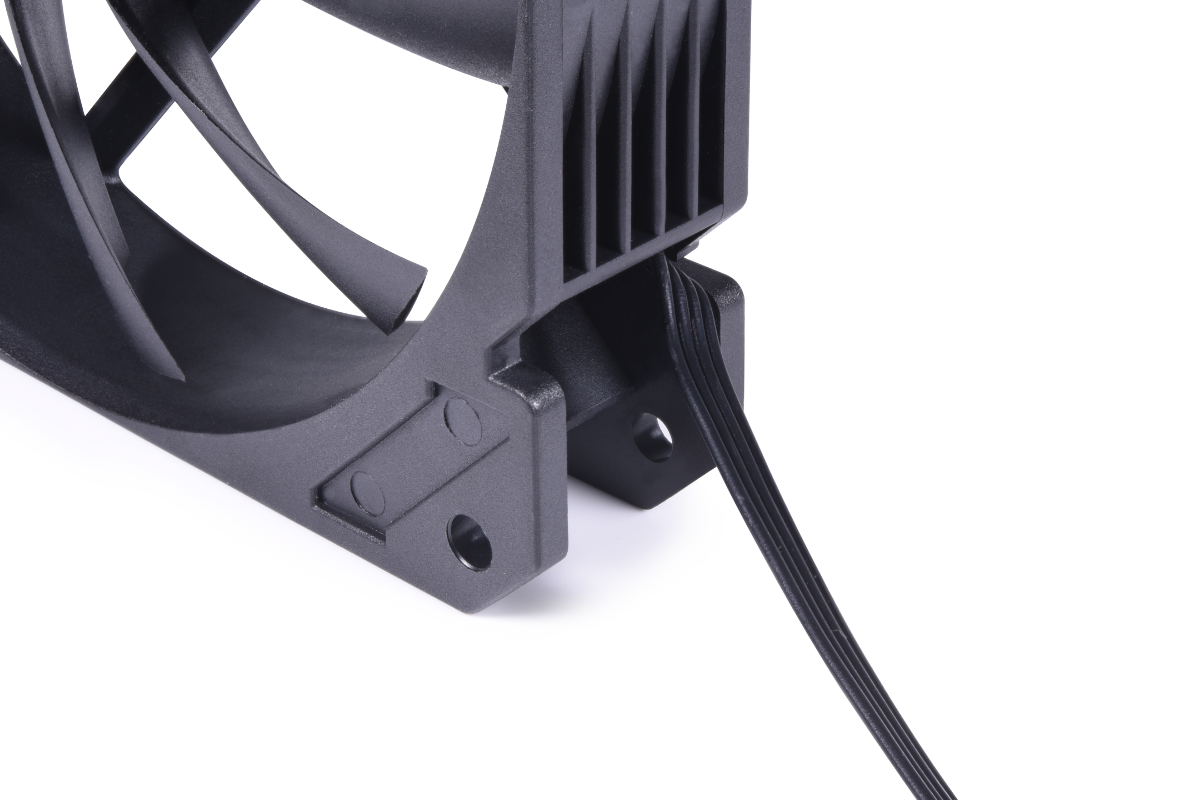

The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected directly to the motherboard or a dedicated controller without the use of additional adapter cables or extensions.
Control range
The fan can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. At maximum speed, it allows an airflow of 72.63 CFM combined with a high static pressure of 2.42 mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.
Technical data | |
Dimension (L x W x H) | 120 x 120 x 25mm |
Material | synthetic material (PBT UL94V-0) |
Bearing Type | hydraulic Bearing |
Rated Voltage | DC 12V |
Operating Voltage | DC 7-14V |
Start-up Voltage | 7V |
Rated Current | 0.3 (Max: 0.4) A |
Rated Power | 3.6 (Max: 4.8) W |
Control Range | 0 - 2500 rpm/min ±10% |
Max. Air Flow | 72.63 CFM |
Max. Static Pressure | 2.42 mm/H2O |
Noise level | 36.6 (Max: 37.8) dBA |
Life Expectance | 50000 h at 25 degrees celcius |
Connection | 4-Pin PWM |
Speed Control Mode | via PWM |
Operating Temperature | -10~+55 degrees celcius |
Other Features | Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22 |
