Alphacool Core Wind 360mm ST30 water cooling Set

Brak ocen

  • Producent: Alphacool
  • Alphacool
  • Kod producenta: 11987
  • Kod EAN: 4250197119870
  • Gwarancja: 24 miesiące

Dostępność:

Oczekujemy na dostawę

    Cena:

    1 367,30 zł

    przechowalnia

    • Koszt wysyłki: od 0 zł
    • Darmowa dostawa od 800,00 zł
    1367.3 In stock Alphacool Core Wind 360mm ST30 water cooling Set

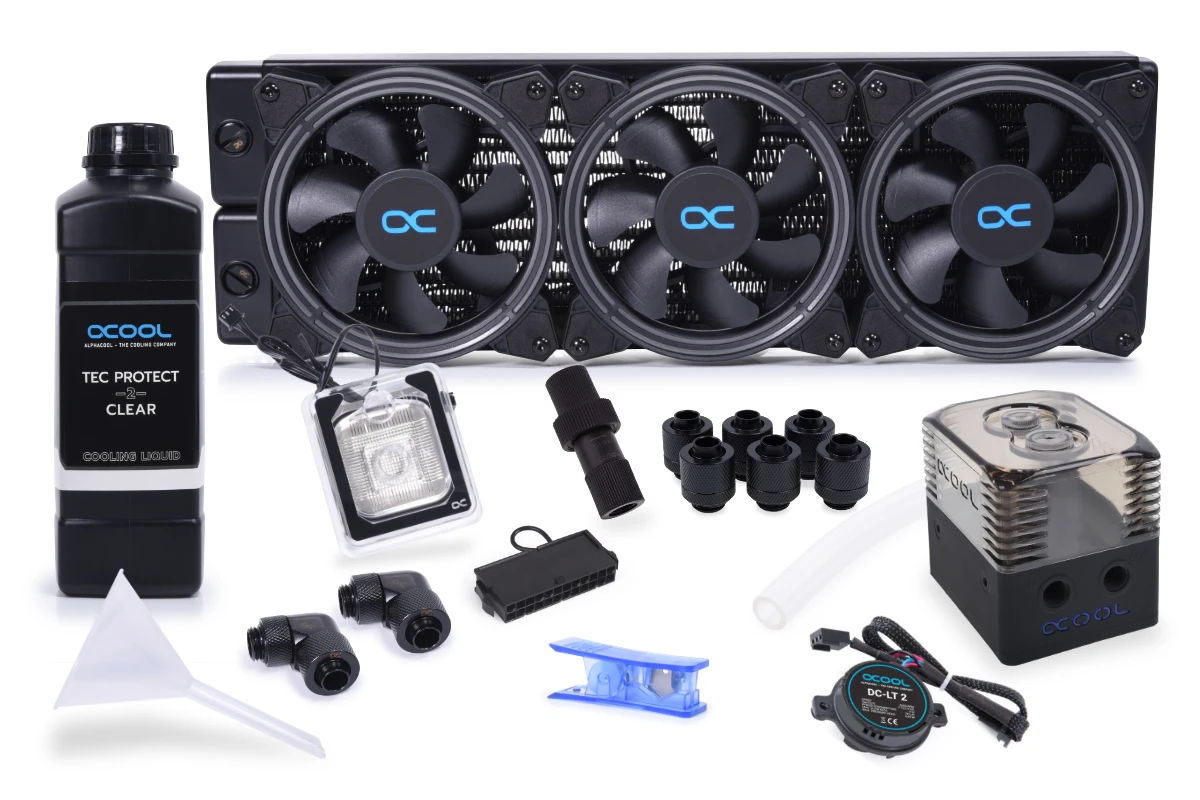

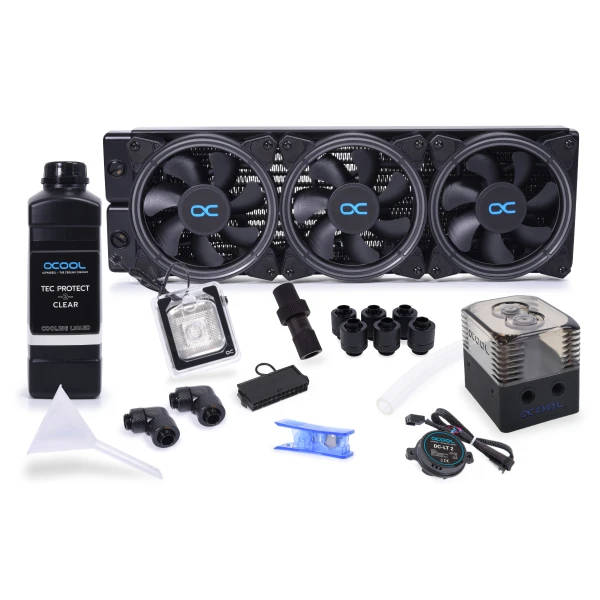

    With the Core Wind water cooling kit, Alphacool provides all the components needed to get started in the world of water cooling. The set is aimed not only at beginners, but also at enthusiasts. The selected components are optimally matched and come from Alphacool's DIY program. The choice of materials is still uncompromisingly based on copper or brass for all metals in order to guarantee performance-oriented CPU cooling. Due to the included quick-release fastener, additional components like radiators or GPU coolers can be integrated afterwards without having to drain or rebuild the water loop.

    Eisblock Aurora XP³ Light CPU-Cooler
    With the Eisblock Aurora XP³ Light you get a very compact CPU water cooler for all common mainstream sockets from AMD and Intel. The nickel-plated copper cooler base has an area of 56 x 56mm with cross-slot structure and 0.4 x 0.4mm thick pins through which the water can flow. Due to the extremely large cooling surface, the water can effectively absorb and dissipate heat from the cooler base. The Aurora design in conjunction with the 9 addressable digital aRGB LEDs offers many options for outstanding CPU water cooler illumination.

    Eisstation DC-LT Reservoir & DC-LT 2 Pump
    The Eisstation reservoir is extremely compact and flexible in use due to a variety of mounting options. Three G1/4" connections allow uncomplicated integration into the water loop. The additional G3/8" connection facilitates the filling of the reservoir. The DC-LT 2 pump is installed in the bottom of the Eisstation and is not visible from the outside. Due to its design, the pump is extremely quiet without having to sacrifice performance.

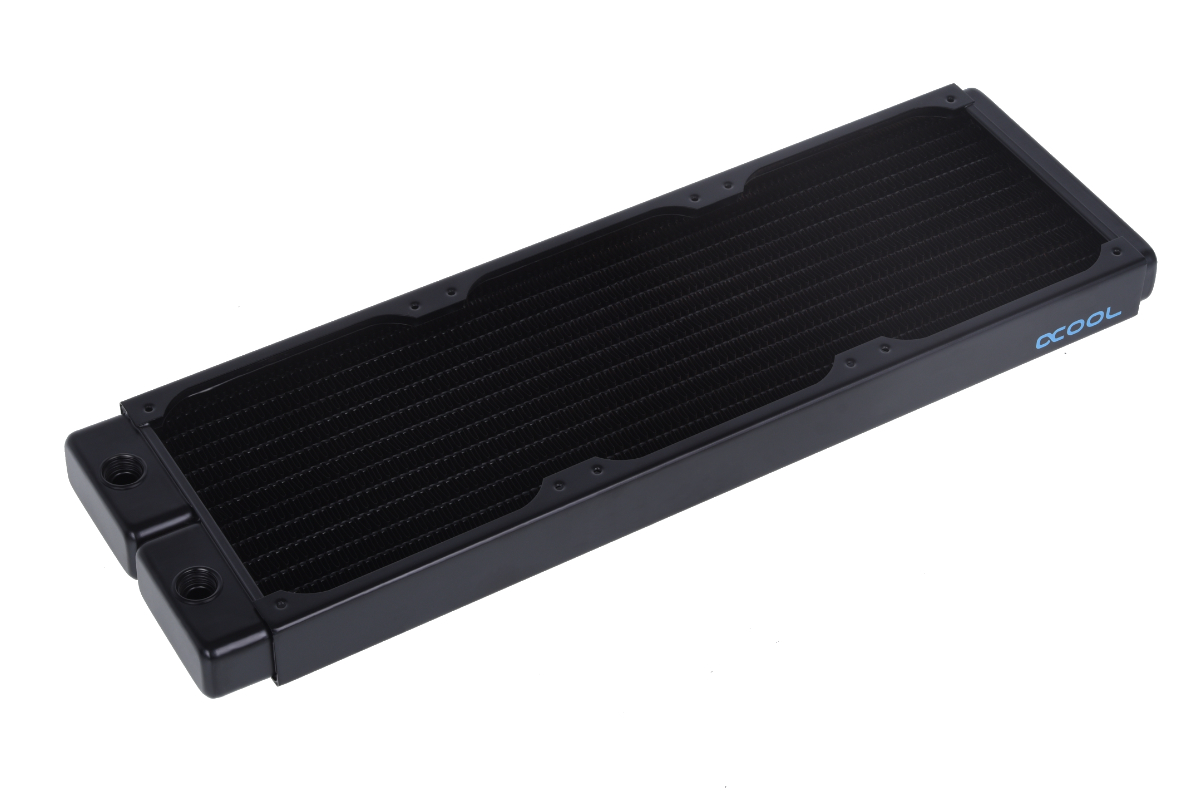

    NexXxoS ST30 Full Copper 360mm Radiator V.2
    All water-bearing parts and the cooling fins are made of pure copper. Thus, the NexXxoS ST30 achieves the highest thermal conductivity value of all radiators on the market and can easily dissipate extremely high waste heat. The radiator has two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side is a fill or vent port, which can be used to fill and drain the water loop.

    Eiszyklon Aurora LUX PRO Digital RGB Fan (120x120x25mm)
    The Eiszyklon Aurora LUX Pro fan offers a wide range of control as well as superior digital aRGB LED lighting. The individually controllable 5V aRGB LEDs coupled with the special design of the fan frame create unique lighting effects. The fan can be controlled from 800 to 2000 rpm via the 4-pin PWM connector. At 800 rpm, the fan is nearly silent, but still provides good airflow paired with high static pressure.

    AlphaTube HF 13/10mm tubing & HF G1/4" quick connect coupling
    The clear 13/10mm hose made of PVC offers comfortable handling when routing and connecting water cooling components. It has good routing and kinking characteristics and allows uncomplicated bridging of tight bend radii. The HF quick-connect coupling included in the scope of delivery allows easy integration of further components at a later date without having to drain or rebuild the water loop.

    Eiszapfen 13/10mm G1/4" Connections
    All the requirements for a connection are met here: Highflow, shape, machining and coloring. Special manufacturing processes firmly bond the coating to the substrate. This increases the longevity of the color and prevents the coating from flaking off.

    Thermal Paste & Coolant
    The included thermal paste is Alphacool's Subzero with a thermal conductivity of 16 W/mk. The electrically non-conductive Thermal Grease is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Tec Protect 2 Clear in the 1 liter bottle is used as the coolant. Tec Protect 2 Clear is a ready-to-use mixture that already contains all the necessary additives and can be used straight from the bottle.

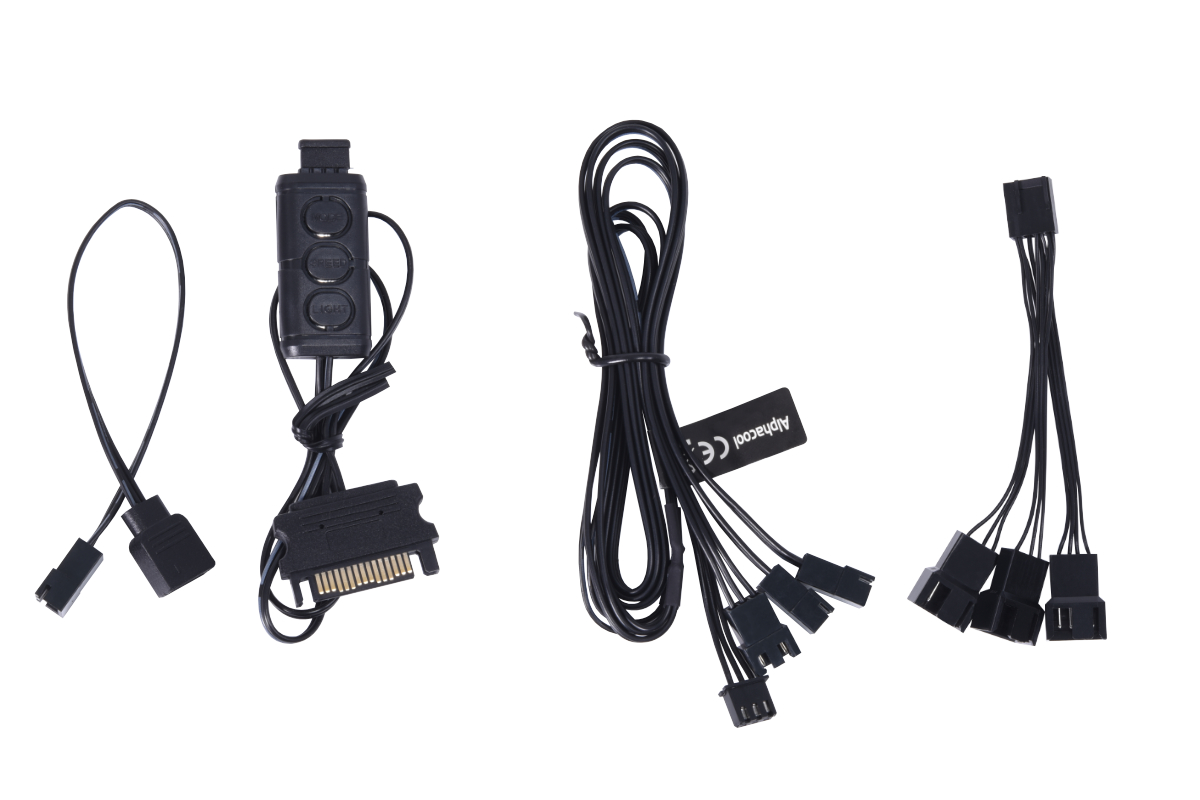

    aRGB Controller, Cables, Tools & Accessories
    All cables (aRGB, PWM) and controllers needed to use & control the pump, fan and aRGB lighting are included. The accessory package also includes important tools like hose cutter, filling bottle and an ATX 24-pin jumper. Thus, the construction of the custom loop can be started "out-of-the-box" immediately.



    Compatibility:
    Intel: 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066
    AMD: AM2 / AM2+ / AM3 / AM3+ / AM4 / AM5



    Technical data CPU cooler
    Dimensions (L x W x H) 73 x 63 x 21mm
    Material cooler nickel-plated copper
    Material housing acrylic
    Threads 2 x G1/4“
    Illumination 3-Pin 5V, 9 digital aRGB LEDs
    Max working temperature 60°C
    Pressure tested 0,8 Bar

    Technical data reservoir
    Dimensions (L x W x H) 102 x 82 x 85mm
    Capacity 250 ml
    Material housing nylon, PMMA
    Threads 3x G1/4“ IT | 1x 3/8" IT
    Illumination 4x 5mm LED
    Max working temperature 60°C
    Pressure tested 0,8 Bar

    Technical data pump
    Dimensions (L x W x H) 52 x 41 x 18mm
    Material synthetic material, ceramics
    Threads 3-Pin JST
    Speed 2600 rpm
    Operating voltage 7 - 13,5V
    Power consumption 3.2W
    Maximum pumping head 0,95m
    Maximum flow rate 75L/h
    Max working temperature 60°C
    Pressure tested 0,8 Bar

    Technical data radiator
    Dimensions (L x W x H) 391,5 x 124 x 30mm (+/- 3%)
    Material cooling fins, pre-chambers & channels copper
    Material threads brass
    Material outer housing stainless steel
    Threads 4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4"
    Possible fan size 120mm
    Possible fan assembly 3x one-sided / 6x both-sided
    Fin density 15
    Max working temperature 60°C
    Pressure tested 0,8 Bar

    Technical data fan
    Dimensions (L x W x H) 120 x 120 x 25mm
    Speed 800 - 2000 RPM (+/- 10%)
    Threads 4-Pin PWM
    Voltage 12V DC
    Current consumption 4,8W
    Static pressure 2,0 mm H2O
    Max. air flow 104,49 m³/h
    Speedometer signal yes
    Illumination 3-Pin 5V, 16 digital aRGB LEDs

    Technical data tube
    Dimensions (outer/inner) 13/10mm
    Material PVC
    Length 3m
    Color clear

    Technical data 13/10mm G1/4" fittings
    Material brass
    Threads 1x G1/4" OT | 1x tube connection 13/10mm
    Color black

    Technical data quick release coupling
    Dimensions (L x D) 60,3 x 26,1mm
    Material synthetic material
    Threads 2x G1/4“ IT
    Color black

    Technical data coolant
    Ingredients osmose water(93,8%), glysofor L (4,2%), RHOBA KLA (2%)
    Boiling point 105°C
    Freezing point -10°C
    Packaging unit 1L bottle
    Color clear (not UV-active)

    Technical thermal grease
    Viscosity (mPa. s) 3.000.000
    Specific Gravity (g/cm³) 2,7
    Thermal Conductivity (w/m-K) 16
    Temperature Stability (Degree Celcius) -50 ~ 200
    Color gray
