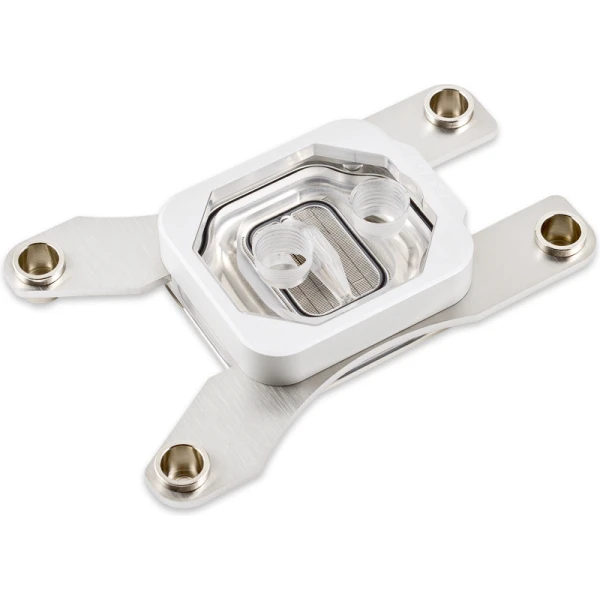

Aquacomputer cuplex kryos NEXT RGBpx TR4/sTRX4, acrylic/nickel
- Producent: Aqua Computer
- Kod producenta: 21804
- Kod EAN:
- Gwarancja: 24 miesiące
Dostępność:
Towar wyprzedany
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
The cuplex kryos NEXT marks a new milestone in CPU water block development. Every detail has been analyzed, optimized and tested to achieve perfection in cooling performance, installation procedure and product features. The result is not just a CPU water block with outstanding performance - it is a product series with various models differing in color and functionality.

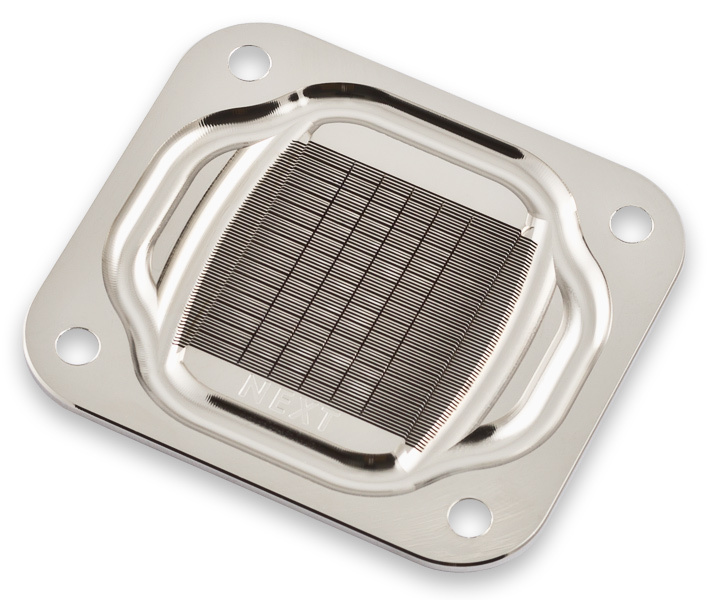

Base part with micro structure
The base part of the cuplex kryos NEXT is equipped with an extremely fine micro structure, the structural width is lower than 200 µm. The coolant is injected centrally through a slot-shaped nozzle and then runs to both sides of the structure. The base itself is manufactured from copper, nickel plated copper or .925 sterling silver depending on model.

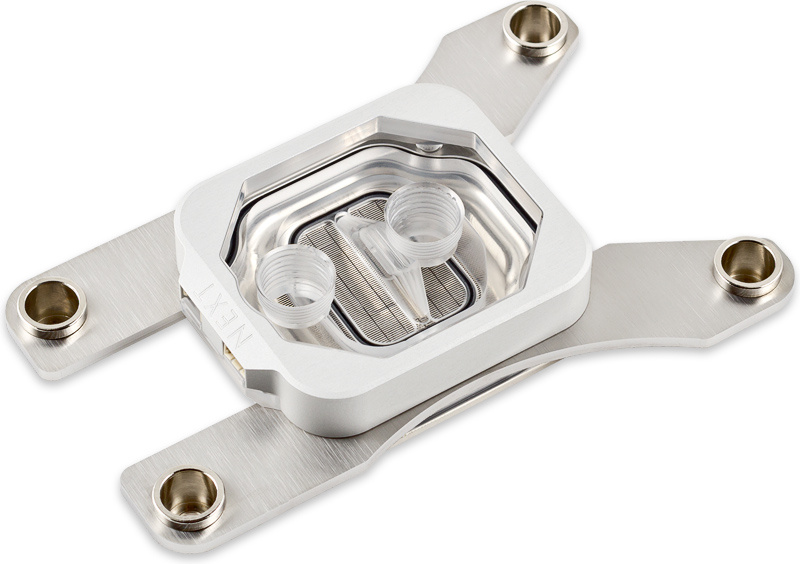

Retention system
The cuplex kryos NEXT retention system consists of 2.5 mm thick stainless steel plates equipped with nickel plated spring cups. Springs and knurled screws secure the water block on the motherboard, the retention system has a very clean look when installed. All retention system versions feature a mechanical stop for optimum clamping force and even force distribution. The knurled screws can be installed by hand, additionally a hexagon socket wrench can be used for easy installation.
Water blocks for socket 115x or AM3 include a steel back plate with silicone insulation to stabilize the CPU region of the motherboard. Socket 2011, 2066, AM4 und TR4 motherboards already include a back plate as part of the CPU socket, therefore no additional back plate is required.
For optimum performance, every cuplex kryos NEXT ships with outstanding thermal compound. A syringe with 0.5 grams of premium grade thermal compound is included, complete with plastic spatula. This compound has a high thermal conductivity and spreads out thin and evenly between CPU and water block due to its low viscosity. The amount is sufficient for approximately five applications.

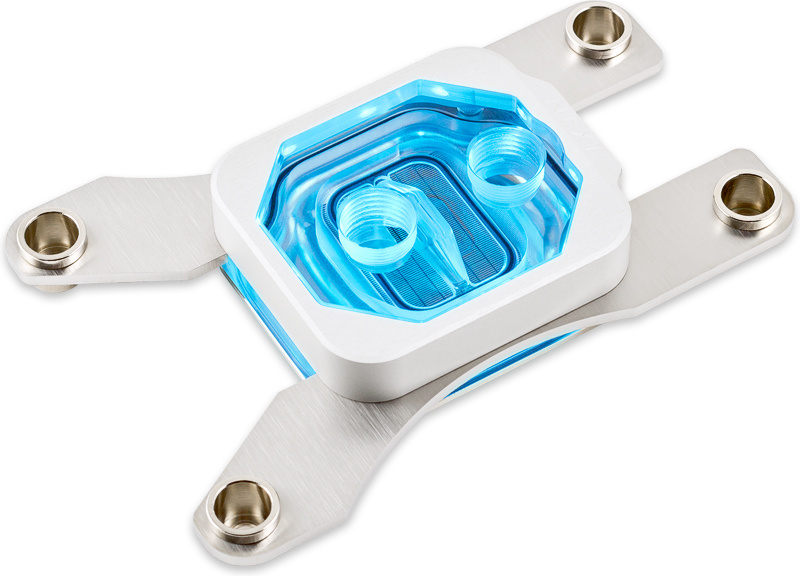

Integrated RGBpx LEDs
Below the silver colored aluminum frame, 11 addressable RGBpx LEDs are integrated into the water block and can be connected to an Aqua Computer device with a RGBpx output.
Material combination
Acrylic/nickel: Top part acrylic glass with anodized aluminum frame, base nickel plated copper
Technical details
Dimensions:
Socket TTR4/sTRX4: 121 x 82 x 22 mm (not including screws)
Connection threads: G1/4
Distance between threads: 25.5 mm

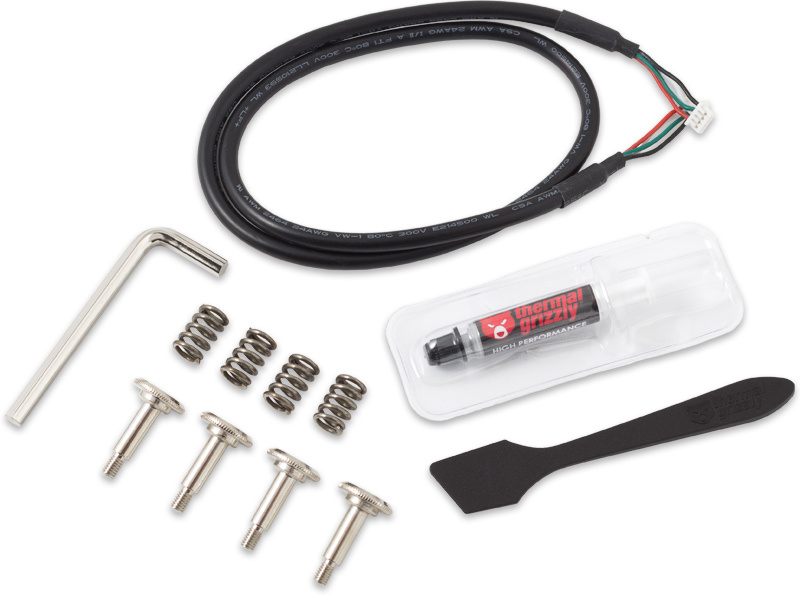

Scope of delivery
- Water block
- Mounting material (screws, springs, etc.)
- Premium thermal compound, approx. 0.5 grams in syringe
- Plastic spatula
- RGBpx connection cable 50 cm
- Instruction manual
Video presentation:
