Alphacool Eisblock Aurora Acetal GPX-A Radeon RX 5700/5700XT Reference

The new generation of Alphacool GPU coolers has arrived! The Alphacool Eisblock Aurora Plexi GPX combines outstanding performance with breath-taking aesthetics.



What has changed?



This is where Alphacool's 16 years of experience pays off! The already powerful Eisblocks have been further optimized: A new look, thinner thermal pads (1mm), a thinner copper block (5.5mm) and a significantly improved flow rate are just some of the important changes.



And the design?



Alphacool places much more emphasis on the aesthetics of this product. The cooler looks elegant and clean, ensuring that it can be easily integrated into almost any system! The opening on the lower side of the block also keeps the lettering of your graphics card in full focus!



What else?

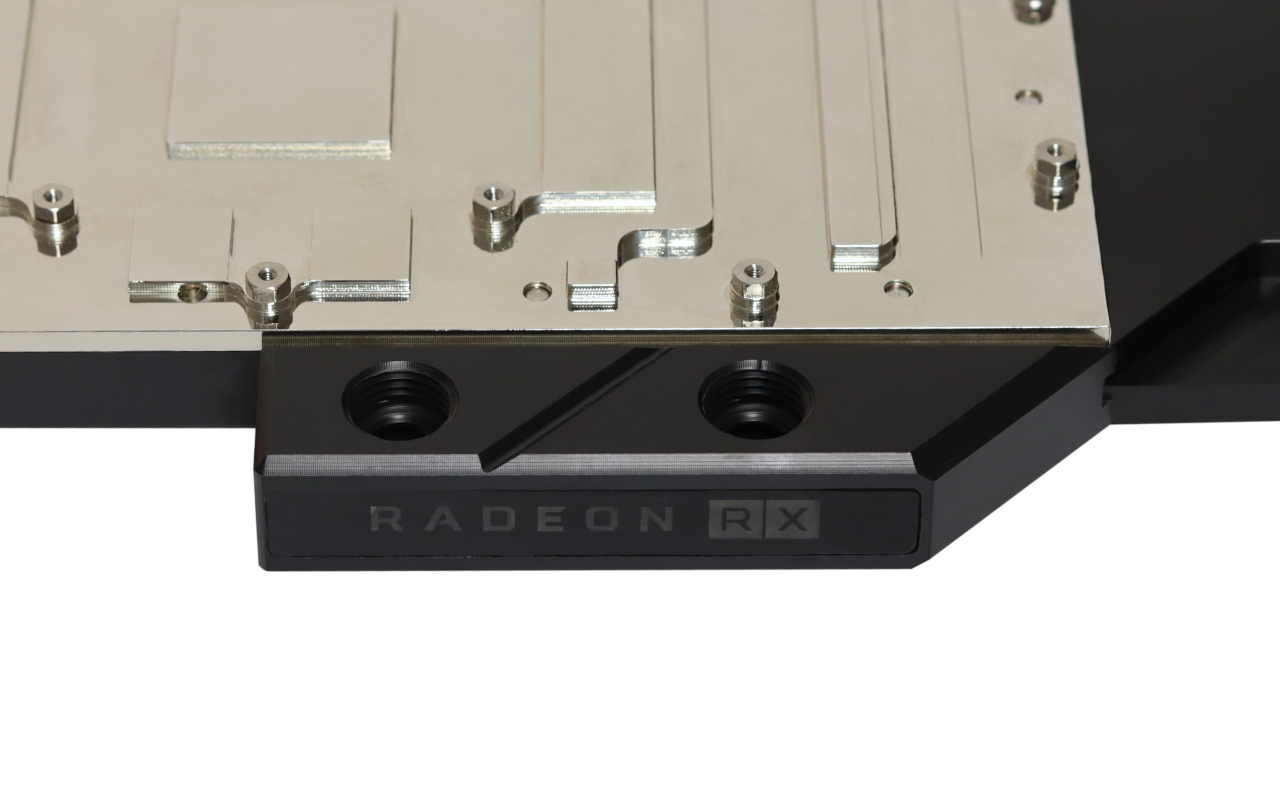

There have been no compromises with the materials and the cooling block is still 100% copper. Now however, the nickel-plating of the cooler has been further optimised. This increases acid resistance and almost eliminates the risk of chipping the nickel-plating. A further highlight is the use of the patented Alphacool stop plugs: These sit flush with the surface of the cooler and form a flat surface when screwed in. No more annoying protruding stop fittings! Finally, the branding of the Eisblock has been adapted. It is now much more discreet and fits perfectly into the already elegant appearance.



With this product Alphacool has once again proven its technical know-how! Check it out for yourself and let your system shine in a new light!







Technical Details:



W x T x H: 120,4 x 266,7 x 25,3 mm

Net weight: 726 g

Max working temperature: 60 °C

Material cooler: nickel plated copper

Material top: plexiglass

Thikness of fins: 0,6 mm

Threads: 4 x G1/4“

Power supply Digital RGB: 3-Pin 5V

Pressure tested: 1,5 Bar

Compatible to:

AMD RX 5700 Reference Design

AMD RX 5700XT Reference Design

AMD Radeon RX 5700 XT 50th Anniversary, 8GB GDDR6

AMD Radeon RX 5700 XT, 8GB GDDR6

ASRock Radeon RX 5700 XT, 8GB GDDR6, (90-GA15ZZ-00UANF)

ASRock Radeon RX 5700, 8GB GDDR6, (90-GA16ZZ-00UANF)

ASUS Radeon RX 5700 XT, RX5700XT-8G, 8GB GDDR6, (90YVOD8O-UONA00)

ASUS Radeon RX 5700, RX5700-8G, 8GB GDDR6, (90YVOD7O-UONA00)

Gigabyte Radeon RX 5700 8G, 8GB GDDR6, (GV-R57-8GD-B)

Gigabyte Radeon RX 5700 XT 8G, 8GB GDDR6, (GV-R57XT-8GD-B)

MSI Radeon RX 5700 8G, 8GB GDDR6, (V803-891R)

MSI Radeon RX 5700 XT 8G, 8GB GDDR6, (V803-890R)

PowerColor Radeon RX 5700 8G, 8GB GDDR6, HDMI, 3x DP (21294-01-40G)

PowerColor Radeon RX 5700 XT 8G, 8GB GDDR6, (AXRX 5700XT 8GBD6-M3DH)

Sapphire Radeon RX 5700 8G, 8GB GDDR6, (21294-01-20G)

Sapphire Radeon RX 5700 XT 8G, 8GB GDDR6, (21293-01-40G)

XFX Radeon RX 5700 XT, 8GB GDDR6, (RX-57XT8MFD6)
