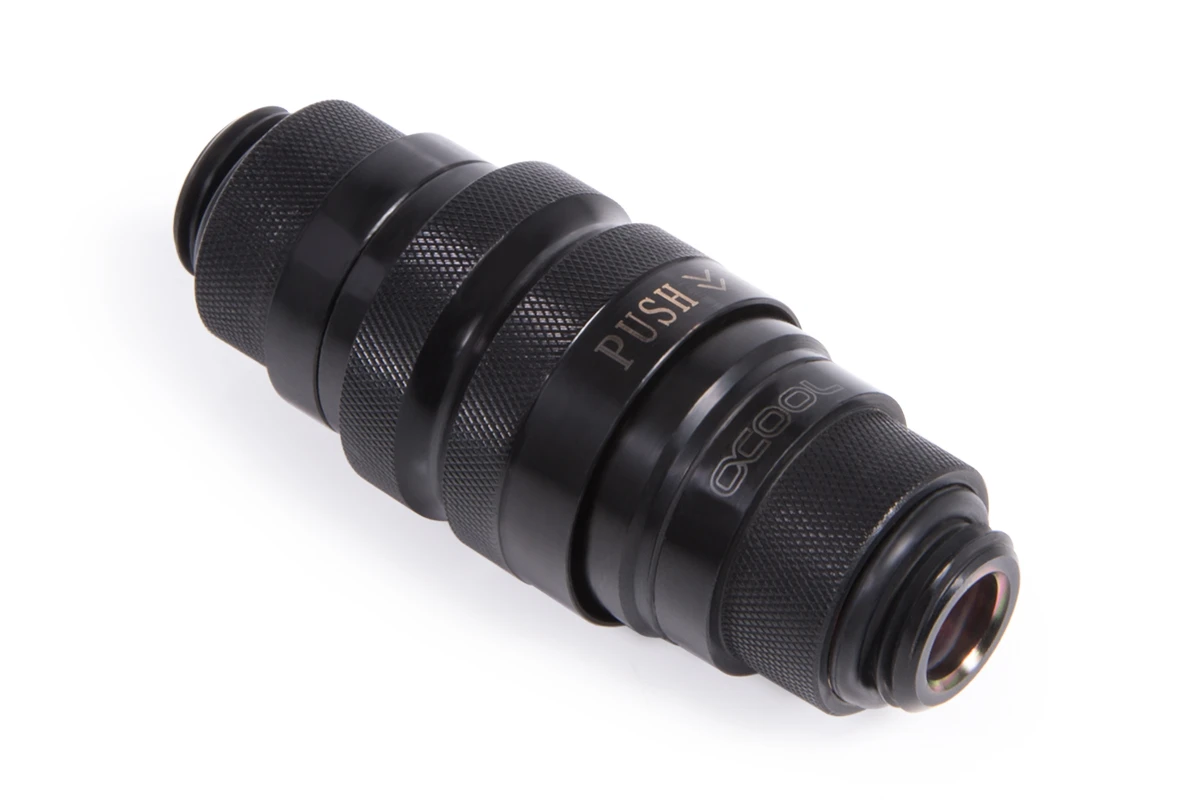

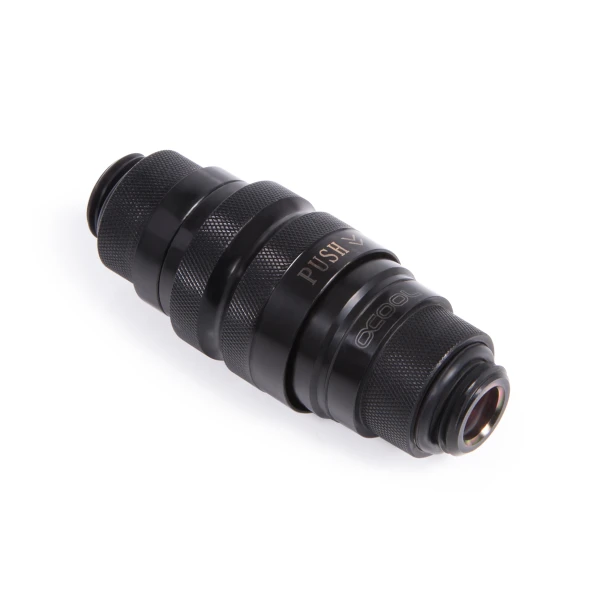

Alphacool Eiszapfen quick release connector kit G1/4 outer thread - Deep Black

The Eiszapfen series represents the high-end version of the Alphacool product series. It is designed to appeal to enthusiasts and professional users and offer them the best in quality, functionality and design.



How Much Water Comes out When Connecting?

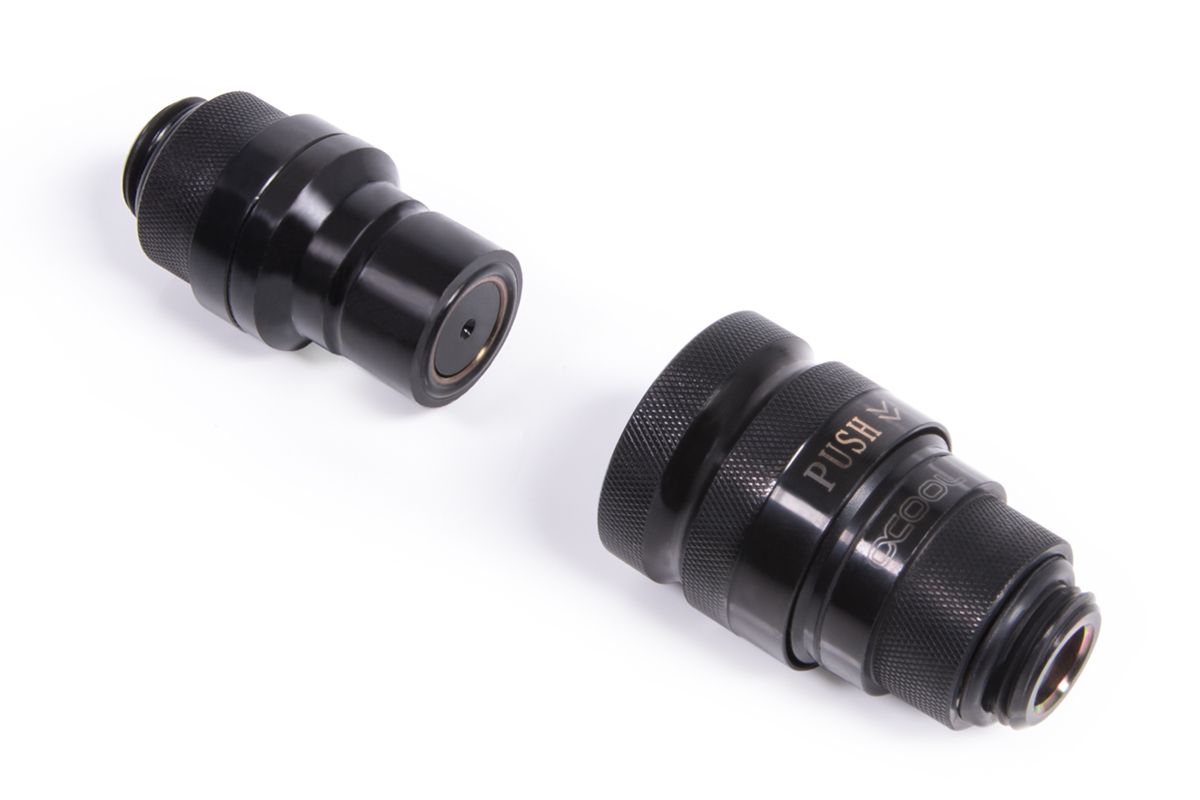

Thanks to an ingenious locking and sealing system and the N.D.S.L (no drip, no splash, no leak) technology, the loss of water when opening the quick release fastener is minimal. Only a tiny drop of water escapes. The closure is released simply by pulling the connecting ring. In doing so, the counterpart will automatically spring out of the quick release fastener. To connect the two pieces, simply push them together. This action is very easy and carefree.



The Alphacool Eiszapfen quick-release fasteners are available in various designs but can all be combined with each other.





Technical data (kit):

L x D: 62,5 x 24 mm

Net weight: 95 g

Material: Brass

Threads: 2 x G1/4“ OT

Thread length: 5 mm

Type of quick release connector: Push In



Technical data (coupling male):

L x D: 36,5 x 20,5 mm

Net weight: 32 g

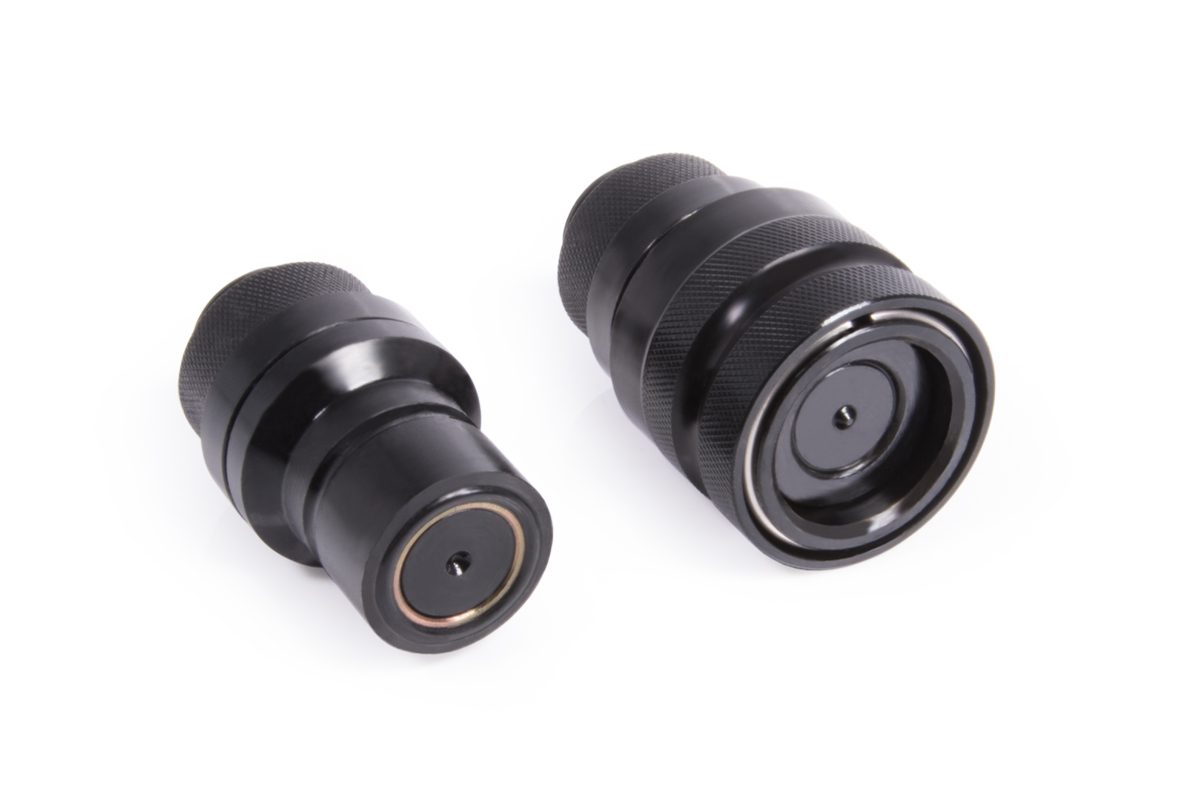

Technical data (coupling female):

L x D: 39,5 x 24 mm

Net weight: 63 g
