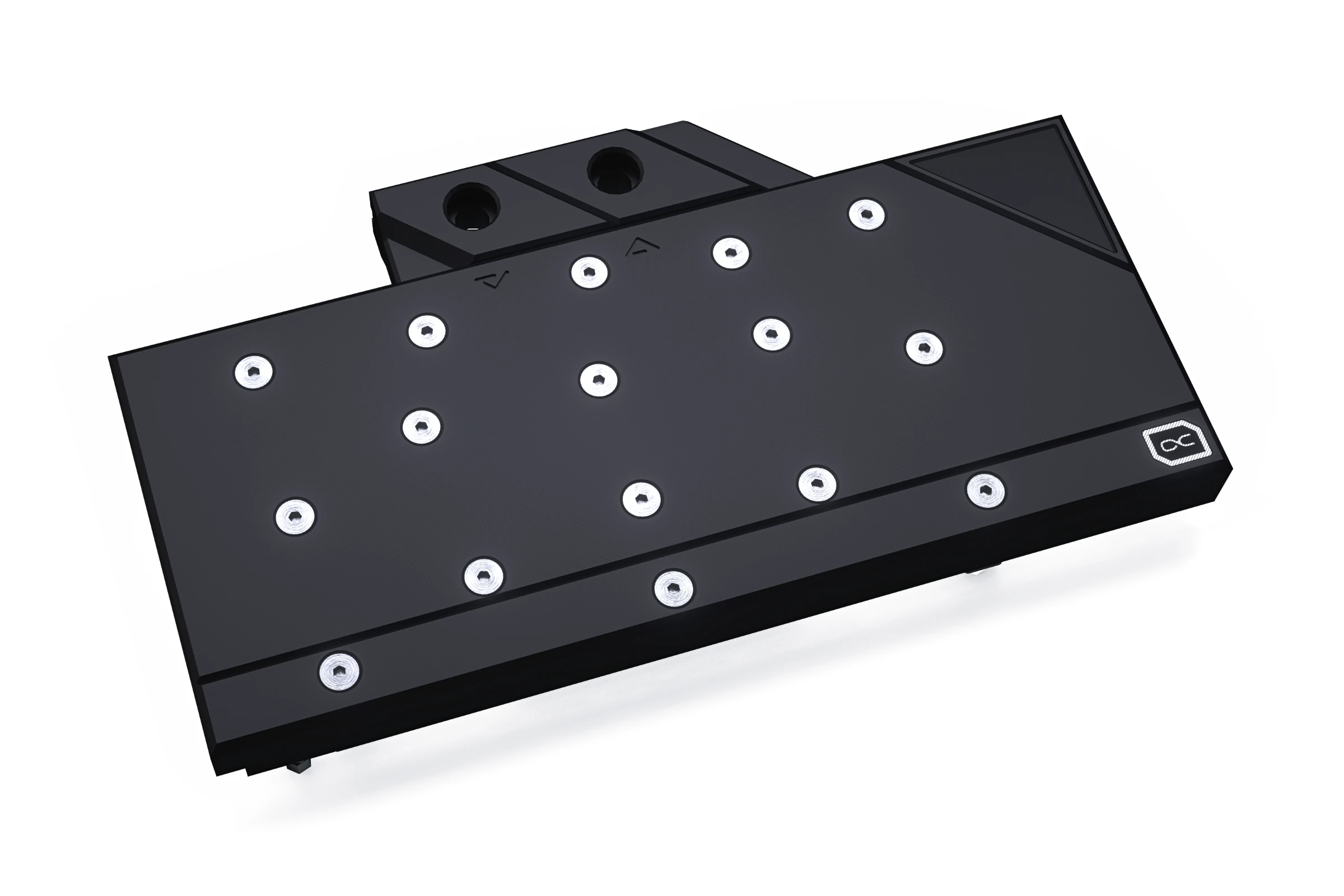

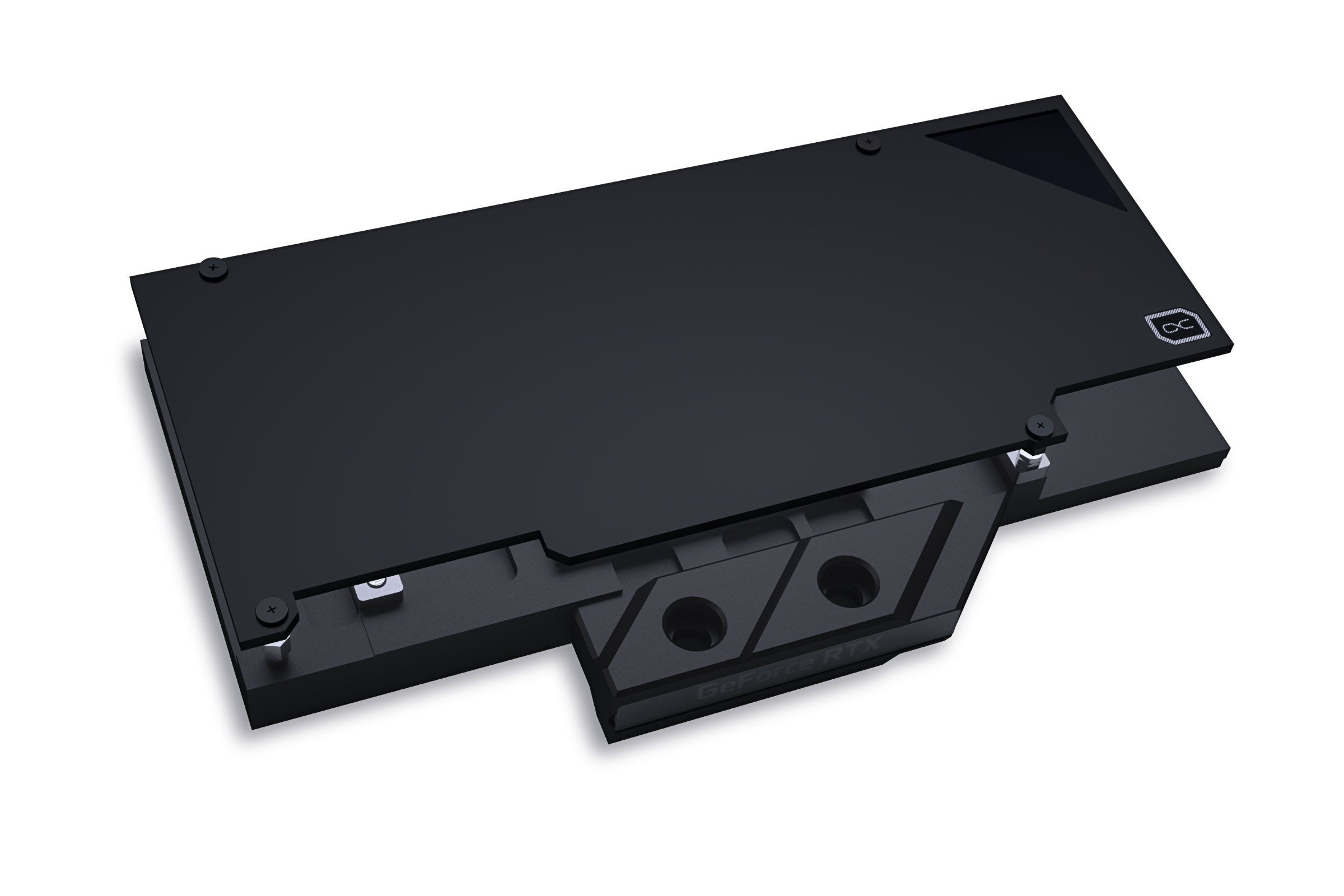

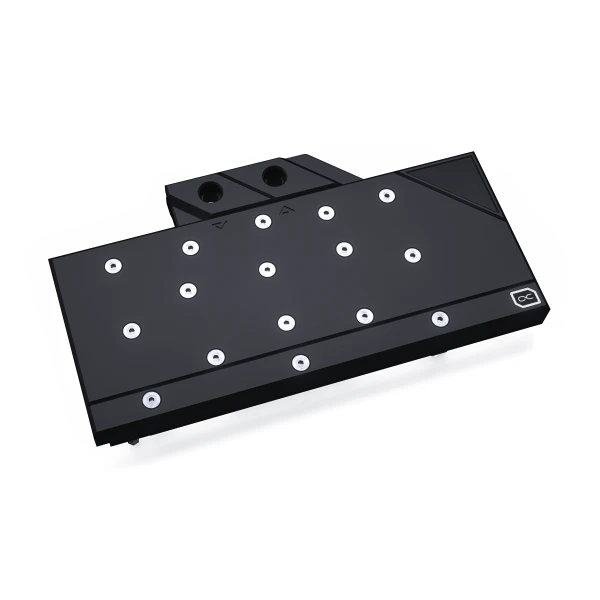

Alphacool Eisblock Aurora Acetal GPX-N RTX 3090/3080 with Backplate (Reference)

The Alphacool Aurora Acetal GPX-N RTX 3080/3090 Eisblock combines style with performance. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Acetal GPX Eisblock

More Performance!
During the development of the EIsblock Aurora GPX-N RTX 3080/3090 graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance.

Copper or Aluminium?
Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080/3090 Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling.

Is There Anything Else New?
The Eisblock Aurora GPX-N RTX 3080/3090 also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top. On the front of the terminal you can see the corresponding names of the compatible graphic card types. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler.

The Alphacool Aurora GPX-N RTX 3080/3090 Acetal is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation.

Note:
- This article is delivered with a backplate
- The Founders Edition, does NOT correspond to the Reference Design!

Technical data:
L x W x B: 224,9 x 121,4 x 25,5 mm
Material cooler: Nickle plated copper
Material top: Acetal
Thickness cooling fins: 0,6 mm
Threads: 4x G1/4“

Compatibility list:
ATTENTION: The following models were visually checked for compatibility. Please note that this list may change at short notice.

More compatible models will follow in this list for this cooler. We are currently checking other PCB designs from various manufacturers!

RTX 3080 TI
Gainward GeForce RTX 3080 Ti 12GB Phoenix (471056224-2379)
Palit GeForce RTX 3080 Ti GamingPro
INNO3D GEFORCE RTX 3080 TI ICHILL X4
INNO3D GEFORCE RTX 3080 TI ICHILL FROSTBITE
INNO3D GEFORCE RTX 3080 TI ICHILL X3
INNO3D GEFORCE RTX 3080 TI X3
INNO3D GEFORCE RTX 3080 TI X3 OC
Zotac GeForce RTX 3080 Ti AMP HoloBlack
Zotac Gaming GeForce RTX 3080 Ti AMP Holo (ZT-A30810F-10P)
Zotac Gaming GeForce RTX 3080 Ti Trinity (ZT-A30810D-10P)
Zotac Gaming GeForce RTX 3080 Ti Trinity OC (ZT-A30810J-10P)

RTX 3080
Zotac GAMING GeForce RTX 3080 Trinity (ZT-A30800D-10P)
Zotac Gaming GeForce RTX 3080 Trinity OC (ZT-A30800J-10P)
PNY GeForce RTX 3080 XLR8 Gaming EPIC-X RGB    10240 MB GDDR6X (VCG308010TFXMPB)
PNY GeForce RTX 3080 XLR8 Gaming EPIC-X RGB 10240 MB GDDR6X    (VCG308010TFXPPB)
Inno3D GeForce RTX 3080 iChill X4 10240 MB GDDR6X (C30804-106XX-1810VA36)
Inno3D GeForce RTX 3080 Twin X2 OC 10240 MB GDDR6X (N30802-106XX-1810VA34)
Inno3D GeForce RTX 3080 iChill X3 10240 MB GDDR6X (C30803-106XX-1810VA37)
Palit GeForce RTX™ 3080 GamingPro (NED30800191A-132AA)
Palit GeForce RTX™ 3080 GamingPro OC (NED3080S191A-132AA)
Galax GeForce RTX 3080 SG 10GB GDDR6X 320-bit DP*3/HDMI (38NWM3MD99NN)
KFA2 GeForce RTX 3080 SG 10GB GDDR6X 320-bit DP*3/HDMI (38NWM3MD99NK)
Gainward RTX 3080 Phoenix
Gainward RTX 3080 Phoenix GS
Galakuro NVIDIA GEFORCE RTX 3080 GG-RTX3080-E10GB/TP

RTX 3090
PNY GeForce RTX 3090 XLR8 Gaming EPIC-X RGB, 24576 MB GDDR6X (VCG309024TFXPPB)
Inno3D GeForce RTX 3090 iChill X3, 24576 MB GDDR6X (C30903-246XX-1880VA37)
Inno3D GeForce RTX 3090 Gaming X3, 24576 MB GDDR6X (N30903-246X-1880VA37N)
Inno3D GeForce RTX 3090 iChill X4, 24576 MB GDDR6X (C30904-246XX-1880VA36)
Zotac GeForce RTX 3090 Trinity, 24576 MB GDDR6X (ZT-A30900D-10P)
Palit GeForce RTX™ 3080 GamingPro (NED3090019SB-132BA)
Palit GeForce RTX™ 3080 GamingPro OC (NED3090S19SB-132BA)
Galax GeForce RTX 3090 SG 24GB GDDR6X 320-bit DP*3/HDMI/ (39NSM5MD1GNA)
KFA2 GeForce RTX 3090 SG 24GB GDDR6X 320-bit DP*3/HDMI/
Gainward RTX 3090 Phoenix
Gainward RTX 3090 Phoenix GS
Galakuro NVIDIA GEFORCE RTX 3090 GG-RTX3090-E24GB/TP
