Aquacomputer Flow sensor high flow LT, G1/4
- Producent: Aqua Computer
- Kod producenta: 53291
- Kod EAN:
- Gwarancja: 24 miesiące
Dostępność:
Dostępny
Dostępna ilość:
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

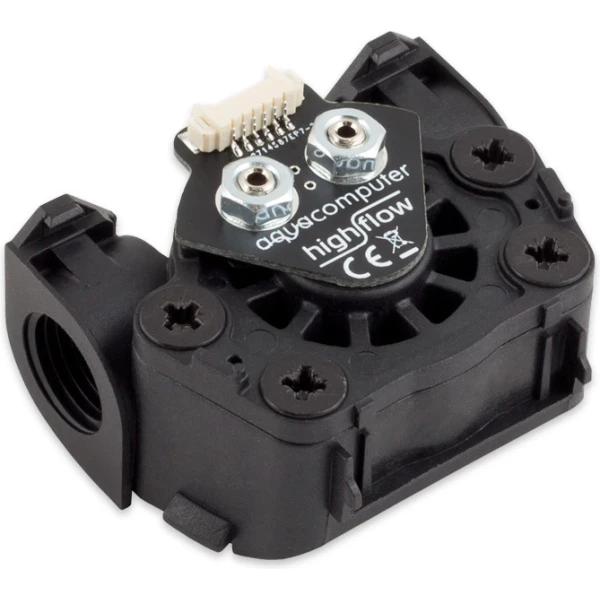

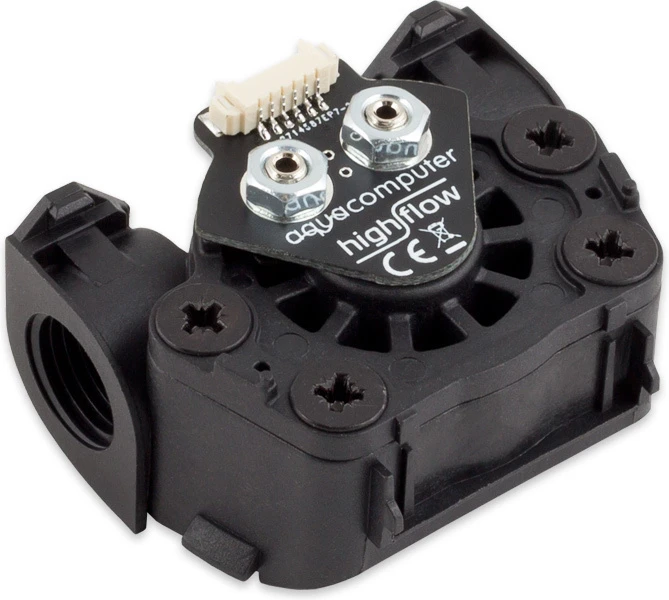

Aqua Computer flow sensors are easily integrated into your water cooling loop and allow continuous flow monitoring.
Coolant flowing through the sensor drives a rotor/impeller, a contactless magnetic sensor system detects the rotation speed. Each sensor is calibrated for optimum bearing play to achieve minimum operation noise. The sensor delivers reliable readings over a wide range of flow rates between 35 l/h and 1000 l/h (approximately 9 to 260 US liquid gallons per hour) and is therefore perfectly suited for most water cooling systems. Due to a symmetrical construction, the flow direction is irrelevant. Furthermore, the sensor may be installed in any orientation. Due to its low flow resistance, this sensor is a perfect match for high flow water cooling systems.
The connection threads are G 1/4 and can be used with virtually any tube dimensions.
For sensor installation, two screws are included in delivery.
Compatibility list:
aquaero 6 XT / PRO / LT (53145, 53146, 53206, 53234, 53250, 53251, 53253, 53262, 53263)
aquaero 5 XT / PRO / LT (53089, 53090, 53095, 53125, 53249, 53252)
aquaero 4.00 / 3.07 (53030, 53031, 53035, 53045, 53048, 53064, 53075, 53076)
aquastream ULTIMATE (41108)
aquastream XT (41059, 41060, 41061)
D5 NEXT (41118)
poweradjust 3 (53166, 53167)
poweradjust 2 (53082, 53083)
poweradjust (53049, 53054)
aquaduct 240 Pro mark III (11213)
aquaduct 360 eco+ (11212, 11233)
cuplex kryos NEXT with VISION
VISION connection terminal for kryographics (23664, 23665, 23666, 23667)
VISION Touch (53232, 53235)
QUADRO (53256)
OCTO (53286)
Scope of delivery:
One flow sensor

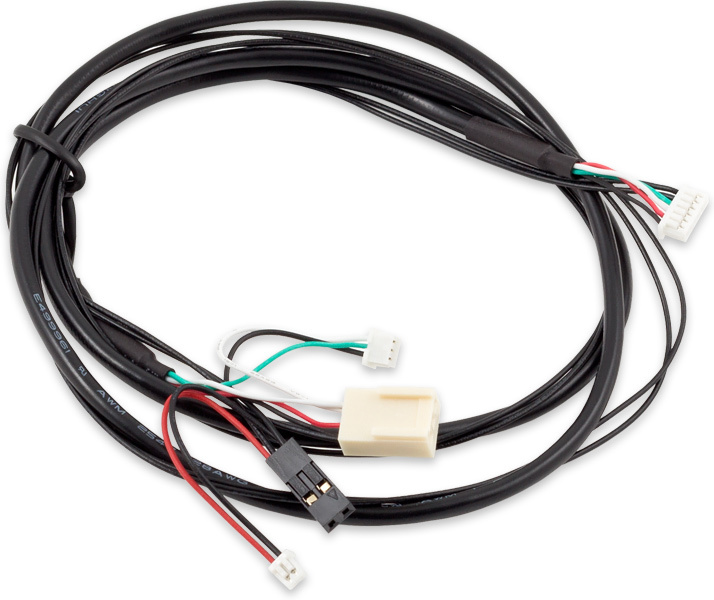

One connection cable
Two screws and spacers
Technical details:
Dimensions: ca. 51 x 42 x 30 mm
Connection threads: G 1/4
For flow signal evaluation, a device with flow sensor input (see compatibility list) is required and is not included in delivery!
Coolant flowing through the sensor drives a rotor/impeller, a contactless magnetic sensor system detects the rotation speed. Each sensor is calibrated for optimum bearing play to achieve minimum operation noise. The sensor delivers reliable readings over a wide range of flow rates between 35 l/h and 1000 l/h (approximately 9 to 260 US liquid gallons per hour) and is therefore perfectly suited for most water cooling systems. Due to a symmetrical construction, the flow direction is irrelevant. Furthermore, the sensor may be installed in any orientation. Due to its low flow resistance, this sensor is a perfect match for high flow water cooling systems.
The connection threads are G 1/4 and can be used with virtually any tube dimensions.
For sensor installation, two screws are included in delivery.
Compatibility list:
aquaero 6 XT / PRO / LT (53145, 53146, 53206, 53234, 53250, 53251, 53253, 53262, 53263)
aquaero 5 XT / PRO / LT (53089, 53090, 53095, 53125, 53249, 53252)
aquaero 4.00 / 3.07 (53030, 53031, 53035, 53045, 53048, 53064, 53075, 53076)
aquastream ULTIMATE (41108)
aquastream XT (41059, 41060, 41061)
D5 NEXT (41118)
poweradjust 3 (53166, 53167)
poweradjust 2 (53082, 53083)
poweradjust (53049, 53054)
aquaduct 240 Pro mark III (11213)
aquaduct 360 eco+ (11212, 11233)
cuplex kryos NEXT with VISION
VISION connection terminal for kryographics (23664, 23665, 23666, 23667)
VISION Touch (53232, 53235)
QUADRO (53256)
OCTO (53286)
Scope of delivery:
One flow sensor
One connection cable
Two screws and spacers
Technical details:
Dimensions: ca. 51 x 42 x 30 mm
Connection threads: G 1/4
For flow signal evaluation, a device with flow sensor input (see compatibility list) is required and is not included in delivery!
