Alphacool NexXxoS XT45 Full Copper 1080mm Nova
- Producent: Alphacool
- Kod producenta: 14349
- Kod EAN: 4250197143493
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
Cechy produktu
-
Grubość:
31-48mm
-
Wentylator:
120mm
-
Ilość wentylatorów:
9
-
Kolor:
Czarny
Would you like a little more?

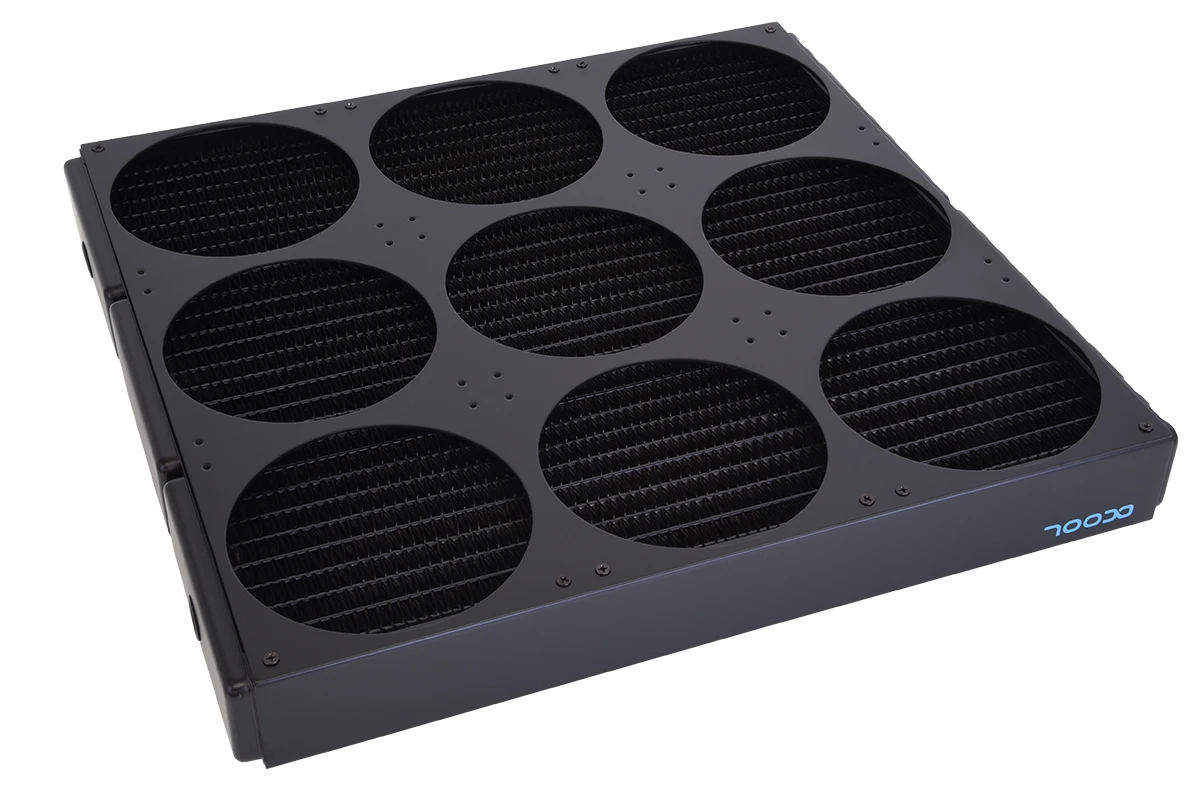

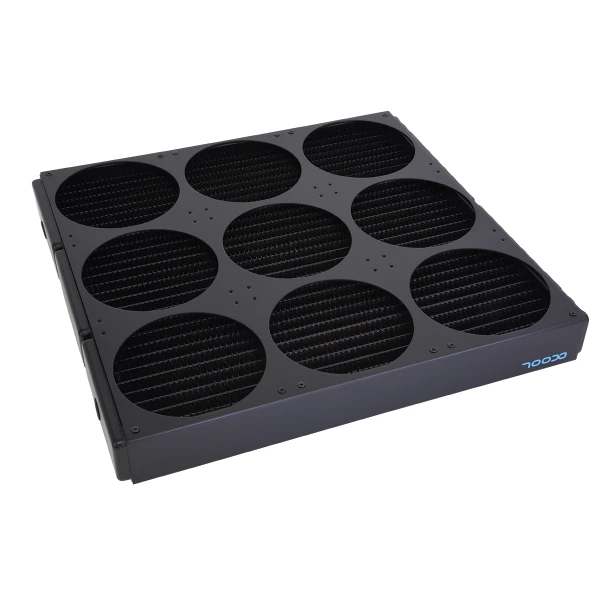

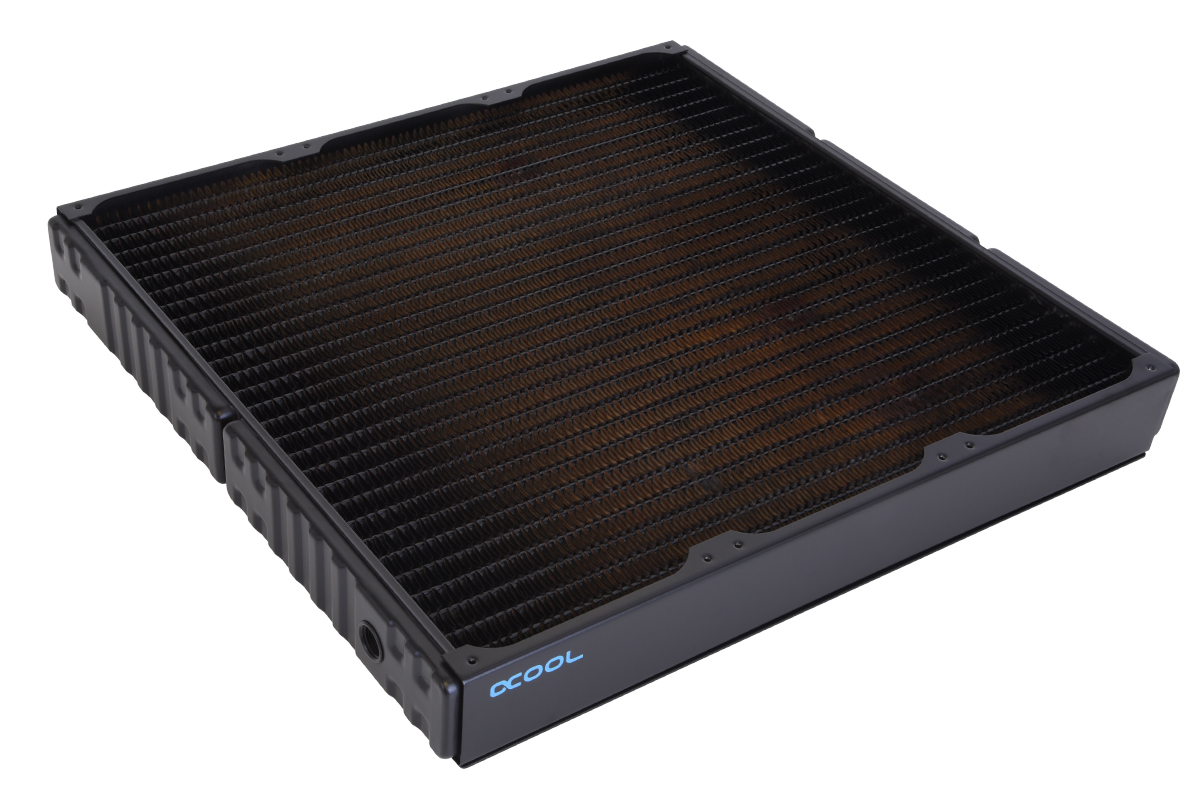

Alphacool NexXxoS XT45 1080mm Nova! 35 x 35 x 45 cm of pure cooling surface for nine 140mm or four 200 mm fans. Only one other Alphacool Radiator offers more cooling surface in one unit. The Alphacool NexXxoS XT45 1260 SuperNova Radiator.
Make No Compromises, Use Copper.
As usual, Alphacool also uses pure copper for the NexXxoS 1080 SuperNova Radiator. The end chambers, water channels and cooling fins are all made of copper and are a unique selling point worldwide. As a result, Alphacool radiators have been among the most popular and best on the market for many years, providing the perfect foundation for every water cooling system.
Full Cooling Capacity
To maximize the performance of a radiator, Alphacool reaches deep into its bag of tricks. Copper is the starting point. With a thermal conductivity of 400 W/(mK) for copper compared to 236 W/(mK) for aluminium, the winner is clear. Alongside this is the special fin density. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless laboratory tests. The result, especially for such large radiators, is a fin spacing of 12 FPI. This means that the air flow is almost unobstructed as the air can pass through even without high pressure. However, the cooling capacity does not suffer from this, on the contrary. To use the airflow optimally, all cooling fins have small serrations. These are tiny flaps that guide the airflow in the desired direction and increase the surface area. In the case of radiators, they are barely 1 mm high, but still provide controlled air turbulence to increase cooling capacity and minimise airflow noise.
Which fans?
The 1080 Nova radiator has space for nine 120 mm fans on the mounting frame. If you want to operate the radiator passively, you can remove the mounting plate in order not to obstruct the natural airflow. Of course, the mounting plates for both types of fans can also be interchanged. This gives you more freedom when mounting the fans.
Connection options

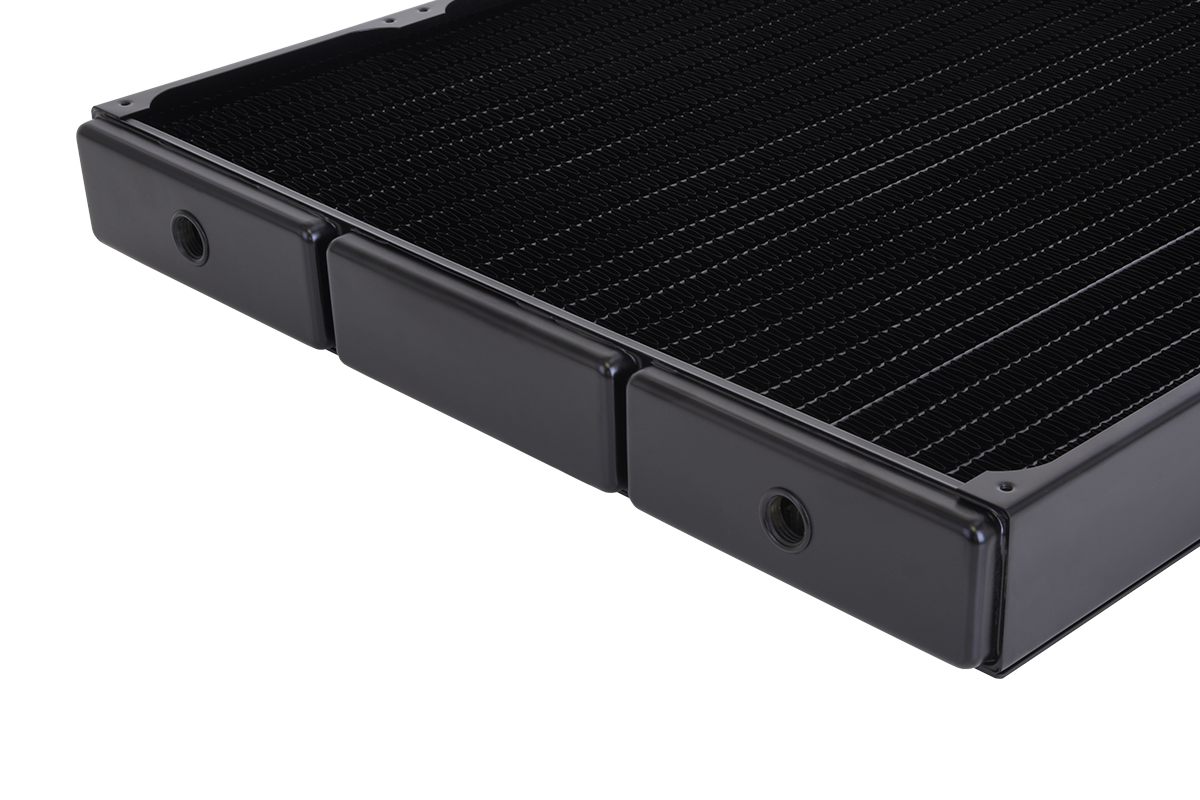

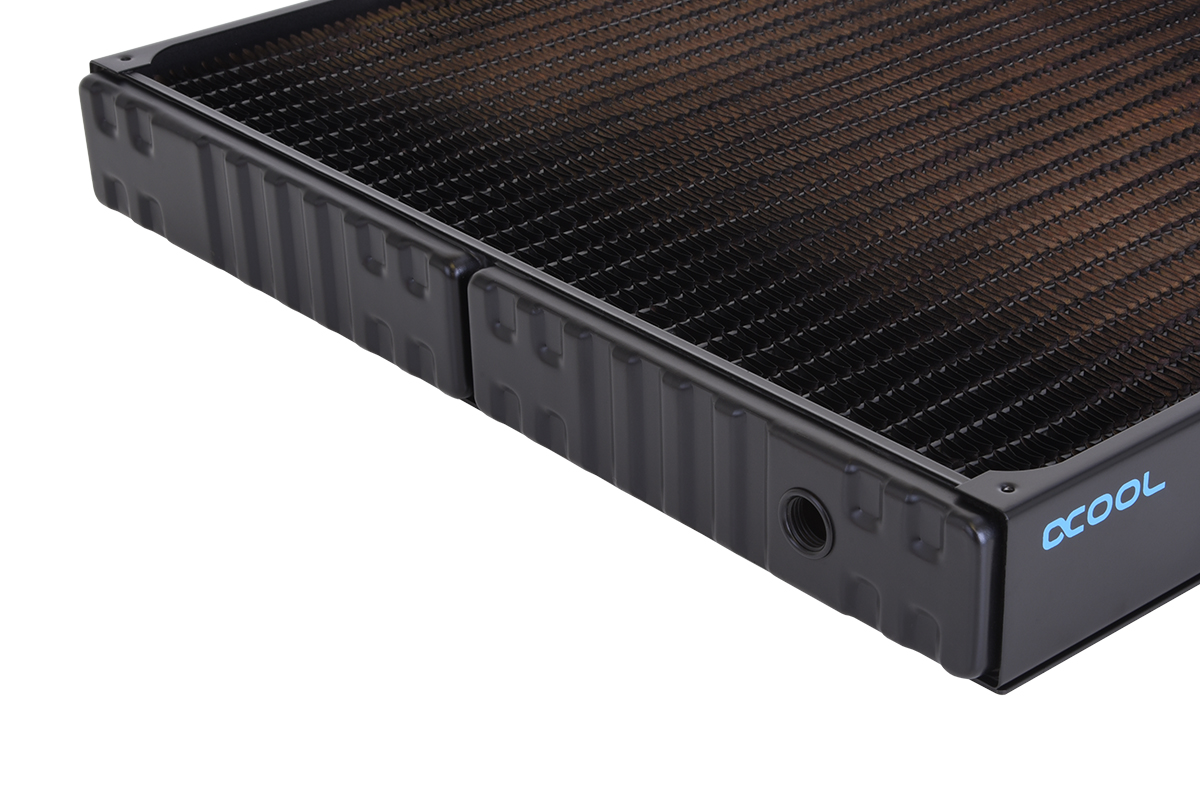

The Alphacool NexXxoS Nova Radiator offers two G1/4" threads for IN and OUT. A further G1/4" thread on the back of the radiator serves as a fill port. Alternatively, a temperature sensor or a drain port can also be attached here.
It’s a big boy! Only one other radiator in Alphacool's portfolio can match the performance of the Nova radiator. With nine 120 mm fans and a pure cooling surface of 35 x 35 cm, the Nova name says it all.
Technical data:
L x W x H: 378 x 360 x 46,5 mm
Net weight: 2588 g
Material cooling fins: copper
Material cooling channels: copper
Prechamber material: copper
Material outer housing: steel
Fins per Inch: 12
Threads: 3 x G1/4“
Thread size fan mounting: M3
Fan size: 120 mm
Fan slots: 9
Pressure tested: 0,8 bar
Certificates: CE, FC, RoHS
Download data sheet PDF: Alphacool NexXxoS XT45 Full Copper 1080mm Nova Radiator
Alphacool NexXxoS XT45 1080mm Nova! 35 x 35 x 45 cm of pure cooling surface for nine 140mm or four 200 mm fans. Only one other Alphacool Radiator offers more cooling surface in one unit. The Alphacool NexXxoS XT45 1260 SuperNova Radiator.
Make No Compromises, Use Copper.
As usual, Alphacool also uses pure copper for the NexXxoS 1080 SuperNova Radiator. The end chambers, water channels and cooling fins are all made of copper and are a unique selling point worldwide. As a result, Alphacool radiators have been among the most popular and best on the market for many years, providing the perfect foundation for every water cooling system.
Full Cooling Capacity
To maximize the performance of a radiator, Alphacool reaches deep into its bag of tricks. Copper is the starting point. With a thermal conductivity of 400 W/(mK) for copper compared to 236 W/(mK) for aluminium, the winner is clear. Alongside this is the special fin density. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless laboratory tests. The result, especially for such large radiators, is a fin spacing of 12 FPI. This means that the air flow is almost unobstructed as the air can pass through even without high pressure. However, the cooling capacity does not suffer from this, on the contrary. To use the airflow optimally, all cooling fins have small serrations. These are tiny flaps that guide the airflow in the desired direction and increase the surface area. In the case of radiators, they are barely 1 mm high, but still provide controlled air turbulence to increase cooling capacity and minimise airflow noise.
Which fans?
The 1080 Nova radiator has space for nine 120 mm fans on the mounting frame. If you want to operate the radiator passively, you can remove the mounting plate in order not to obstruct the natural airflow. Of course, the mounting plates for both types of fans can also be interchanged. This gives you more freedom when mounting the fans.
Connection options
The Alphacool NexXxoS Nova Radiator offers two G1/4" threads for IN and OUT. A further G1/4" thread on the back of the radiator serves as a fill port. Alternatively, a temperature sensor or a drain port can also be attached here.
It’s a big boy! Only one other radiator in Alphacool's portfolio can match the performance of the Nova radiator. With nine 120 mm fans and a pure cooling surface of 35 x 35 cm, the Nova name says it all.
Technical data:
L x W x H: 378 x 360 x 46,5 mm
Net weight: 2588 g
Material cooling fins: copper
Material cooling channels: copper
Prechamber material: copper
Material outer housing: steel
Fins per Inch: 12
Threads: 3 x G1/4“
Thread size fan mounting: M3
Fan size: 120 mm
Fan slots: 9
Pressure tested: 0,8 bar
Certificates: CE, FC, RoHS
Download data sheet PDF: Alphacool NexXxoS XT45 Full Copper 1080mm Nova Radiator
