der8auer RYZEN 3000/5000 OC Bracket Custom Mount
- Producent: der8auer
- Kod producenta: FSD8-034
- Kod EAN: 4250144804057
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 8-14 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
AMD's Zen architecture was a milestone in the history of CPU architecture and a stroke of genius by the Texas based chipmaker. Instead of resting on its laurels, AMD has been busy improving the "Zen" processors. The result is the new "Ryzen 3000/5000" processor family based on the "Zen2" architecture with its chiplet design. The Ryzen 9 3900X for example consists of a 12-nm I/O die and two CPU dies manufactured in a 7-nm process.
This chip design however has also changed the layout of the CPU dies on the package, which has also shifted the thermal center point. On a processor with only one CPU die under the heatspreader, the "hot spot" is in the middle of the CPU. Due to the new chip design, the "hot spot" has moved to the edge of the heatspreader.
This has an influence on the cooling behavior of CPU coolers. Especially AiOs (All in One watercoolers) - or CLCs (Closed Liquid Coolers) - with a round cooling block often do not completely cover the corners of the heatspreader. For an optimal cooling performance, the base plate of the AiO would have to be shifted around.

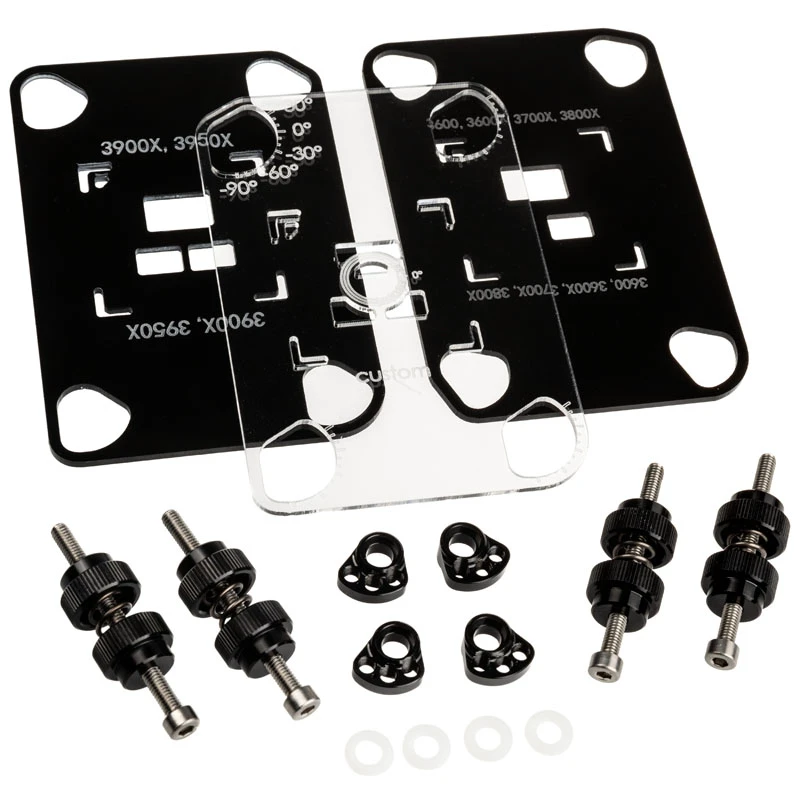

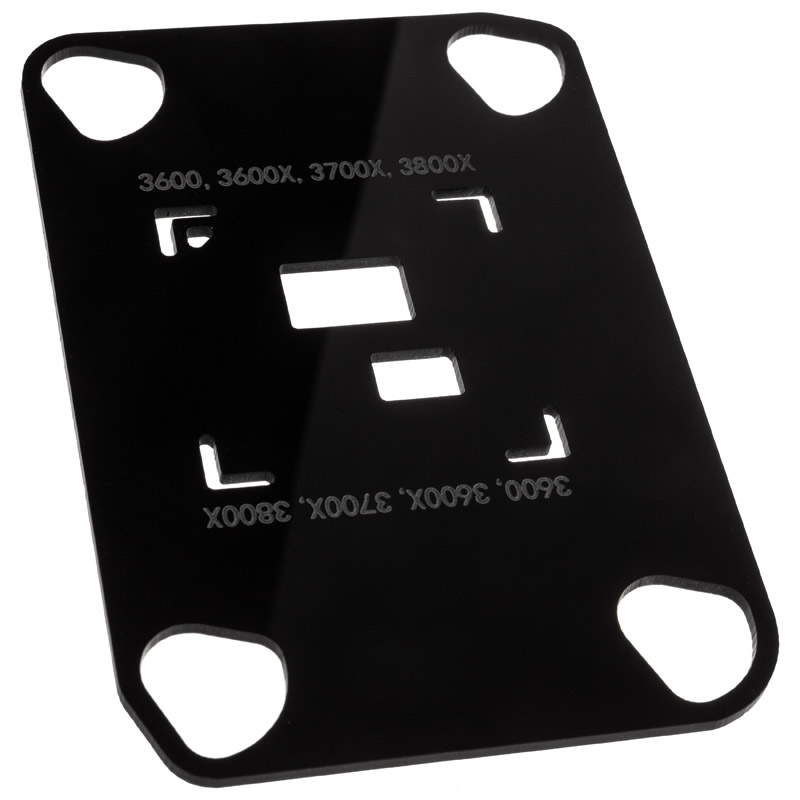

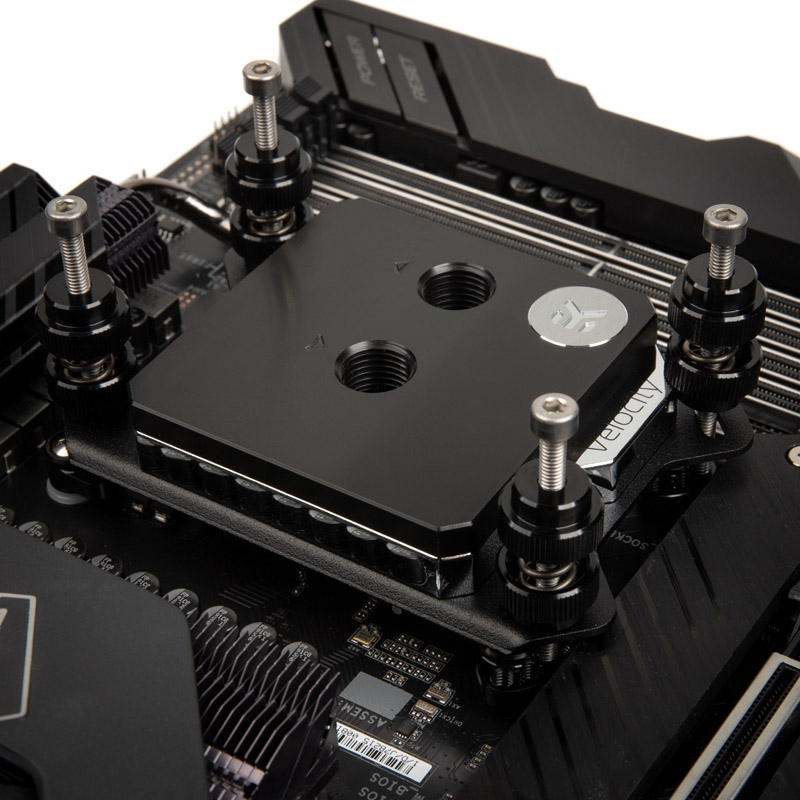

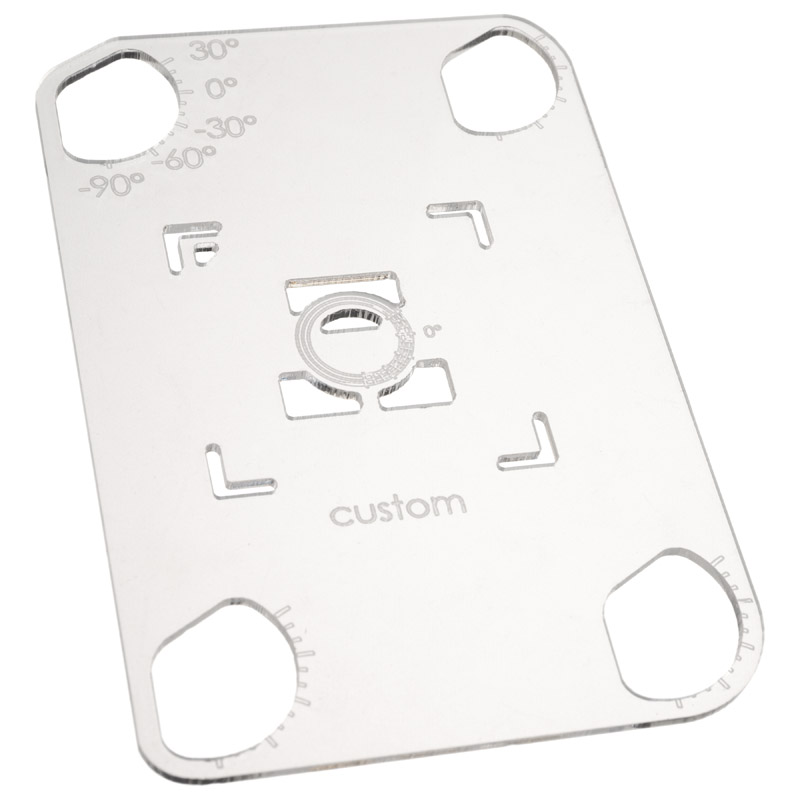

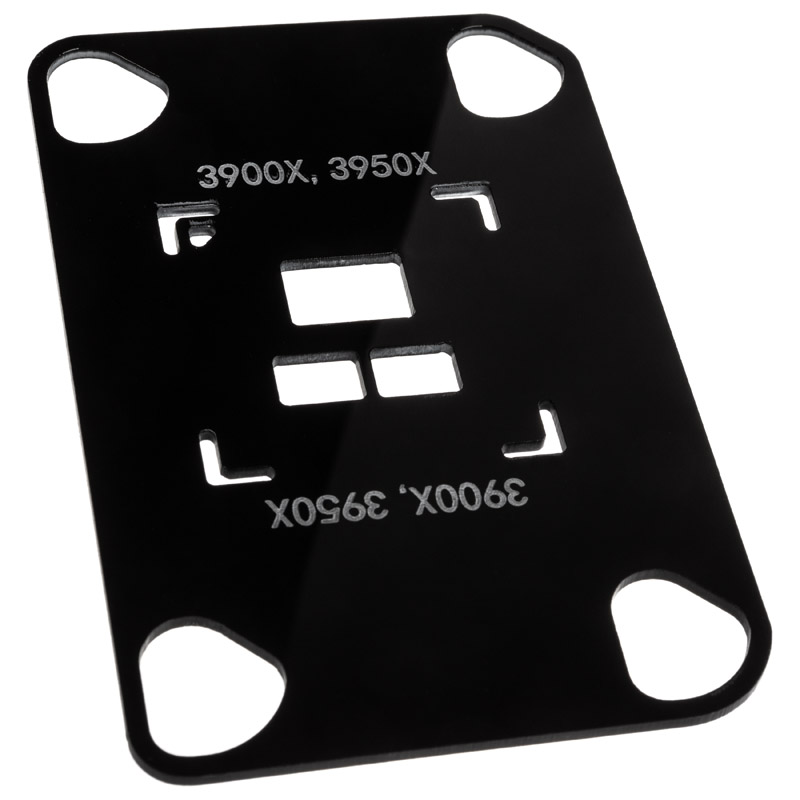

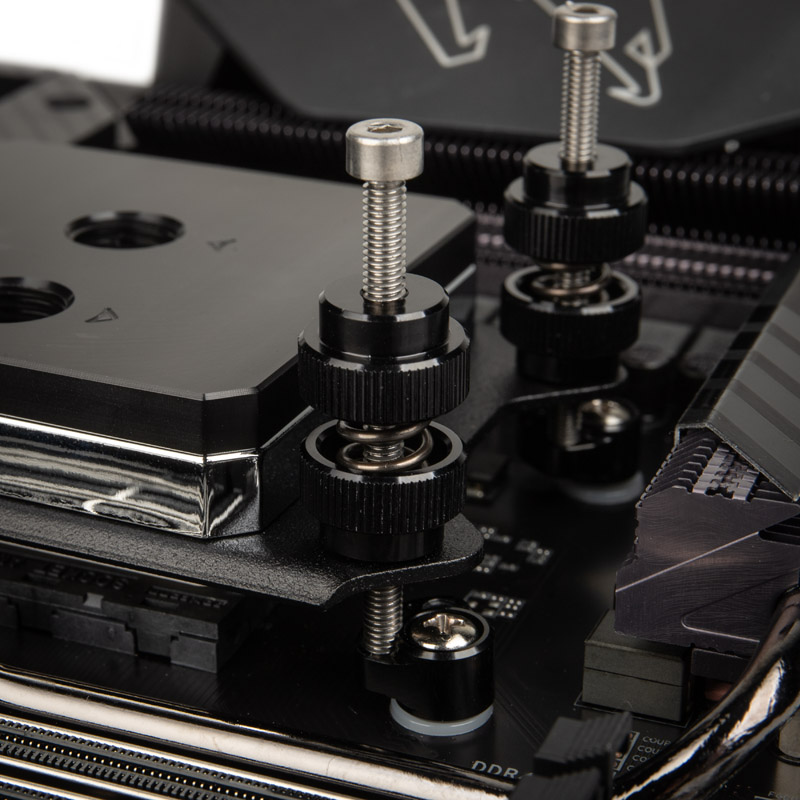

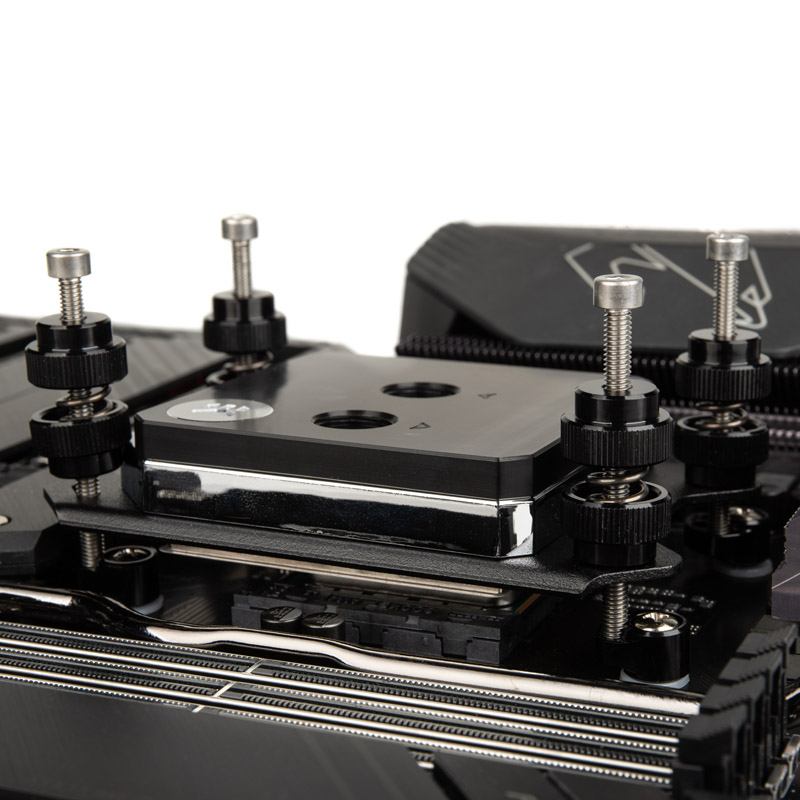

This is where professional overclocker Roman Hartung comes into play. Using his der8auer RYZEN 3000/5000 OC Bracket Custom Mount the base plate of an AIO can be flexibly positioned on the heatspreader.
The following motherboards were tested by Roman:
So far only X570 motherboards have been tested for compatibility. However, the der8auer RYZEN 3000/5000 OC Custom Mounting Frame will also be compatible with a variety of older AM4 motherboards in the ATX and E-ATX form factor. Mini-ITX motherboards often have components in the way, which prevent attaching the kit.
This chip design however has also changed the layout of the CPU dies on the package, which has also shifted the thermal center point. On a processor with only one CPU die under the heatspreader, the "hot spot" is in the middle of the CPU. Due to the new chip design, the "hot spot" has moved to the edge of the heatspreader.
This has an influence on the cooling behavior of CPU coolers. Especially AiOs (All in One watercoolers) - or CLCs (Closed Liquid Coolers) - with a round cooling block often do not completely cover the corners of the heatspreader. For an optimal cooling performance, the base plate of the AiO would have to be shifted around.
This is where professional overclocker Roman Hartung comes into play. Using his der8auer RYZEN 3000/5000 OC Bracket Custom Mount the base plate of an AIO can be flexibly positioned on the heatspreader.
The Features of the der8auer RYZEN 3000/5000 OC Bracket Custom Mount at a Glance:
- Overclocking tool by Roman "der8auer" Hartung
- Lowers temperatures by up to 7° C!
- Für AMD's Ryzen 3000 and 5000 CPUs
- Makes flexible positioning of the CPU cooler possible
- Please read the notes carefully!
der8auer RYZEN 3000/5000 OC Bracket Custom Mount: Important notes and compatibility

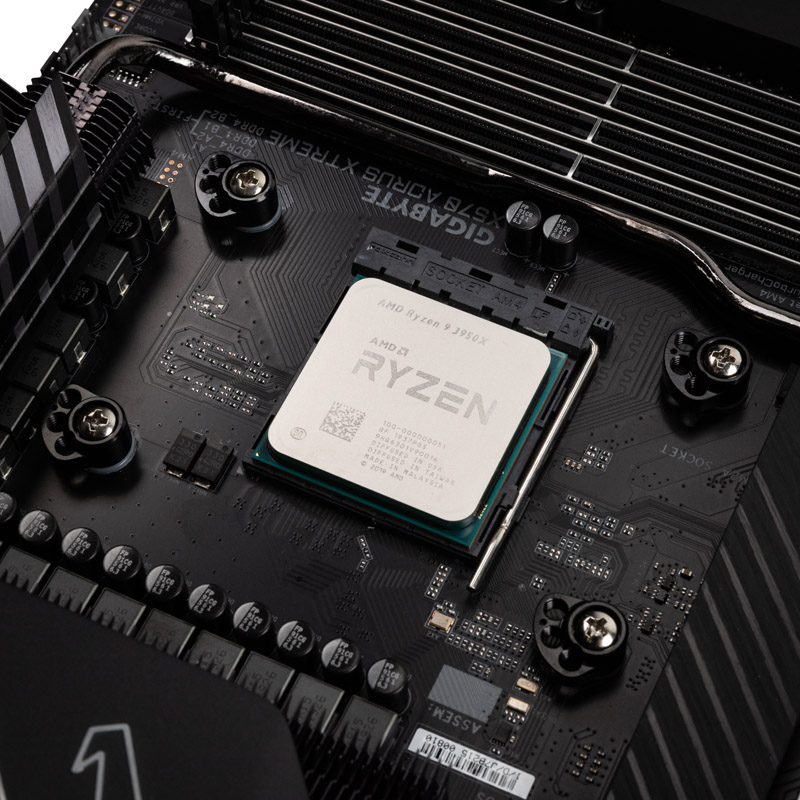

The RYZEN 3000/5000 OC Custom Mounting Frame replaces the AM4 mounting bracket on the motherboard. Accordingly, the RYZEN 3000 OC Bracket Custom Mount is highly compatible with motherboards equipped with AM4 sockets.The following motherboards were tested by Roman:
| Name | Manufacturers ID | CK part number |
|---|---|---|
| ASRock X570 Creator | 90-MXBAW0-A0UAYZ | MBAR-308 |
| ASRock X570 Phantom Gaming X | 90-MXBAN0-A0UAYZ | MBAR-309 |
| ASRock X570 Steel Legend | 90-MXBAR0-A0UAYZ | MBAR-311 |
| ASRock X570 Extreme4 | 90-MXBAP0-A0UAYZ | MBAR-312 |
| ASRock X570 Phantom Gaming 4 | 90-MXBAU0-A0UAYZ | MBAR-312 |
| ASRock X570 Pro4 | 90-MXBAT0-A0UAYZ | MBAR-314 |
| ASUS ROG Crosshair VIII Hero (WI-FI) | 90MB10T0-M0EAY0 | MBAS-448 |
| ASUS ROG Crosshair VIII Formula | 90MB10Z0-M0EAY0 | MBAS-449 |
| ASUS ROG Crosshair VIII Hero | 90MB1100-M0EAY0 | MBAS-450 |
| ASUS ROG Strix X570-E Gaming | 90MB1150-M0EAY0 | MBAS-451 |
| ASUS ROG Strix X570-F Gaming | 90MB1160-M0EAY0 | MBAS-452 |
| ASUS TUF Gaming X570-Plus | 90MB1180-M0EAY0 | MBAS-454 |
| ASUS Prime X570-P | 90MB11N0-M0EAY0 | MBAS-457 |
| ASUS Pro WS X570-ACE | 90MB11M0-M0EAY0 | MBAS-456 |
| Gigabyte X570 Aorus Xtreme | X570 AORUS XTREME | MBGB-335 |
| Gigabyte X570 Aorus Master | X570 Aorus Master | MBGB-336 |
| Gigabyte X570 Aorus Ultra | X570 Aorus Ultra | MBGB-337 |
| Gigabyte X570 Aorus Pro | X570 Aorus Pro | MBGB-338 |
| Gigabyte X570 Aorus Elite | X570 Aorus Elite | MBGB-339 |
| Gigabyte X570 Gaming X | X570 Gaming X | MBGB-340 |
| Gigabyte X570 UD | X570 UD | MBGB-342 |
| MSI MEG X570 ACE | 7C35-002R | MBMC-349 |
| MSI MEG X570 Godlike | 7C34-002R | MBMC-347 |
| MSI Prestige X570 Creation | 7C36-002R | MBMC-348 |
| MSI MPG X570 Gaming Pro Carbon WiFi | 7B93-001R | MBMC-350 |
| MSI MPG X570 Gaming Edge WiFi | 7C37-001R | MBMC-351 |
| MSI MPG X570 Gaming Plus | 7C37-004R | MBMC-352 |
| MSI X570-A Pro | 7C37-003R | MBMC-353 |
Notes:
Detailed and highly recommended assembly instructions are provided in the linked Video (external Link).
The actual temperature reduction that can be achieved by using the Ryzen 3000/5000 OC Bracket Custom Mount depends on the CPU and CPU cooler used.
Detailed and highly recommended assembly instructions are provided in the linked Video (external Link).
The actual temperature reduction that can be achieved by using the Ryzen 3000/5000 OC Bracket Custom Mount depends on the CPU and CPU cooler used.
Technical Details:
- Material: Aluminium, milled and anodised
- Compatibility:
CPUs: Ryzen 3000, Ryzen 5000
Motherboards: AM4 socket (see the compatibility list above)
