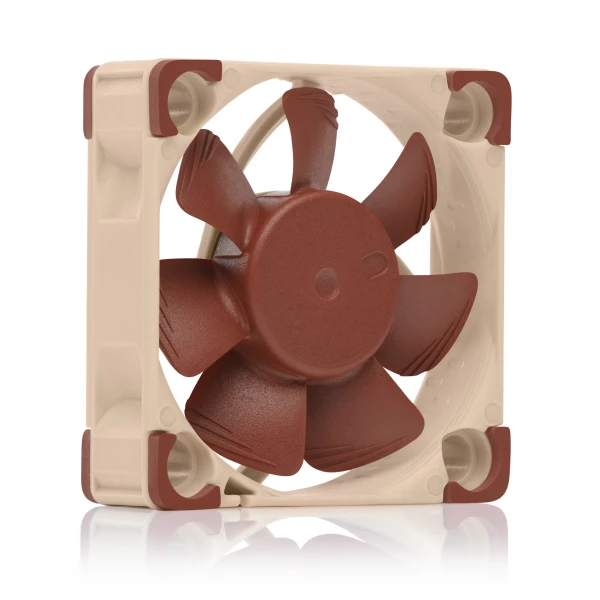

Noctua 40mm NF-A4x10 PWM

Brak ocen

Producent: Noctua
Kod producenta: NF-A4x10 PWM
Kod EAN:
Gwarancja: 60 miesięcy

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x10 is an award-winning, premium-quality quiet fan in size 40x10mm. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor as well as an OmniJoin Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

FAN Specification

Size

40x40x10 mm

Mounting hole spacing

32x32 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

5000 RPM

Rotational speed with L.N.A. (+/- 10%)

3700 RPM

Min. rotational speed (PWM, +/-20%)

1000 RPM

Airflow

8,9 m³/h

Airflow with L.N.A.

6,6 m³/h

Acoustical noise

19,6 dB(A)

Acoustical noise with L.N.A.

12,9 dB(A)

Static pressure

1,95 mm H₂O

Static pressure with L.N.A.

1,21 mm H₂O

Max. input power

0,48 W

Max. input current

0,04 A

Operating voltage

12 V

MTTF

> 150.000 h

Scope of delivery

30cm Extension Cable
NA-AV3 anti-vibration mounts
OmniJoin Adaptor Set
4-pin y-cable
Low-Noise Adaptor (L.N.A.)
4 Fan Screws
