Aquacomputer QUADRO fan controller for PWM fans
- Producent: Aqua Computer
- Kod producenta: 53256
- Kod EAN:
- Gwarancja: 24 miesiące
Dostępność:
Dostępny
Dostępna ilość:
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

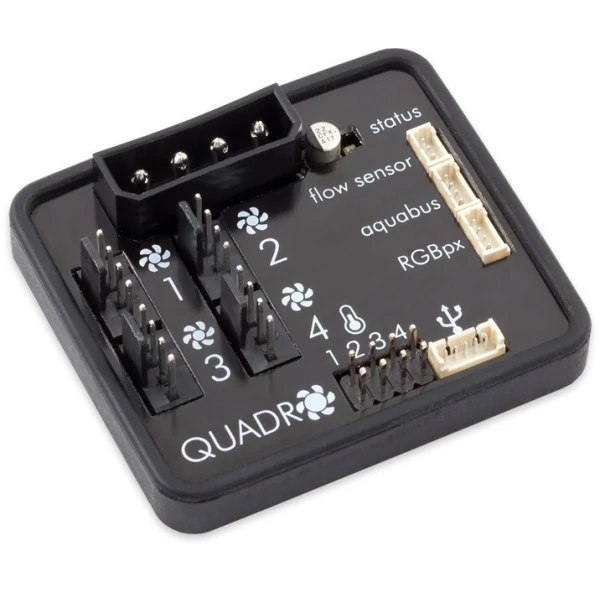

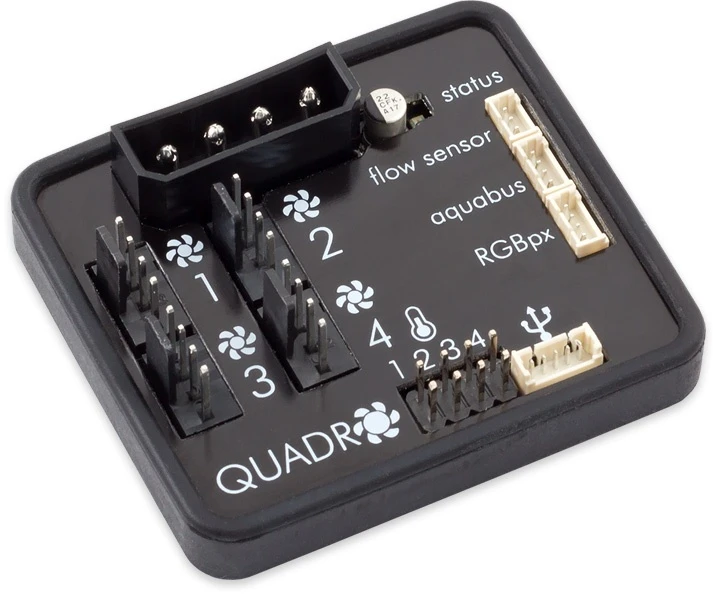

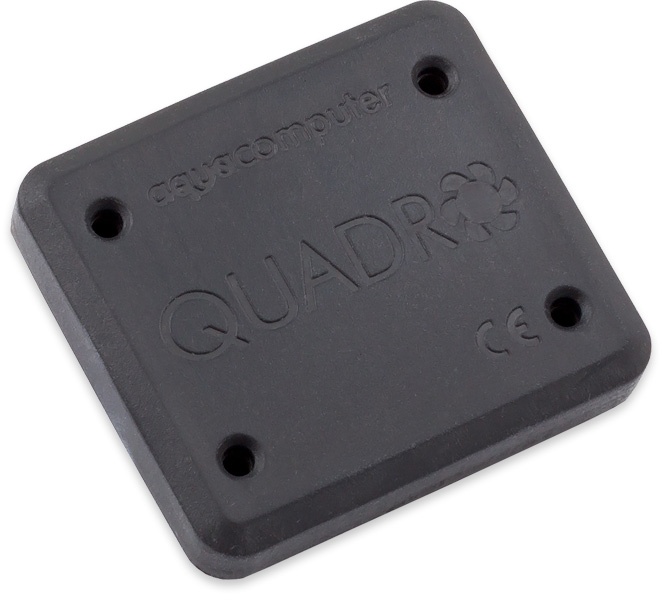

The QUADRO made by Aqua Computer is a four channel PWM fan controller with outstanding functionality, equally suited for water cooled or air cooled computers. Additionally, it features an RGBpx effect controller for 90 addressable LEDs.
Key features of the QUADRO include:
· Programmable four channel fan controller
· All fan outputs supply up to 25 Watt of power per channel and include speed monitoring
· All fan outputs with 4-Pin connector and PWM controlled
· All fan outputs can be switched off completely
· Versatile control options
· Four temperature sensor inputs
· Eight further values can be transferred from the PC to the QUADRO using the aquasuite software
· Flow sensor input
· RGBpx LED output for LED strips and fans with individually controllable LEDs
· USB 2.0 interface
· aquasuite software for a comfortable setup, evaluation and visualization of all sensor data
· aquabus interface: When connected to an aquaero, the fan outputs can be controlled by the aquaero
QUADRO Teaser Video
Fan controller
The four fan channels of the QUADRO can be configured independently, the high maximum power output of 25 watts per channel allows for connecting multiple fans to each output of the QUADRO using suitable splitters. In addition to setting fan speed manually, fan speed can also be controlled by temperature. In temperature controlled mode, set point controllers as well as curve controllers are available. If the corresponding temperature falls below the set limit, connected fans can either be switched off or be kept running at an adjustable minimum speed. For secure fan start-up, an intelligent start boost with speed signal monitoring can be configured for each fan channel.
All fan outputs are compatible to PWM fans with four pin connectors only and feature overload protection.
RGBpx controller for addressable LEDs
The QUADRO controller is equipped with an RGBpx output for controlling up to 90 addressable LEDs independently. Color and brightness can be individually controlled for each LED. In total, up to four groups of LEDs of varying size can be configured, and visual effects can be assigned to each group. The 23 available effects can be extensively adjusted for further customization. Many effects can also be configured to modify effect parameters (for example speed) depending on current sensor data. The available effects also include sound-to-light effects, visualizing computer sound output. The AMBIENTpx effect deserves special notice, replicating the border area of the current monitor display on connected LEDs, allowing for an impressive background lighting surrounding the monitor.
Alternatively to the LED strips offered by Aqua Computer, LED fans made by Corsair and NZXT can be connected using the optional accessory RGBpx Splitty4 (item code 53267, not included in delivery).
RGBpx Demo Video
QUADRO can be used as an aquabus expansion device
Besides being a fully autonomous USB fan controller, the QUADRO can also be used as an aquabus extension to an aquaero 5 or aquaero 6. In this configuration, the four fan channels of the QUADRO can be controlled by the aquaero, temperature sensor inputs and flow sensor input are transmitted to the aquaero. A maximum of two QUADRO controllers can be connected to an aquaero simultaneously.
Technical details
Dimensions without attached cables: ca. 54 x 49 x 17 mm
Supply voltage: 5V, 12V
Maximum fan output power: 25 watts per channel
PWM control signal: 0 - 100 %, resolution 0,1 %
Scope of delivery
- QUADRO controller
- one temperature sensor, length approx. 70 cm
- one internal USB cable, length approx. 100 cm
- mounting material
System requirements
- Windows 8.1 or newer
- Internal USB 2.0 port
Notes on the AMBIENTpx effect
Screen content preventing analysis by DRM or similar methods cannot be utilized for the effect.
Notes on the aquasuite software:
When you activate this product you will receive the current version of the aquasuite software including an upgrade service for at least six (6) months. After the expiration of the upgrade service you may use and reinstall the latest version available during the upgrade period without a time limit.
The update service can optionally be extended or renewed at any time for a fee.
Please note that an internet connection is required for the installation and activation of the aquasuite software.
Further information about the update service and the activation of the aquasuite software can be found here.
Key features of the QUADRO include:
· Programmable four channel fan controller
· All fan outputs supply up to 25 Watt of power per channel and include speed monitoring
· All fan outputs with 4-Pin connector and PWM controlled
· All fan outputs can be switched off completely
· Versatile control options
· Four temperature sensor inputs
· Eight further values can be transferred from the PC to the QUADRO using the aquasuite software
· Flow sensor input
· RGBpx LED output for LED strips and fans with individually controllable LEDs
· USB 2.0 interface
· aquasuite software for a comfortable setup, evaluation and visualization of all sensor data
· aquabus interface: When connected to an aquaero, the fan outputs can be controlled by the aquaero
QUADRO Teaser Video
Fan controller
The four fan channels of the QUADRO can be configured independently, the high maximum power output of 25 watts per channel allows for connecting multiple fans to each output of the QUADRO using suitable splitters. In addition to setting fan speed manually, fan speed can also be controlled by temperature. In temperature controlled mode, set point controllers as well as curve controllers are available. If the corresponding temperature falls below the set limit, connected fans can either be switched off or be kept running at an adjustable minimum speed. For secure fan start-up, an intelligent start boost with speed signal monitoring can be configured for each fan channel.
All fan outputs are compatible to PWM fans with four pin connectors only and feature overload protection.
RGBpx controller for addressable LEDs
The QUADRO controller is equipped with an RGBpx output for controlling up to 90 addressable LEDs independently. Color and brightness can be individually controlled for each LED. In total, up to four groups of LEDs of varying size can be configured, and visual effects can be assigned to each group. The 23 available effects can be extensively adjusted for further customization. Many effects can also be configured to modify effect parameters (for example speed) depending on current sensor data. The available effects also include sound-to-light effects, visualizing computer sound output. The AMBIENTpx effect deserves special notice, replicating the border area of the current monitor display on connected LEDs, allowing for an impressive background lighting surrounding the monitor.
Alternatively to the LED strips offered by Aqua Computer, LED fans made by Corsair and NZXT can be connected using the optional accessory RGBpx Splitty4 (item code 53267, not included in delivery).
RGBpx Demo Video
QUADRO can be used as an aquabus expansion device
Besides being a fully autonomous USB fan controller, the QUADRO can also be used as an aquabus extension to an aquaero 5 or aquaero 6. In this configuration, the four fan channels of the QUADRO can be controlled by the aquaero, temperature sensor inputs and flow sensor input are transmitted to the aquaero. A maximum of two QUADRO controllers can be connected to an aquaero simultaneously.
Technical details
Dimensions without attached cables: ca. 54 x 49 x 17 mm
Supply voltage: 5V, 12V
Maximum fan output power: 25 watts per channel
PWM control signal: 0 - 100 %, resolution 0,1 %
Scope of delivery
- QUADRO controller
- one temperature sensor, length approx. 70 cm
- one internal USB cable, length approx. 100 cm
- mounting material
System requirements
- Windows 8.1 or newer
- Internal USB 2.0 port
Notes on the AMBIENTpx effect
Screen content preventing analysis by DRM or similar methods cannot be utilized for the effect.
Notes on the aquasuite software:
When you activate this product you will receive the current version of the aquasuite software including an upgrade service for at least six (6) months. After the expiration of the upgrade service you may use and reinstall the latest version available during the upgrade period without a time limit.
The update service can optionally be extended or renewed at any time for a fee.
Please note that an internet connection is required for the installation and activation of the aquasuite software.
Further information about the update service and the activation of the aquasuite software can be found here.
Szczegóły dotyczące zgodności produktu z przepisami GPSR: Producent
Producent:
Aqua Computer GmbH & Co. KG,
Gelliehäuser Str. 1, 3
7130 Gleichen,
Niemcy
info@aqua-computer.de
Podobne produkty z tej samej kategorii
Zapytaj Naszego specjalistę o ten produkt
Szybki kontakt
-
Sprawy techniczne:
-
Serwis:
-
Współpraca hurtowa:
24-11-2022
Piotr
To jest właśnie to czego szukałem. Dzięki temu udało mi się chłodnicę z wentylatorami umieścić za ścianą, w pomieszczeniu gospodarczym, a w pokoju zapanowała cisza. Kontroler umożliwia zasilane i sterowane wentylatorami niezależnie od komputera. Wystarczy raz podłączyć kontroler przewodem USB do płyty głównej i skonfigurować wszystko za pomocą aplikacji a następnie zapisać ustawienia w kontrolerze i można odpiąć kabel USB. Kontroler zasilam małym 70W zasilaczem Phobya z końcówką molex (choć do tych moich 4 wentylatorów starczyłby nawet ten słabszy - 35W). W obieg wody wkręciłem czujnik temperatury i od jego wskazań kontroler załącza wentylatory i steruje ich prędkością. Dla mnie bomba!
