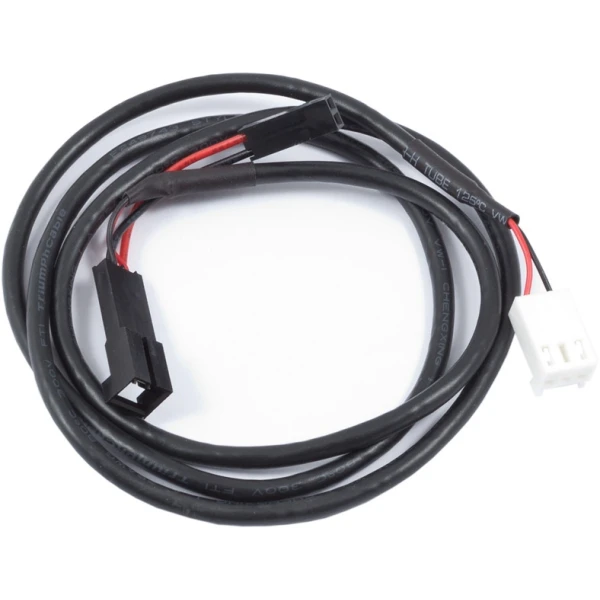

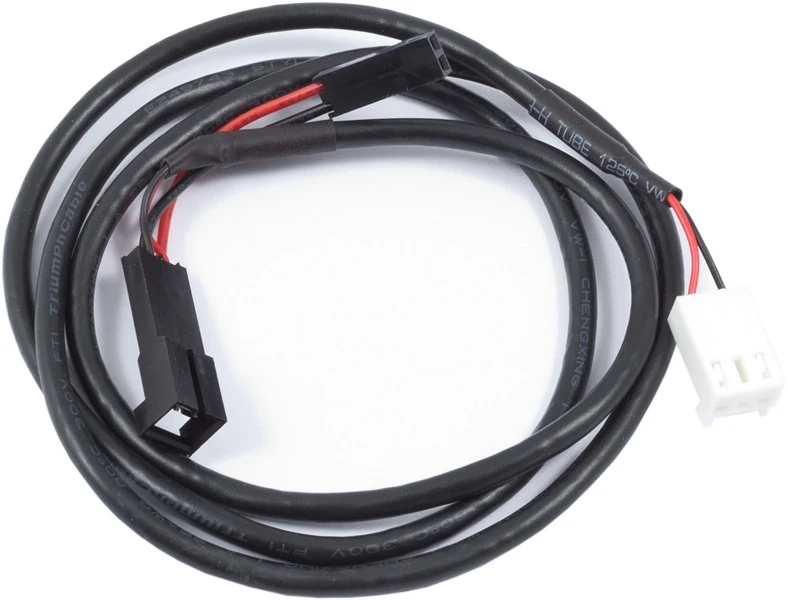

Aquacomputer Connection cable alarm header (fan plug) to motherboard power switch header
- Producent: Aqua Computer
- Kod producenta: 53217
- Kod EAN:
- Gwarancja: 24 miesiące
Dostępność:
Dostępny
Dostępna ilość:
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
This cable can be used to connect the alarm header of an aquastream ULTIMATE, poweradjust 3 or mps family device with the power switch header of a computer motherboard. This allows for an emergency shutdown of the PC in case of an alarm condition. The cable is to be connected in between motherboard and PC case power switch, the power switch remains operational. Total cable length approx. 70 cm.
Scope of delivery:
One cable
Before connecting the cable, make sure the RPM/alarm header of the device is configured correctly!
Configuration for mps devices (aquasuite Software):
Tab "Alarm configuration": "Power switch (53217)" has to be activated.
Configuration for aquastream ULTIMATE (aquasuite Software):
Tab "Alarms": "Power switch (53217)" has to be activated.
Configuration for poweradjust 3 (aquasuite Software):
Tab "Alarm configuration": "Power switch (53217)" has to be activated.
After connecting the cable, test the setup by deliberately creating an alarm condition. If the PC is not shut down, the cable header connected to the motherboard must be rotated by 180 degrees and the test has to be repeated. Emergency shutdown may result in data loss as operating system and running programs are not shut down properly!
Compatible with:
aqualis XT: 34041, 34042, 34050, 34058, 34059, 34060, 34061, 34072
aquainlet XT: 34066, 34067, 34068, 34069
D5 pump with USB and aquabus interface: 41093
Pump adapter/pump module for aqualis with fill level sensor: 41095, 41097, 41099, 41101
aquastream ULTIMATE: 41108
Flow sensor high flow USB: 53129
Flow sensor mps flow: 53130, 53131, 53132
Pressure sensor mps pressure: 53133, 53134, 53135, 53136, 53160
poweradjust 3 USB: 53166, 53167
Scope of delivery:
One cable
Before connecting the cable, make sure the RPM/alarm header of the device is configured correctly!
Configuration for mps devices (aquasuite Software):
Tab "Alarm configuration": "Power switch (53217)" has to be activated.
Configuration for aquastream ULTIMATE (aquasuite Software):
Tab "Alarms": "Power switch (53217)" has to be activated.
Configuration for poweradjust 3 (aquasuite Software):
Tab "Alarm configuration": "Power switch (53217)" has to be activated.
After connecting the cable, test the setup by deliberately creating an alarm condition. If the PC is not shut down, the cable header connected to the motherboard must be rotated by 180 degrees and the test has to be repeated. Emergency shutdown may result in data loss as operating system and running programs are not shut down properly!
Compatible with:
aqualis XT: 34041, 34042, 34050, 34058, 34059, 34060, 34061, 34072
aquainlet XT: 34066, 34067, 34068, 34069
D5 pump with USB and aquabus interface: 41093
Pump adapter/pump module for aqualis with fill level sensor: 41095, 41097, 41099, 41101
aquastream ULTIMATE: 41108
Flow sensor high flow USB: 53129
Flow sensor mps flow: 53130, 53131, 53132
Pressure sensor mps pressure: 53133, 53134, 53135, 53136, 53160
poweradjust 3 USB: 53166, 53167
