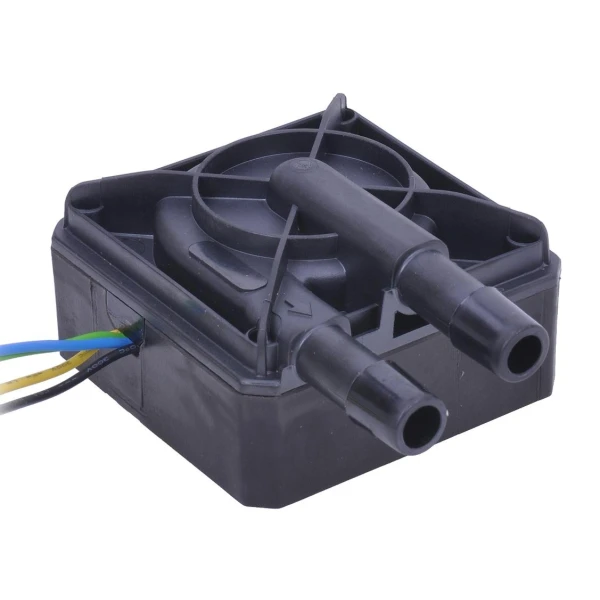

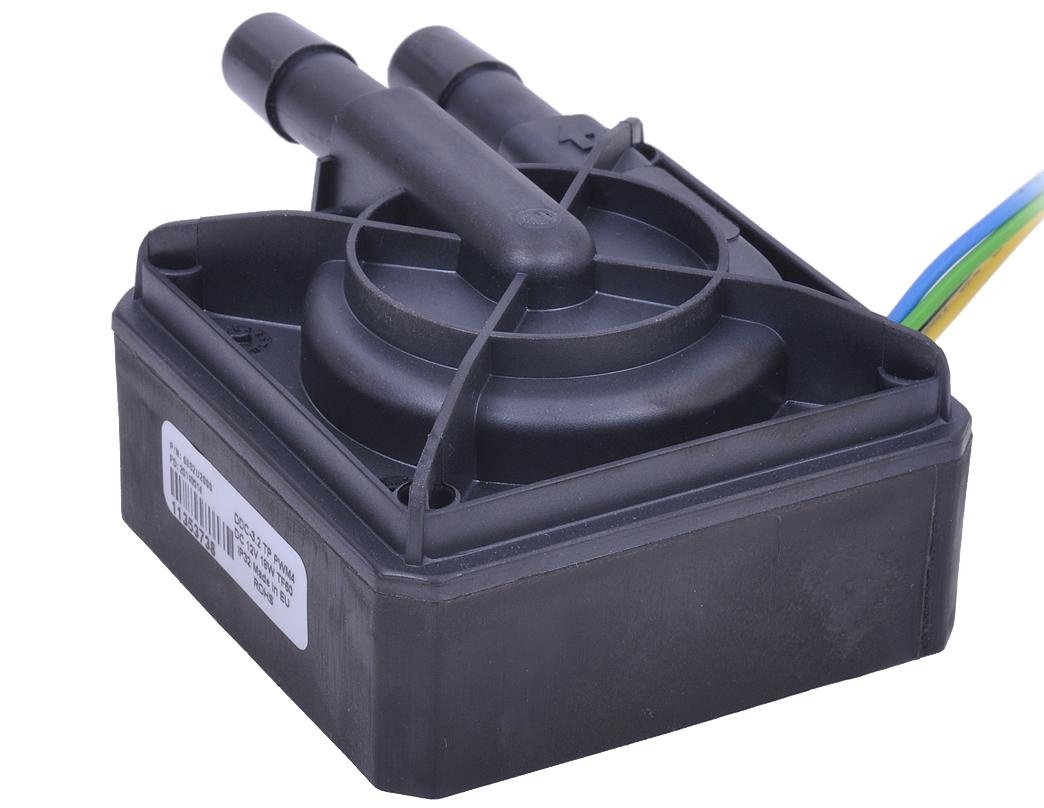

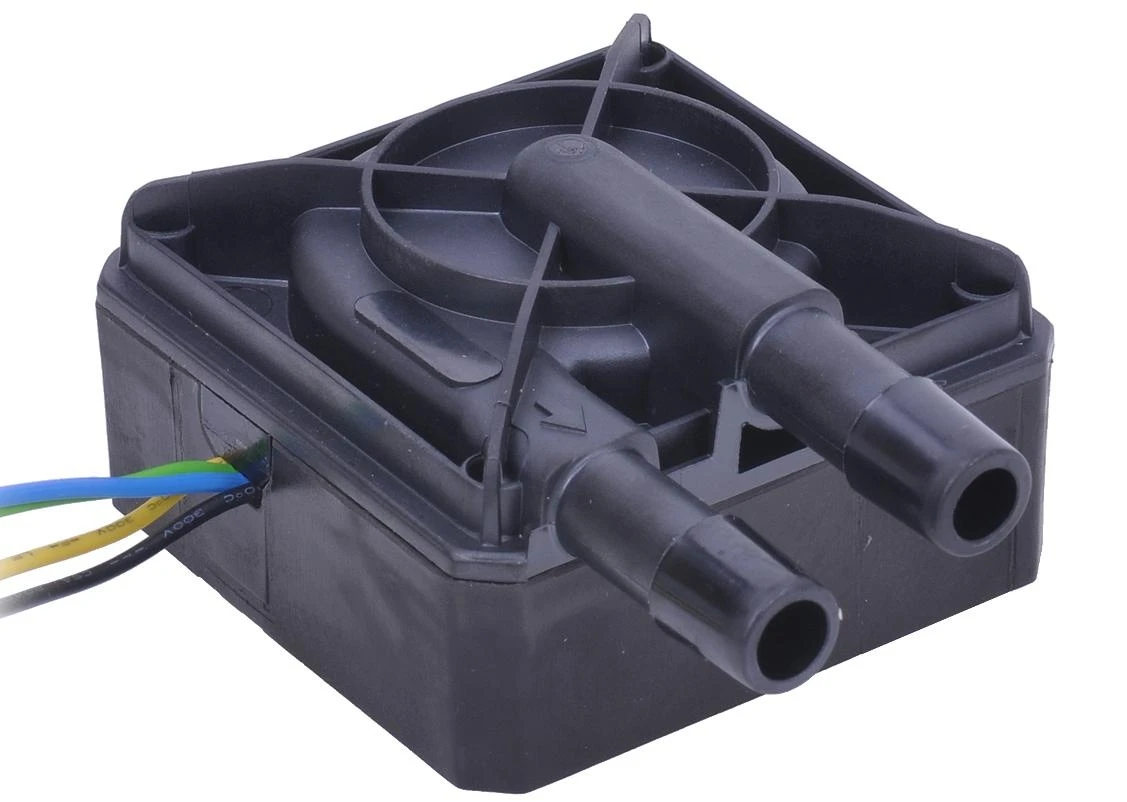

Laing DDC-pump 12V DDC 4.2 PWM

Brak ocen

  • Producent: Laing
  • Kod producenta: 60E0C2101YYY004
  • Kod EAN: 4049469175511
  • Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 5-10 dni roboczych

    Cena:

    317,90 zł

    przechowalnia

    • Koszt wysyłki: od 0 zł
    • Darmowa dostawa od 800,00 zł
    317.9 In stock Laing DDC-pump 12V DDC 4.2 PWM

    This pump is the first pump worldwide which is used in mass-produced water cooled workstations and is ideal for the watercooling of processors and electronic components. Due to its compact size and its power it can be used for many applications.

    This DC pump is an electronically commuted ball motor pump with an estimated lifespan of more than 50.000hrs at 12V. The only moving part on the pump is the spherically shaped Rotor unit which is sitting on an ultra-hard, wear-resistant ceramics bearing ball.

    A conventional shaft with bearings and seals is not used or needed. The spherical bearing of the rotor unit on the ceramics bearing ball has many advantages: The development of bearing clearance is technically impossible which results in the impossibility of noise level increase over the lifespan of the pump. The bearing is self-adjusting, making the pump consistently quiet in operation over the full lifespan. The pump is directly lubricated by the coolant (wet-running pump). Therefore no maintenance is required.

    As the rotor is magnetically held in place even small dirt particles pose no problem for the mechanism, a blocking of the pump is not possible under normal operating conditions. Even after a long period of standstill reliable operation is ensured. The permanent magnetic rotor unit is frictionlessly driven by a magnetic field which is produced by the surrounding stator.

    The stator is completely built around the rotor, therefore the pump is with its 38mm only slightly higher than the stator unit. It therefore fits a in almost any PC case, may it be Super tower or Barebone. A separate magnetic shielding is usually not required. The ball motor principle allows powerful yet power-saving operation. The pump can be regulated by power variations of the DC operating voltage over a wide range. All parts in touch with the coolant are completely corrosion free.

    Pump tacho: With 4-pin Molex connector as pump tacho output (for mainboards or control units)

    Why are there Swiftech and Laing Versions? Are they different?
    The latter question can be answered quickly: No! Here an explanation: Lain produces all pumps in Hungary. They are just labelled differently for Overseas markets and the European market. The pumps themselves are threfore exactly identical. The overseas version has Swiftech as a distributor and the European version is neutrally black. The cheaper Swiftech pumps are usually shipped with decouplers, the Laing pumps usually not. The power, pressure head, flow rates. etc. are exactly the same.

    Important: The Laing pump's electronics are not waterproof. Please make sure that the electronic components do not come in contact with water during installation or when working on the pump. When replacing the top always ensure a proper fit of the O-ring seal and avoid spills when filling the Laing reservoir. Damages due to water in the electronic components are not replaced by Laing!



    Technical data
    L x W x H 91 x 70 x 40mm
    Material stainless steel, carbon, ceramic, Luranyl KR 2403 GW T4, Fortron, EPDM70
    Speed 1000 - 4500 rpm
    Max power consumption 20W
    Voltage 12V DC

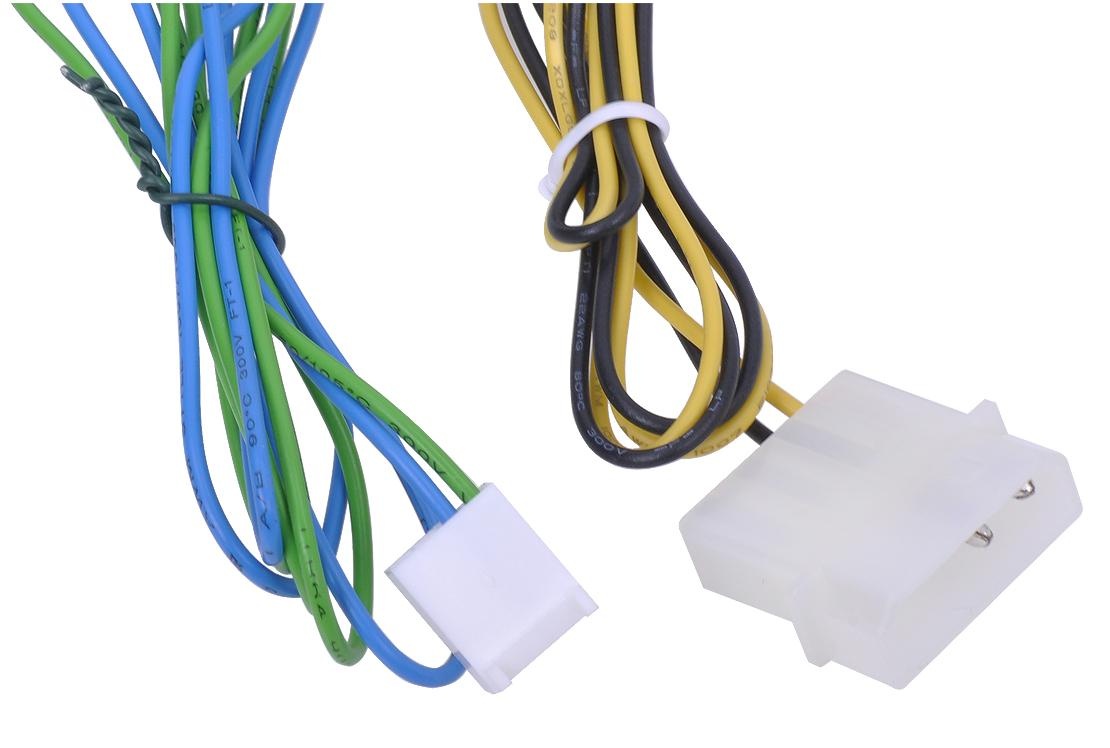

    Power connector 4-Pin Molex
    PWM control/speed readout 4-Pin Molex
    Max. working temperature ambiente 10°C - 50°C
    Max. working temperature water 10°C - 60°C
    Max. head of pump 4,34m
    Max. flow 517 L/h
    Max. pump pressure 0,4 bar
    Weight 220g
    Color black

    Szczegóły dotyczące zgodności produktu z przepisami GPSR: Producent

    Producent:
    Xylem Inc.
    301 Water Street SE, Suite 200
    Washington, DC 20003
    United States
    info@xylem.com

    Podmiot odpowiedzialny:
    Aquatuning GmbH
    Carl-Zeiss-Str. 2
    33758 Schloß Holte-Stukenbrock
    Niemcy
    info@aquatuning.de

    Podobne produkty z tej samej kategorii

    Alphacool Eisstation DC80 - AIO Power Unit przechowalnia

      Oczekujemy na dostawę

      Alphacool Eisstation DC80 - AIO Power Unit

      343 zł

      Aquacomputer D5 pump motor with PWM input and speed signal przechowalnia

        Oczekujemy na dostawę

        Aquacomputer D5 pump motor with PWM input and speed signal

        366,90 zł

        Alphacool VPP Apex Pump - G1/4 inner thread including Eisdecke D5 - Acryl V.3 przechowalnia

          Czas realizacji orientacyjnie 5 dni roboczych

          Alphacool VPP Apex Pump - G1/4 inner thread including Eisdecke D5 - Acryl V.3

          359,90 zł

          Aquacomputer ULTITUBE D5 150 PRO reservoir with D5 NEXT pump przechowalnia

            Czas realizacji orientacyjnie 5-10 dni roboczych

            Aquacomputer ULTITUBE D5 150 PRO reservoir with D5 NEXT pump

            939,90 zł

            Laing DDC-Pump 12V DDC-1RT/Plus with 2xG1/4'' przechowalnia

              Czas realizacji orientacyjnie 5 dni roboczych

              Laing DDC-Pump 12V DDC-1RT/Plus with 2xG1/4''

              384,90 zł

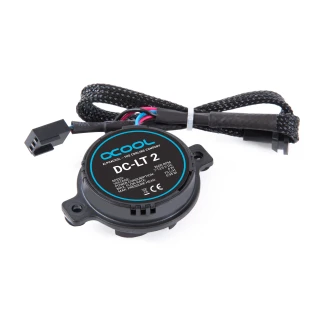

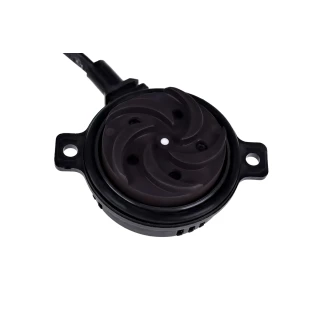

              Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 phase sine wave PCB) przechowalnia

                Oczekujemy na dostawę

                Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 phase sine wave PCB)

                137,60 zł

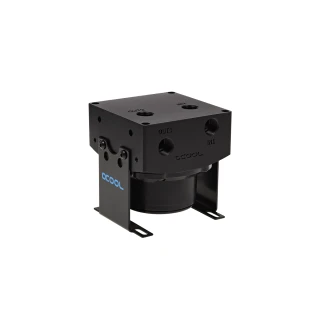

                Alphacool VPP655 - IG1/4" inkl. Eisdecke D5 - Acetal V.3 przechowalnia

                  Dostępny

                  Dostępna ilość: 2

                  Alphacool VPP655 - IG1/4" inkl. Eisdecke D5 - Acetal V.3

                  434,90 zł

                  Phobya DC12-220 12V przechowalnia

                    Czas realizacji orientacyjnie 5 dni roboczych

                    Phobya DC12-220 12V

                    221,90 zł

                    Aquacomputer D5 NEXT przechowalnia

                      Dostępny

                      Dostępna ilość: 3

                      Aquacomputer D5 NEXT

                      559,90 zł

                      Alphacool Eisfach  - Single Laing D5 incl. Alphacool ice pump VPP Apex przechowalnia

                        Czas realizacji orientacyjnie 5 dni roboczych

                        Alphacool Eisfach - Single Laing D5 incl. Alphacool ice pump VPP Apex

                        399,90 zł

                        Aquacomputer ULTITUBE D5 50 PRO reservoir with D5 NEXT pump przechowalnia

                          Oczekujemy na dostawę

                          Aquacomputer ULTITUBE D5 50 PRO reservoir with D5 NEXT pump

                          992,90 zł

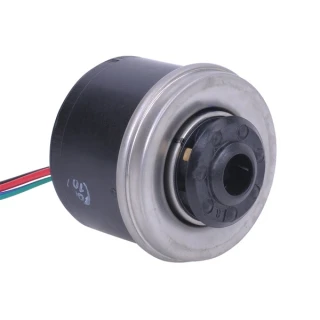

                          Alphacool VPP655 - PWM - Single Edition przechowalnia
