Alphacool Eiswolf 2 AIO - 360mm RTX 4080 Reference Design with Backplate
- Producent: Alphacool
- Kod producenta: 14484
- Kod EAN: 4250197144841
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

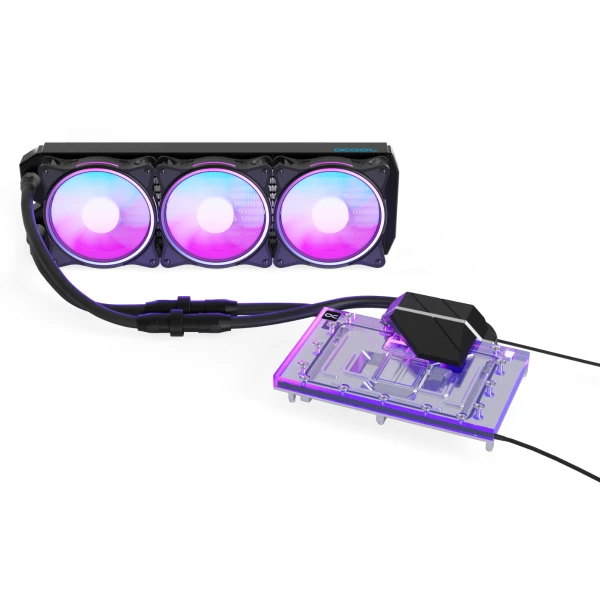

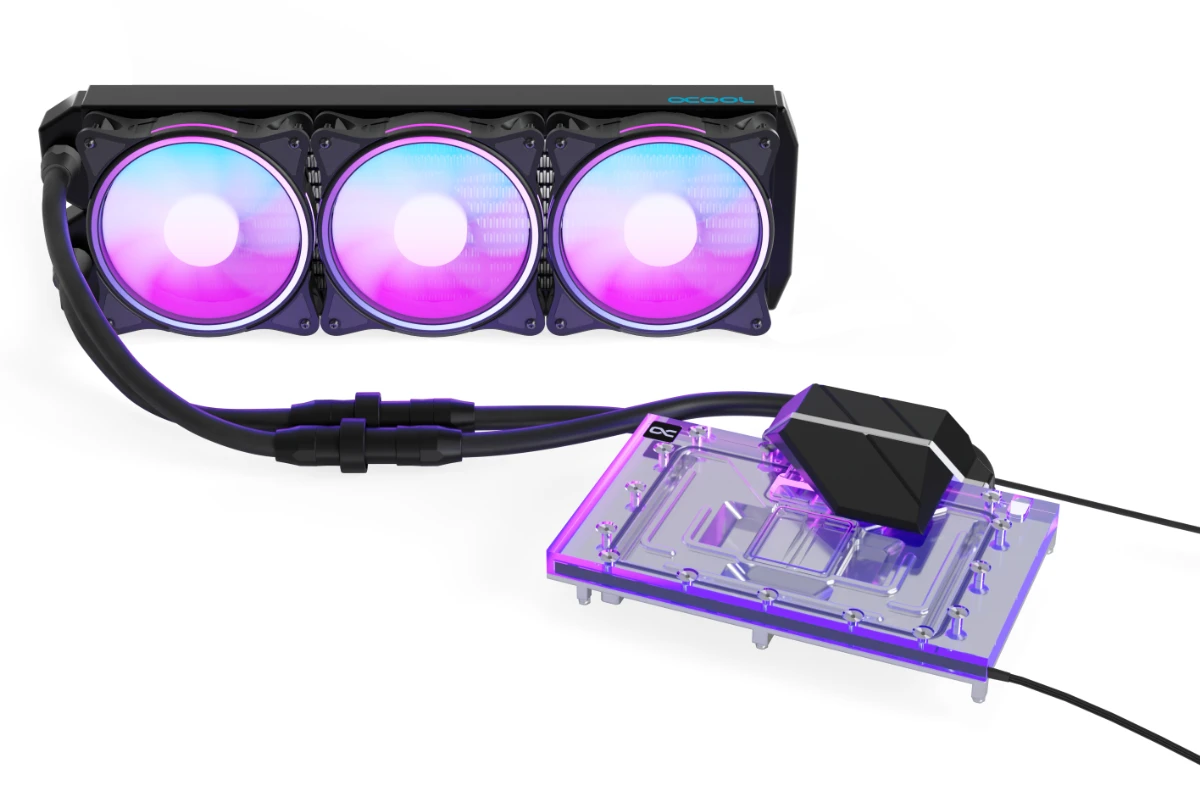

The Alphacool Eiswolf 2 is the first full cover GPU AIO waterblock from Alphacool. It is based on the Alphacool GPX Eisblock Aurora GPX water block, a pump unit and a 360mm NexXxoS ST30 full copper radiator. The latter is equipped with the Alphacool Aurora Rise Digital RGB fans.
Fullcover Waterblock?

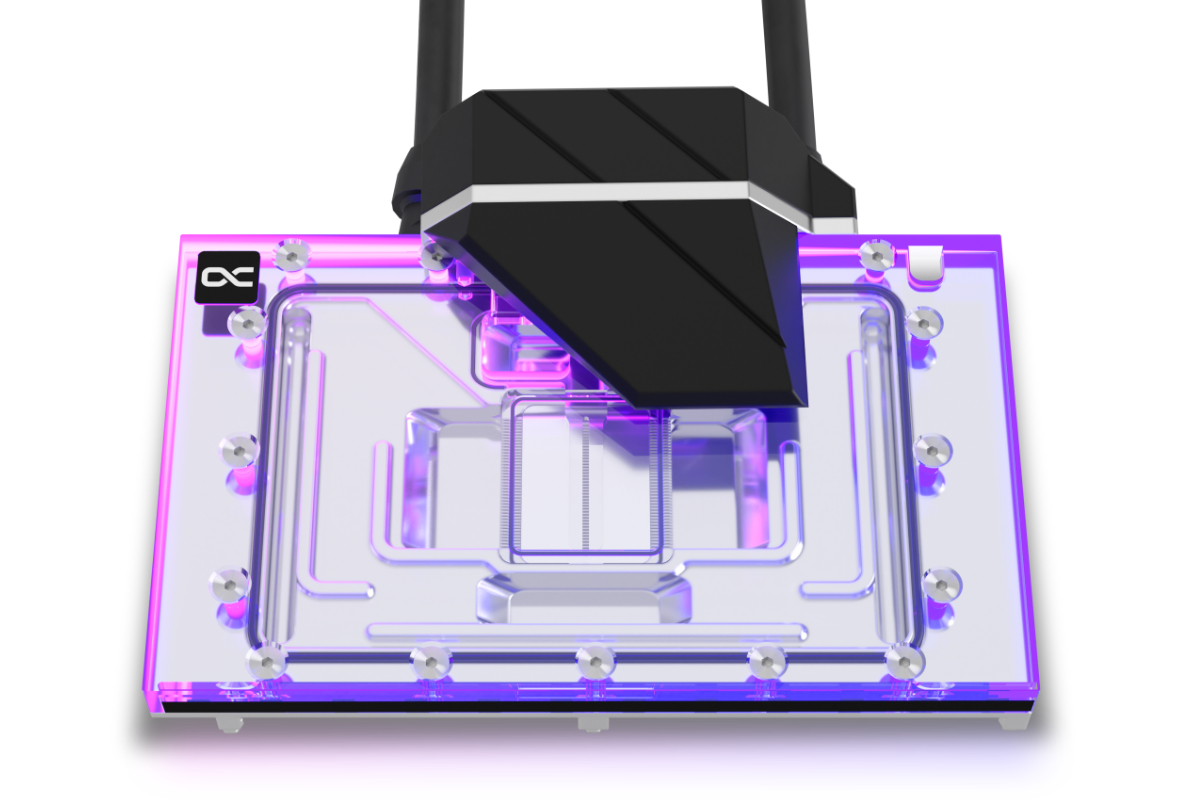

The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler.
Chrome-plated copper

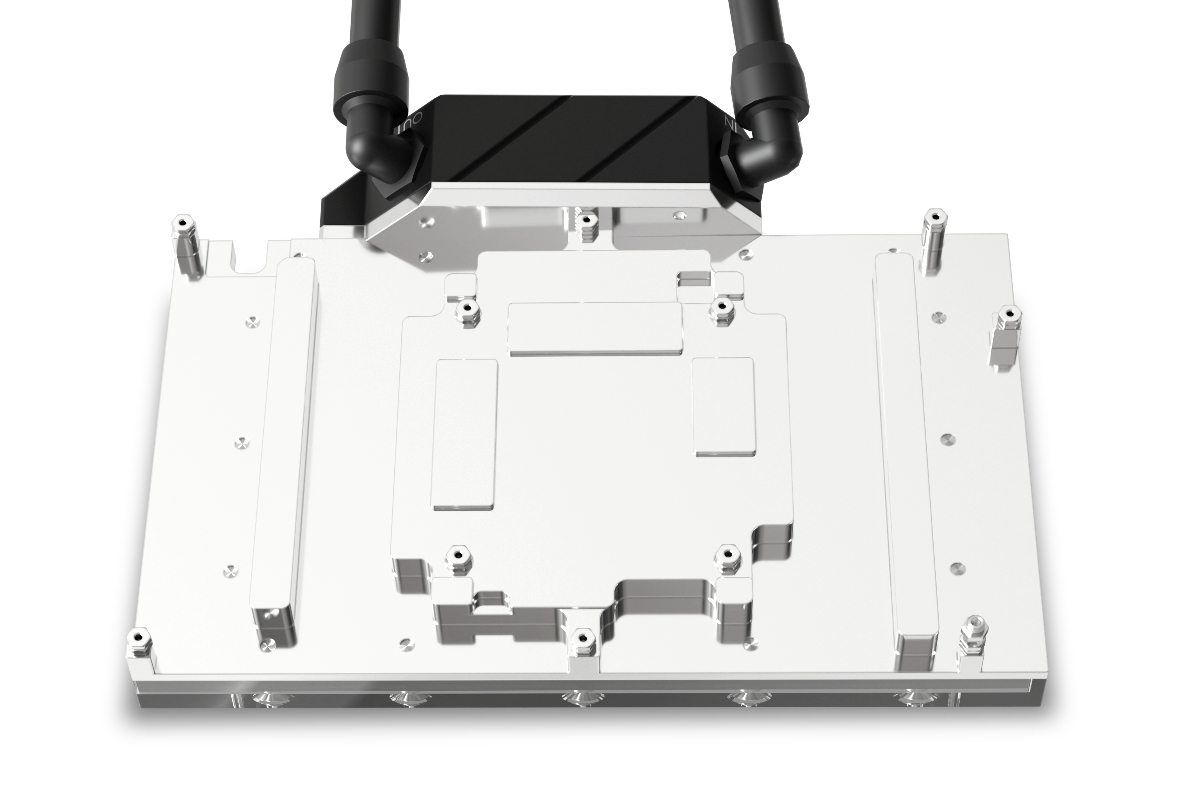

The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.
Pump

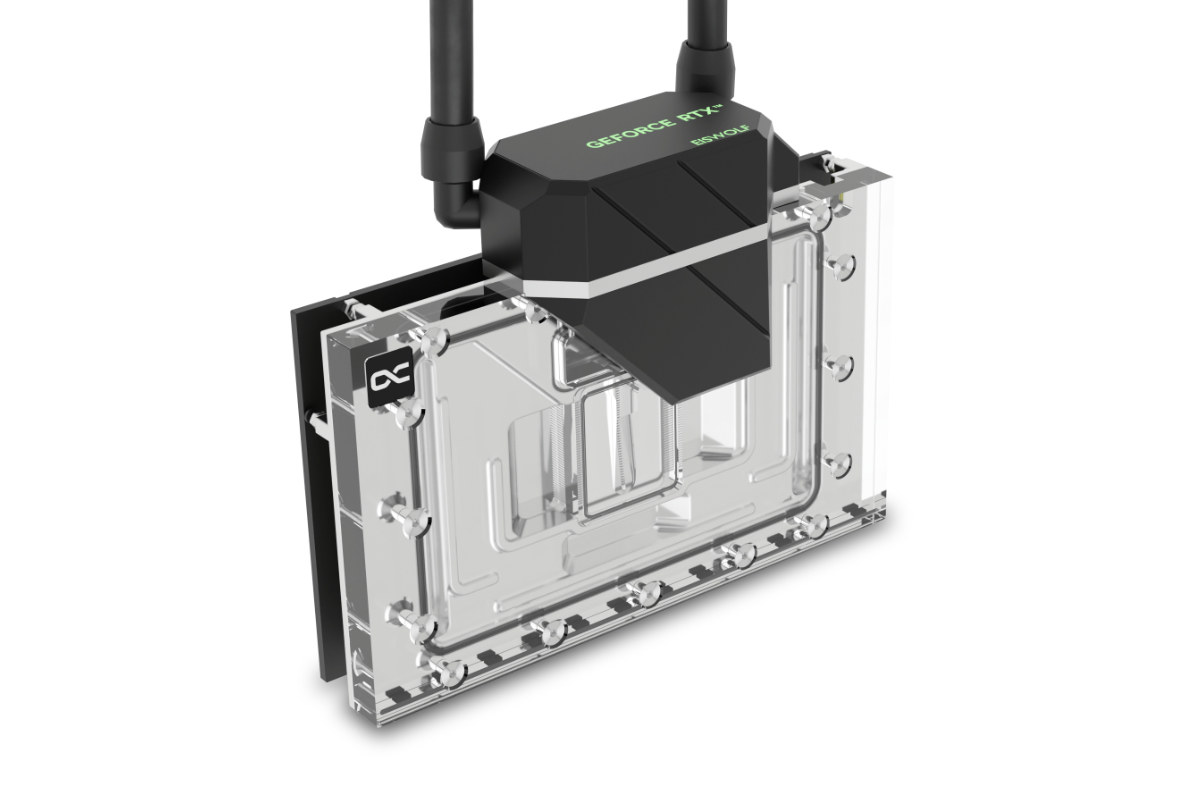

The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal.
Fittings and Tubing
As with all new AIO units, Alphacool uses only TPV hoses from the Enterprise Solution range for (usually reserved for servers and workstations) in the Eiswolf 2. The tubing is made of EPDM/PP and are extremely heat-resistant, durable, and free of plasticizers. All fittings are also based on the Enterprise Solution range and match the TPV hoses perfectly.
Expandability
By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to achieve a larger loop in seconds. Alphacool offers various prefilled components with which the loop can be easily extended. For safety reasons, the quick-release fasteners are firmly screwed together and not just plugged together.
Lighting and fans

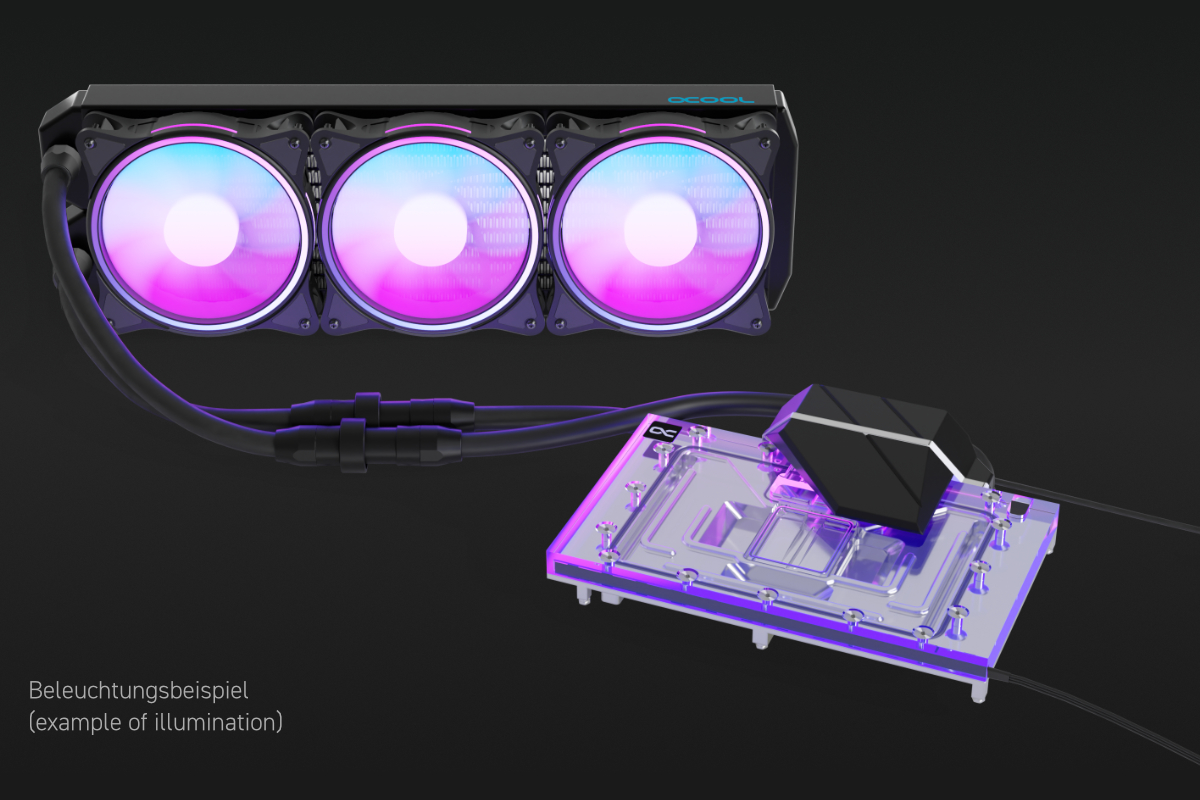

The Eiswolf 2 cooler has a digital RGB LED lighting, also called addressable RGB LEDs. They run along the entire back of the graphics card cooler and provide complete illumination of the water cooler. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The fan used is the Aurora Rise with 120mm. Due to the special blade design, the fan is extremely quiet and the addressable RGB LEDs provide brilliant illumination. The Alphacool Aurora Rise fan convinces with a max. static pressure of 3.17mm/H2O and offers a max. air flow of 119.8m3/h. The PWM control allows the fan to be controlled over a wide speed range. In addition, it offers a zero control. It can therefore be regulated down to 0 rpm and then starts with approx. 350 rpm.
NexXxoS Radiator

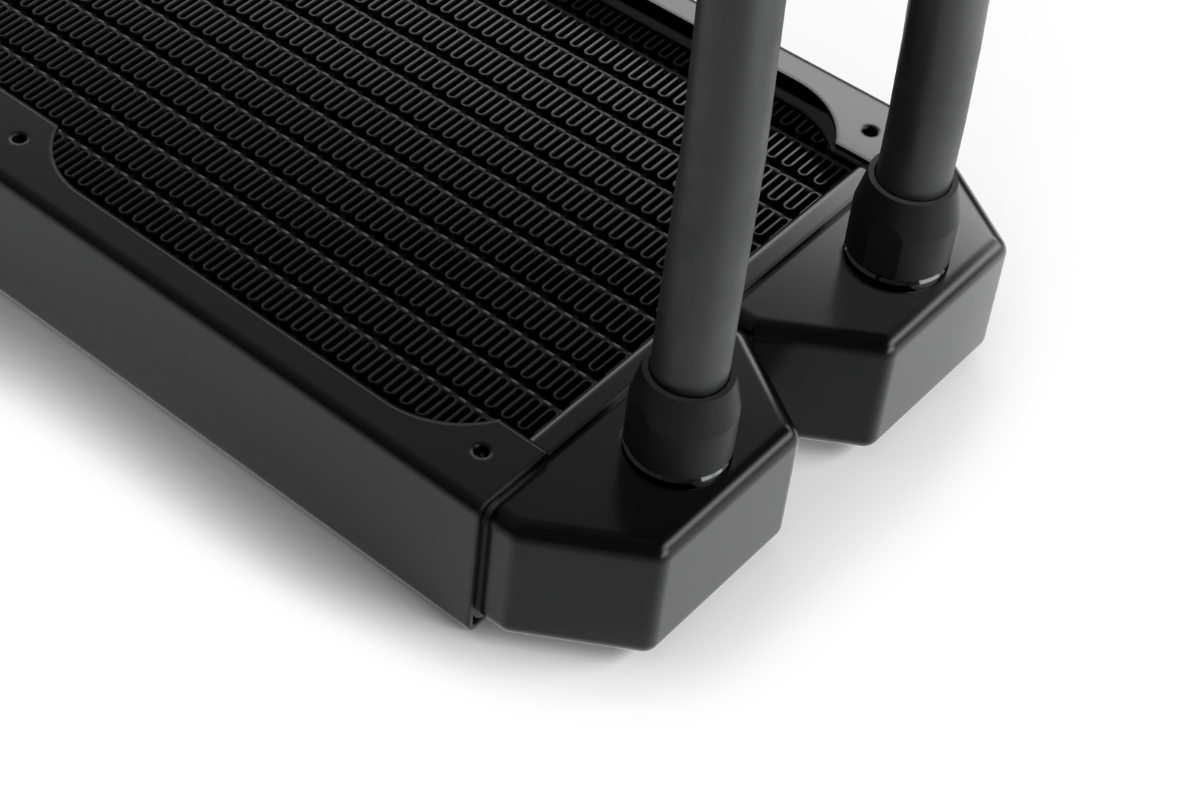

As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success.
The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop.
Technical note!
Due to long storage times and various transport routes, the liquid in the Eiswolf 2 AIO remains still for a long time. The ingredients of the liquid can therefore deposit and lead to a brownish discoloration. As soon as the pump starts operating, the ingredients mix again and the liquid should regain an approximately clear color. This is not a reason for complaint as neither the performance nor the function of the AIO are restricted by this. If the discolouration of the cooling liquid does not disappear after the AIO has been put into operation, please contact our support team via E-Mail (info@alphacool.com). You will receive quick and uncomplicated help there.
Compatibility:
Attention! For PNY GeForce RTX 4080 the rear part of the PCB is not covered. This has no negative effect on the cooling performance
- Inno3D GeForce RTX 4080 iCHILL X3, 16GB GDDR6X (C40803-166XX-187049H)
- Inno3D GeForce RTX 4080 X3 OC, 16GB GDDR6X
- Inno3D GeForce RTX 4080 X3, 16GB GDDR6X
- Inno3D GeForce RTX 4080 SUPER iCHILL Black, 16GB GDDR6X (C408SB-166XX-18700006)
- Inno3D GeForce RTX 4080 SUPER iCHILL Frostbite, 16GB GDDR6X (C408S-166XX-1870FB)
- Inno3D GeForce RTX 4080 SUPER iCHILL X3, 16GB GDDR6X (C408S3-166XX-187049H)
- Inno3D GeForce RTX 4080 SUPER X3 OC, 16GB GDDR6X (N408S3-166XX-187049N)
Fullcover Waterblock?
The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler.
Chrome-plated copper
The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.
Pump
The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal.
Fittings and Tubing
As with all new AIO units, Alphacool uses only TPV hoses from the Enterprise Solution range for (usually reserved for servers and workstations) in the Eiswolf 2. The tubing is made of EPDM/PP and are extremely heat-resistant, durable, and free of plasticizers. All fittings are also based on the Enterprise Solution range and match the TPV hoses perfectly.
Expandability
By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to achieve a larger loop in seconds. Alphacool offers various prefilled components with which the loop can be easily extended. For safety reasons, the quick-release fasteners are firmly screwed together and not just plugged together.
Lighting and fans
The Eiswolf 2 cooler has a digital RGB LED lighting, also called addressable RGB LEDs. They run along the entire back of the graphics card cooler and provide complete illumination of the water cooler. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The fan used is the Aurora Rise with 120mm. Due to the special blade design, the fan is extremely quiet and the addressable RGB LEDs provide brilliant illumination. The Alphacool Aurora Rise fan convinces with a max. static pressure of 3.17mm/H2O and offers a max. air flow of 119.8m3/h. The PWM control allows the fan to be controlled over a wide speed range. In addition, it offers a zero control. It can therefore be regulated down to 0 rpm and then starts with approx. 350 rpm.
NexXxoS Radiator
As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success.
The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop.
Technical note!
Due to long storage times and various transport routes, the liquid in the Eiswolf 2 AIO remains still for a long time. The ingredients of the liquid can therefore deposit and lead to a brownish discoloration. As soon as the pump starts operating, the ingredients mix again and the liquid should regain an approximately clear color. This is not a reason for complaint as neither the performance nor the function of the AIO are restricted by this. If the discolouration of the cooling liquid does not disappear after the AIO has been put into operation, please contact our support team via E-Mail (info@alphacool.com). You will receive quick and uncomplicated help there.
Compatibility:
Attention! For PNY GeForce RTX 4080 the rear part of the PCB is not covered. This has no negative effect on the cooling performance
- Inno3D GeForce RTX 4080 iCHILL X3, 16GB GDDR6X (C40803-166XX-187049H)
- Inno3D GeForce RTX 4080 X3 OC, 16GB GDDR6X
- Inno3D GeForce RTX 4080 X3, 16GB GDDR6X
- Inno3D GeForce RTX 4080 SUPER iCHILL Black, 16GB GDDR6X (C408SB-166XX-18700006)
- Inno3D GeForce RTX 4080 SUPER iCHILL Frostbite, 16GB GDDR6X (C408S-166XX-1870FB)
- Inno3D GeForce RTX 4080 SUPER iCHILL X3, 16GB GDDR6X (C408S3-166XX-187049H)
- Inno3D GeForce RTX 4080 SUPER X3 OC, 16GB GDDR6X (N408S3-166XX-187049N)
| Technical data radiator | |
| Dimensions (L x W x H) | 395 x 124 x 30mm (+/- 3%) |
| Material cooling fins, chambers & channels | Copper |
| Material threads | Brass |
| Material outer housing | stainless steel |
| G 1/4“ threads | 2 x for tubes (+ 1x Fillport G1/4“) |
| For fan size | 120 mm |
| Options for fan assembly | 3 x one-sided / 6 x both-sided |
| Technical data cooler and pump | |
| Dimensions (L x W x H) | 198,41 x 154,19 x 48,04mm |
| Material cooler bottom | Chrome plated copper |
| Material cooler top | acrylic |
| Threads | 2 x G1/4“ |
| Pump type | DC-LT 2 |
| Pump speed | 2600 rpm (+/- 10%) |
| Head of delivery | 1 m |
| Maximum flow rate | 72 L/h |
| Voltage | 6-13.5V DC |
| Power consumption | 3.2W |
| MTBF | 50.000 h |
| Technical data liquid | |
| Color | clear |
| Ingredient 1 | Destilled water (CAS-number 7732-18-5) |
| Ingredient 2 | Glysantin (CAS-number 1017-21-1) |
| Working temperatures | -15 C° / +90 °C |
| Technical data quick fasteners | |
| Dimensions (L x D) | 95 x 27mm |
| Material | Nylon |
| For tube size | 12,7 / 7,6mm |
| Color | Black |
| Technical data fittings | |
| Dimensions (L x D) straight fitting | 24 x 18mm |
| Quantity straight fittings | 2x |
| Dimensions (L x B x H) 90° fitting | 35 x 27 x 17mm |
| Quantity 90° fittings | 2x |
| For tube size | 12,7 / 7,6mm |
| Material fittings | Brass |
| Technical data tube | |
| Length | 50cm |
| Material tube | TPV (EPDM/PP) |
| Color | Matt black |
| Tube size | 12,7 / 7,6mm |
| Hardness grade | 35 Shore-A to 50 Shore-D |
| Working temperature | -50 to +155 °C |
| Technical data fan | |
| Speed | 0 - 2500 RPM |
| Static pressure | 3,17 mm H2O |
| Air flow rate | 119,8 m³/h |
| Bearings | Sleeve bearing |
| Fan connector | 4-Pin PWM |
| Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
| Dimensions (L x W x H) | 120 x 120 x 25mm |
| Net weight | 187g |
| Max working temperature | 60°C |
