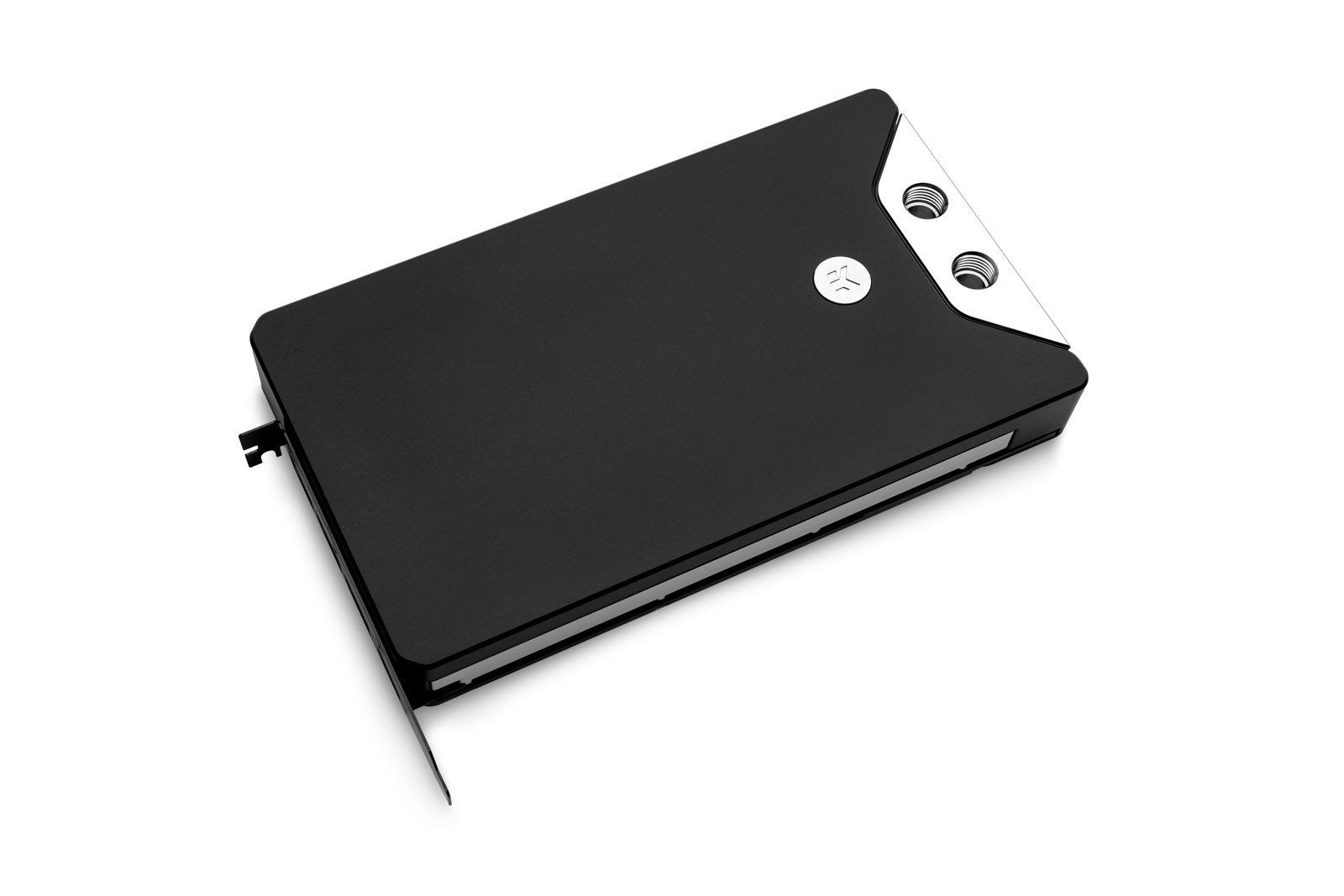

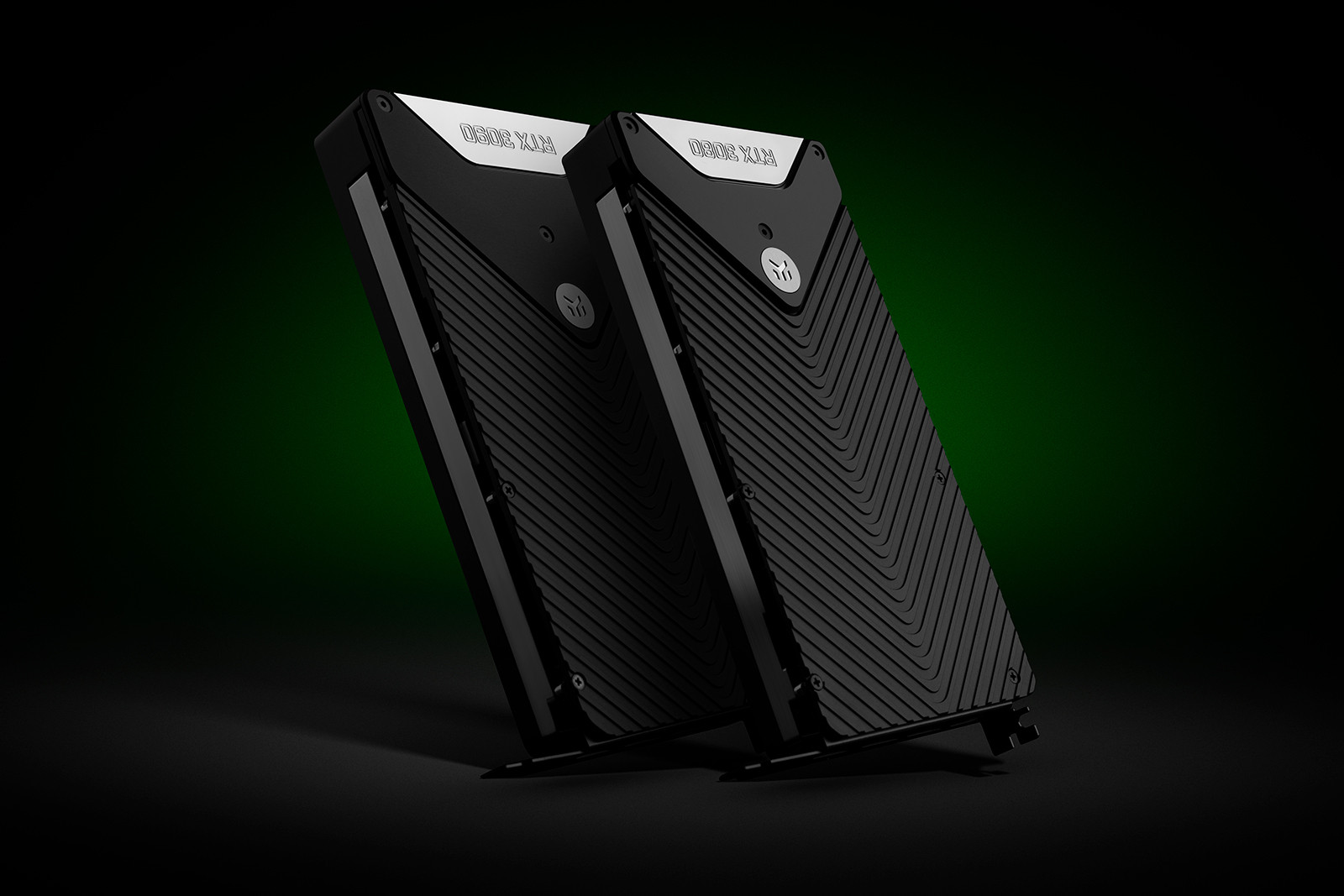

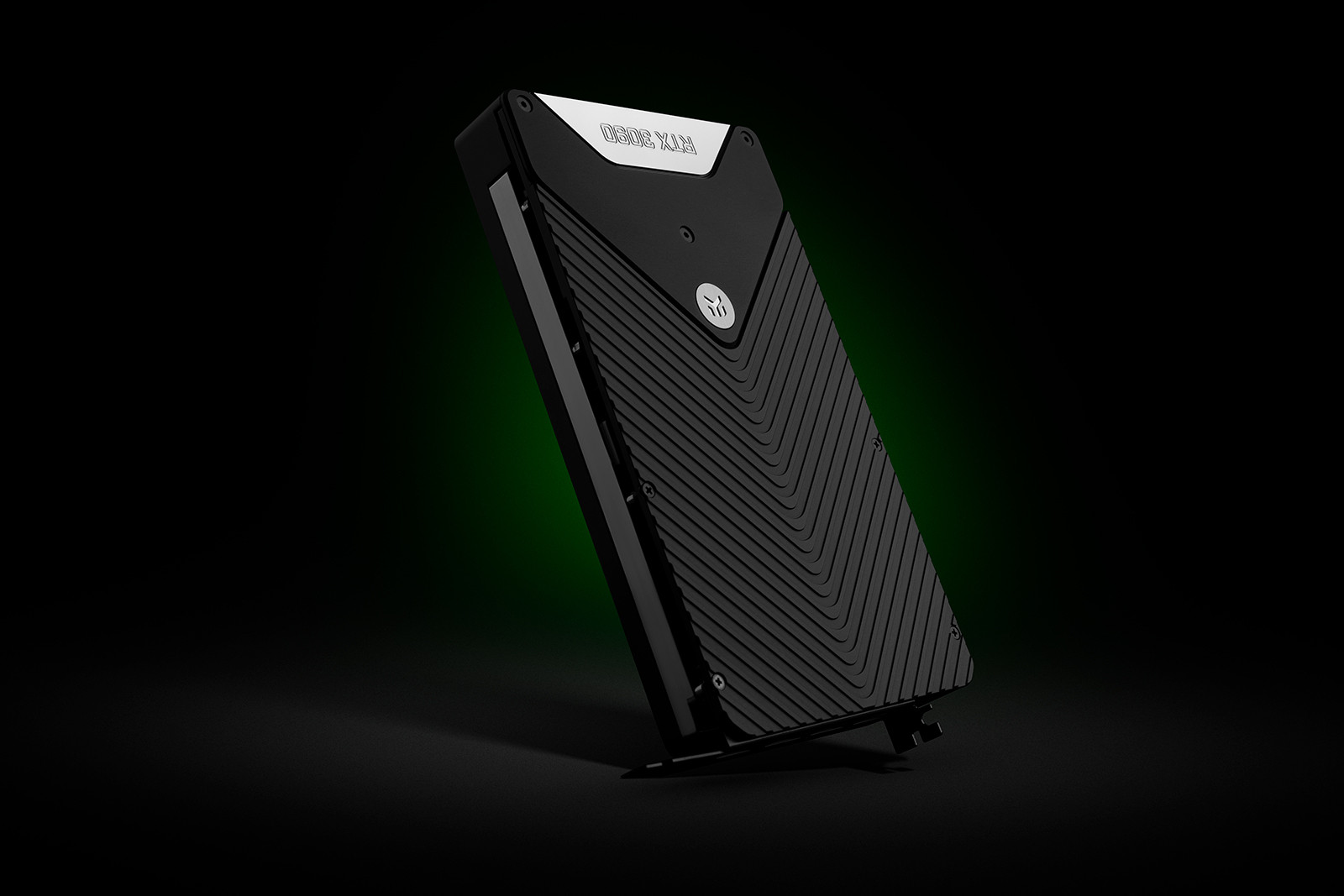

EK Water Blocks EK-Quantum Vector FE RTX 3090 Full Metal - Black SE

This is a Special Edition Black EK water block enclosure engineered for the latest NVIDIA® GeForce® RTX ™ 3090 Founders Edition graphics cards. The cooling engine is the evolution of the 2nd generation EK® Quantum Vector GPU water blocks. This water block enclosure is only compatible with GeForce® RTX™ 3090 Founders Edition graphics cards.

Special Edition Full Metal EK Water Block for Nvidia FE GeForce RTX 3090 

The EK-Quantum Vector FE RTX 3090 D-RGB water block enclosure is the most complex GPU cooling solution developed by EK to date. Aside from the small form factor and unique shape of the RTX 3090 Founders Edition PCB, EK has built a hybrid cooling solution for the backplate that is so far unique to the EK-Quantum Vector FE RTX 3090 water blocks and their backplates.

The water block is purpose-designed with an extremely thick copper base for high-performance, allowing it to clear all components of the densely-packed PCB and adding more heat capacity in the process. The cooling engine used in this water block is the largest we've built to date, having roughly 30% more surface area than the rest of the Vector water blocks. 

Build Quality

Like the Magnitude CPU water block, the entirety of this water block is CNC-machined without mass-production techniques. The block's base is milled out of a 12 mm thick piece of pure electrolytic copper sourced from Europe, which is then nickel-plated, while its top is CNC-machined out of brass that is encased by an anodized aluminum outer shell.

The external enclosure, which is not in any contact with the coolant, is machined out of a 20 mm thick solid piece of aluminum, which is afterward anodized into a black color. The included single-slot I/O shield is supplied with special screws for attaching it to the aluminum enclosure in order to even out the entire water block's weight distribution. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.

Cooling Engine

This Special Edition Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as cooling liquid is channeled right over these critical areas. The water block is in contact with MOSFETs and chokes to maximize cooling and minimize the chances of unwanted coil whine. The flow paths are optimized to reduce hydrodynamic instabilities and vortexing (dead spots) inside of them.

The integrated Open Split-Flow cooling engine design proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings and still achieve top performance.

The jet plate and fin structure geometry are optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.  Fin array is populated by 31 microfins with 0.6 mm wide microchannels that provide exceptional cooling performance without unnecessary flow restrictions or clogging hazards.

Hybrid Backplate

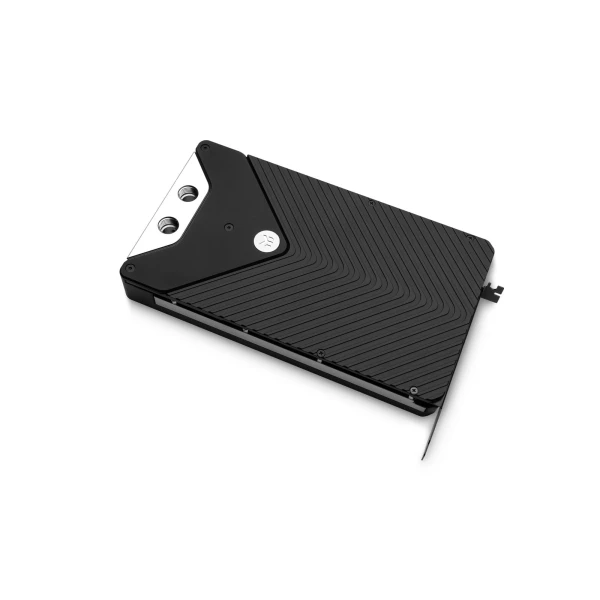

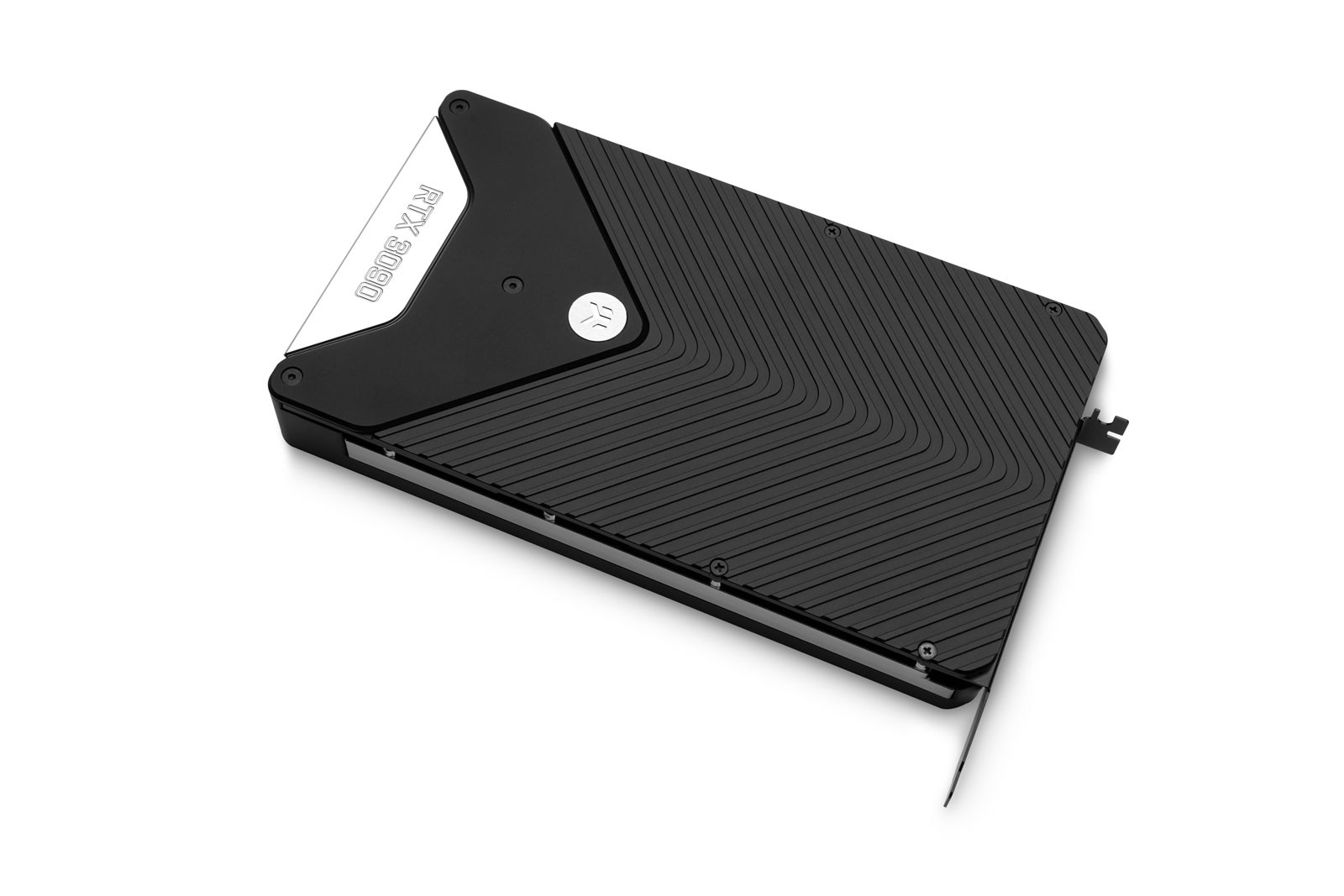

This water block comes with an included backplate that makes sure the entire graphics card is enclosed and not at all visible. The aluminum CNC-machined backplate has a ribbed texture in order to increase surface area for additional passive cooling power. The "active" cooling part is achieved through a section of the backplate contacting the coldplate, which is then directly cooled by the liquid. The Black variant of this Special Edition water block has a natural anodized aluminum backplate.

Special Nickel-plated Brass Terminal Design

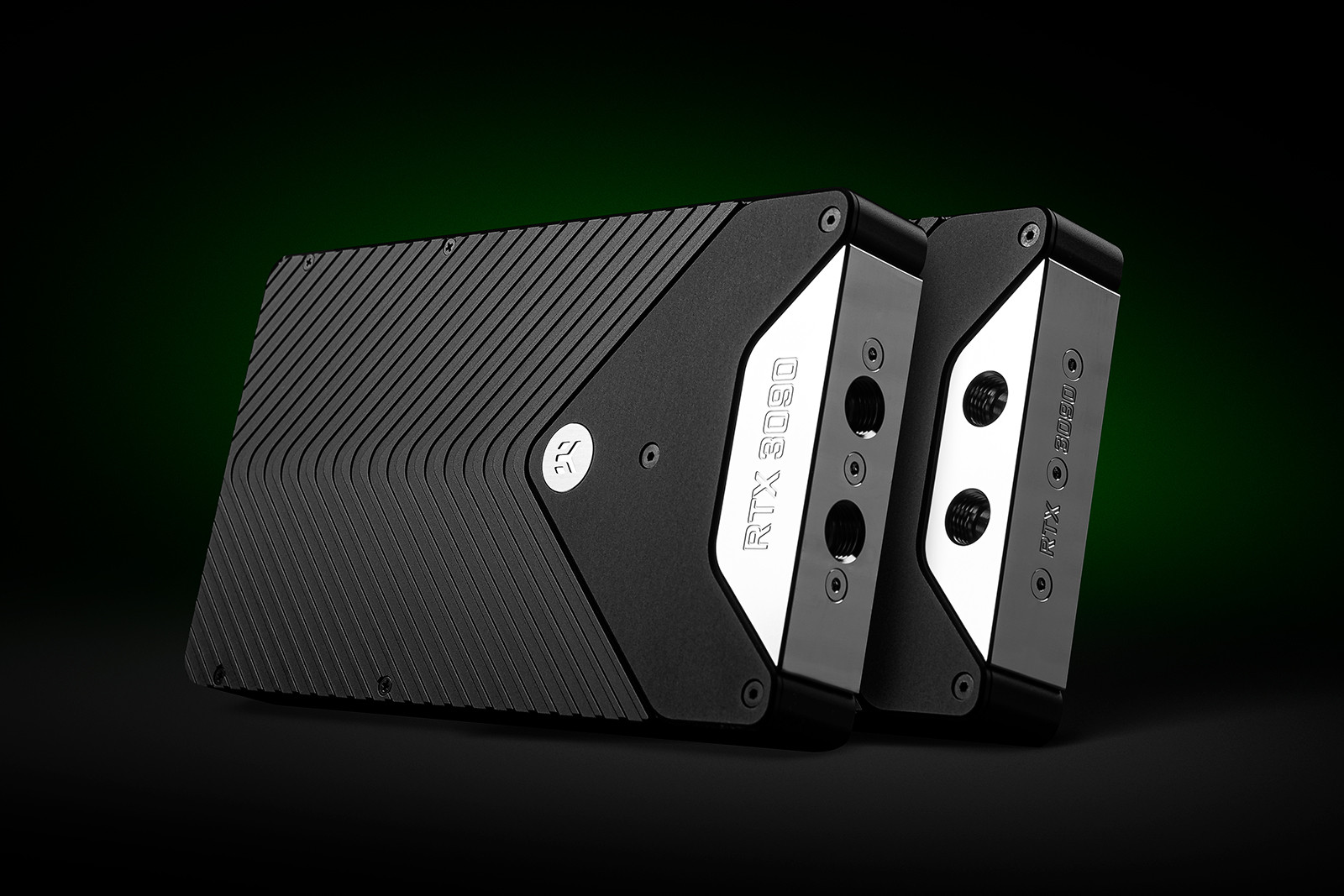

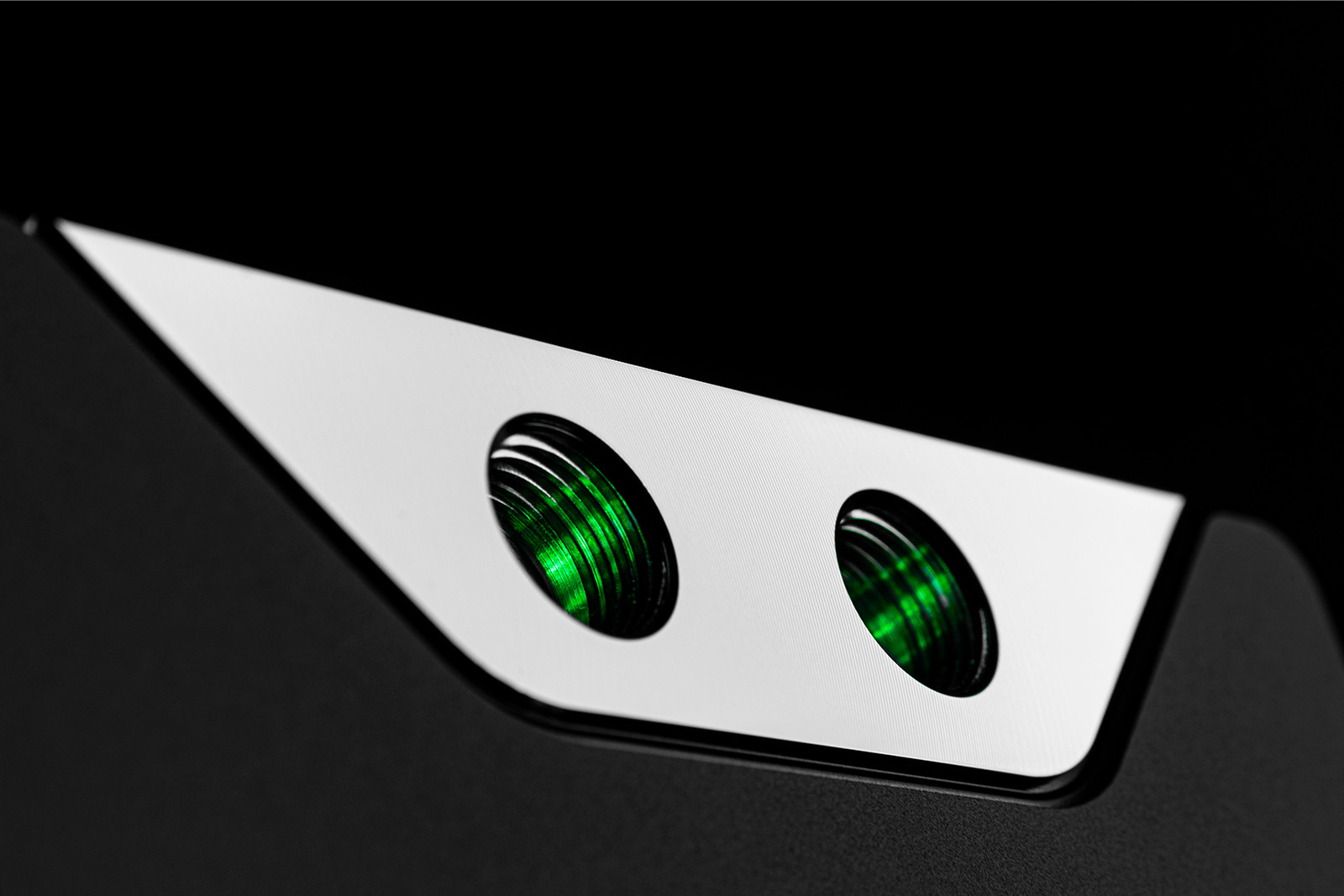

The water block is delivered with a set of nickel-plated brass connection terminals, allowing users to swap them out based on their needs. One terminal has two direct G1/4" ports on the side, while the other one is more conventional, having four G1/4" ports going through the terminal.

The new design allows terminals to be directly attached to the copper cold plate of the GPU water block, making it more rigid and reducing the chances of damage.  The terminal is neatly located between two prongs on the PCB, utilizing minimal space. This kind of design allows for incredible versatility, especially for Small Form Factor builds, and of course, more interesting aesthetics.   

Technical Specification:

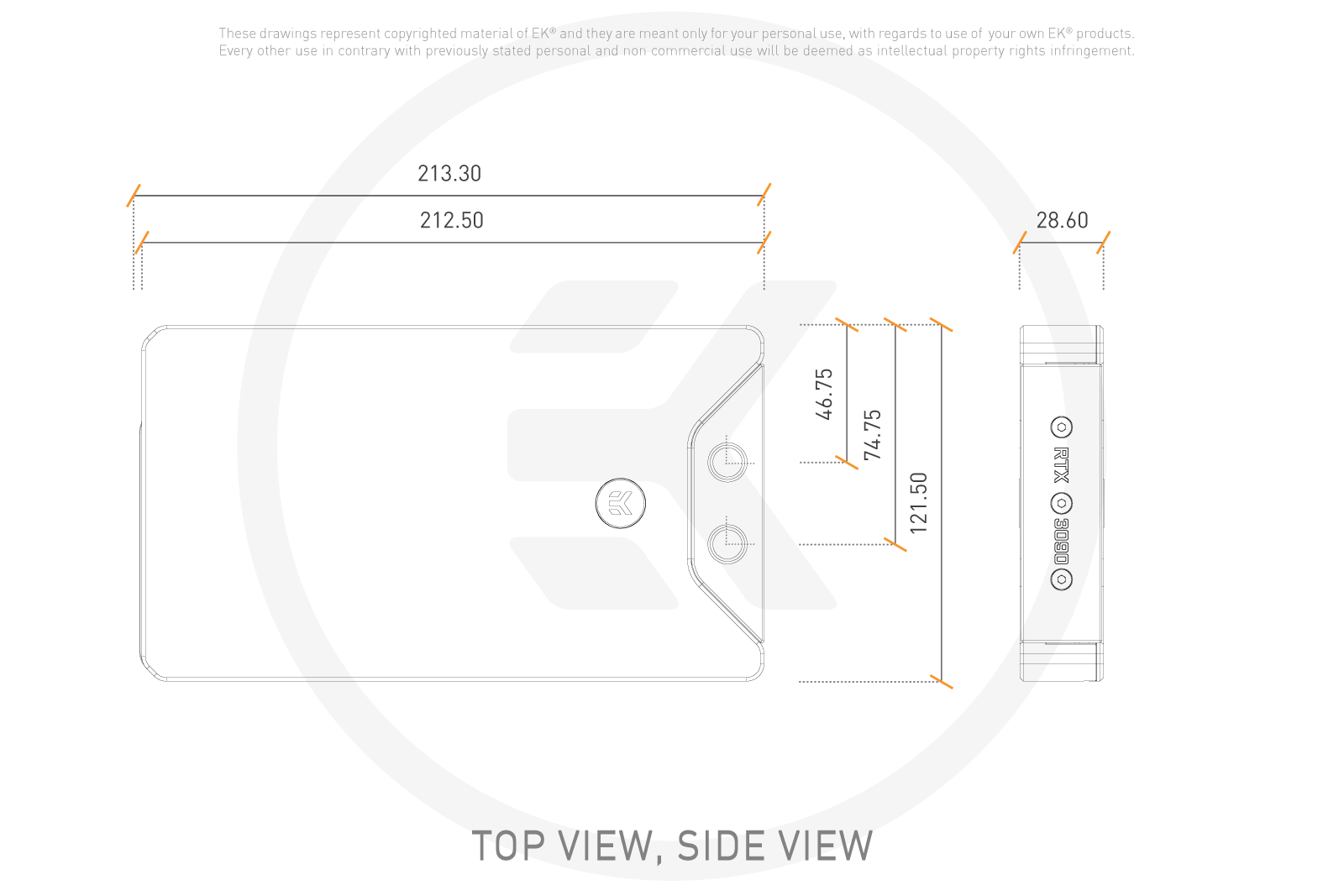

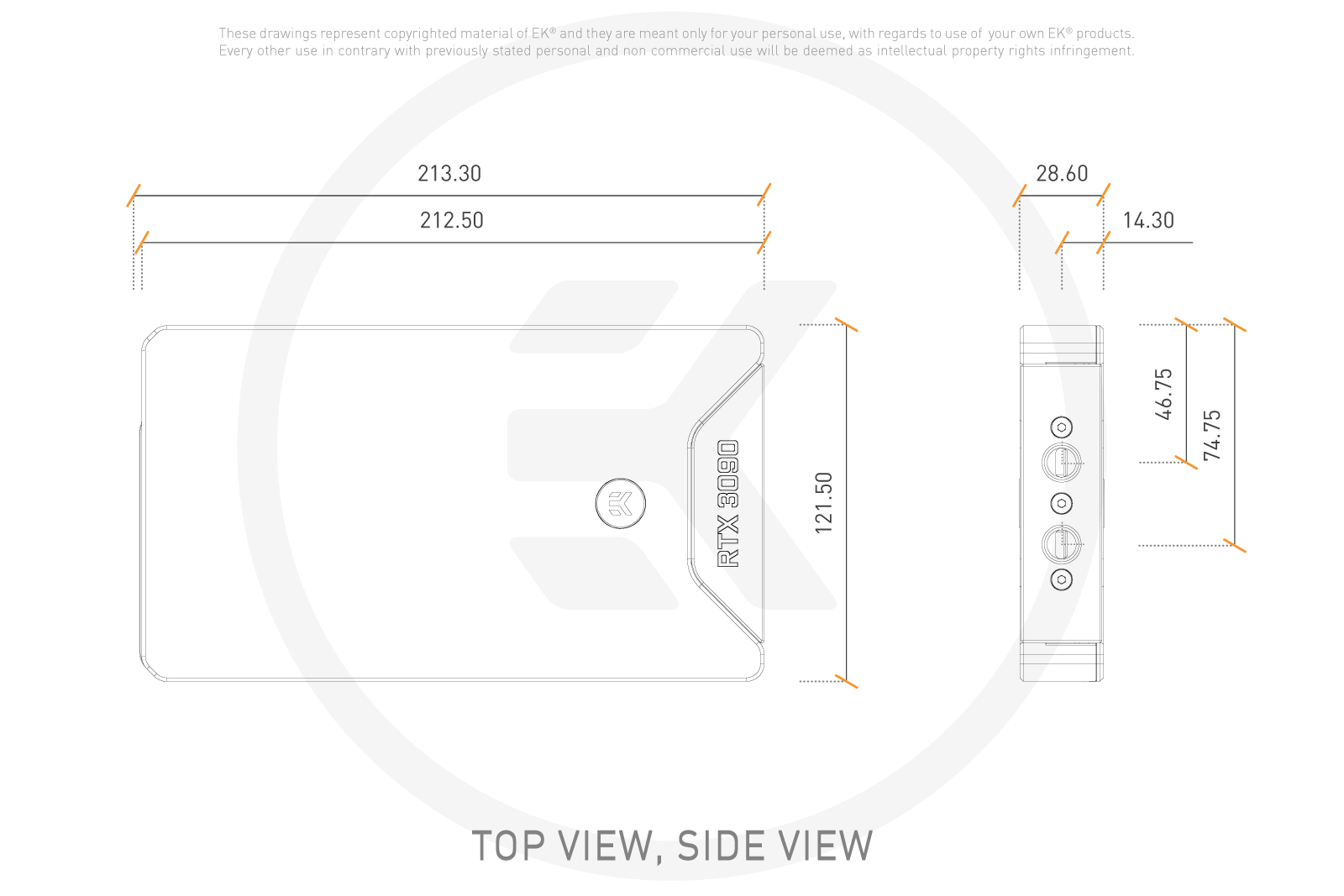

- Dimensions: (LxHxW) - 213x122x29mm

Made in Slovenia - Europe!
